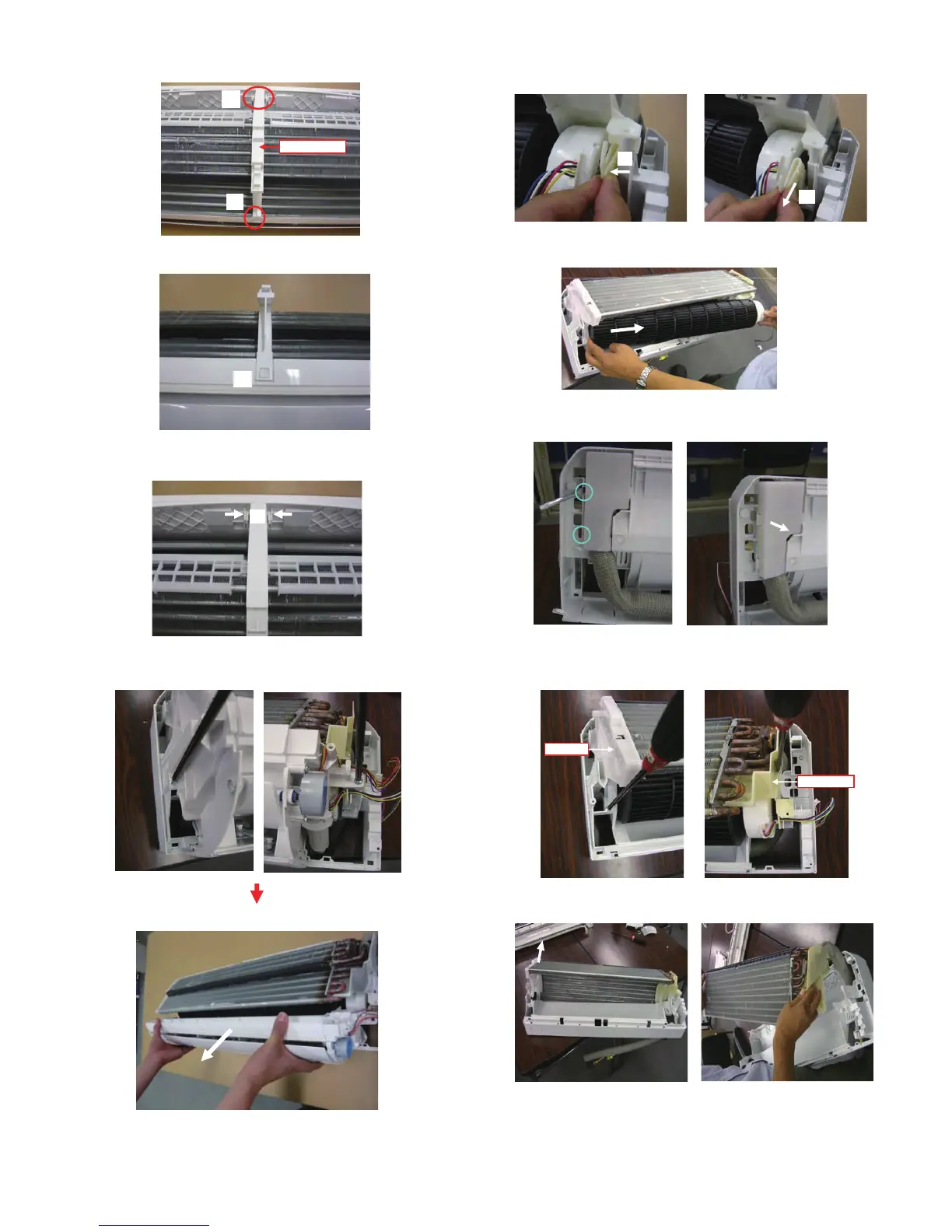

15)Unhook the 2 hooks and remove the filter guide C.
16)Unscrew the 2 screws and remove the drain pan assembly.
17)Unhook of the motor cover.
18)Slide the Cross-flow fan motor to the right and remove it.
19)Remove the pipe holder.
20)Remove the cycle assembly
g
Support the motor with your hand when unhooking the motor cove
r
.
䊶
Insert the (-) screwdriver in the 2 holes to unhook the pipe holde
r
.
a) Remove the 2 screws fixing the cover L and drain cover.
cover L
drain cover
b) Lift the left side of the evaporator and pull out the pipe from the cabinet.
