[3] OUTDOOR UNIT

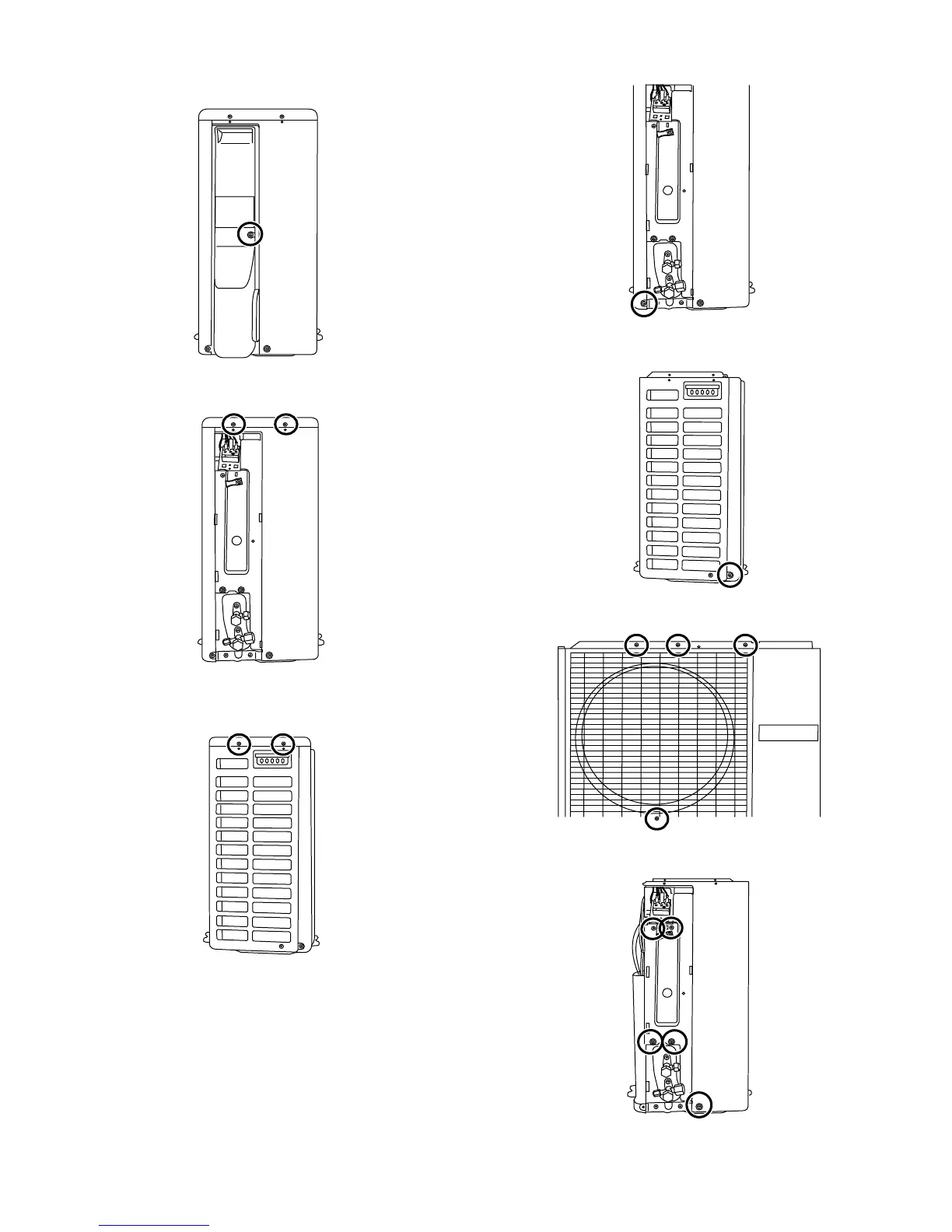

1) Unscrew the screw and remove the control box cover.
2) Unscrew the 2 screws on the right side of the top plate.
3) Unscrew the 2 screws on the left side of the top plate, and remove
the top plate.
4) Unscrew the screw on the right side of the front panel.
5) Unscrew the screw on the left side of the front panel.
6) Unscrew the 4 screws on the front panel, and remove front panel.
7) Unscrew the 5 screws on the side cover R.
