12LRN
5 – 5

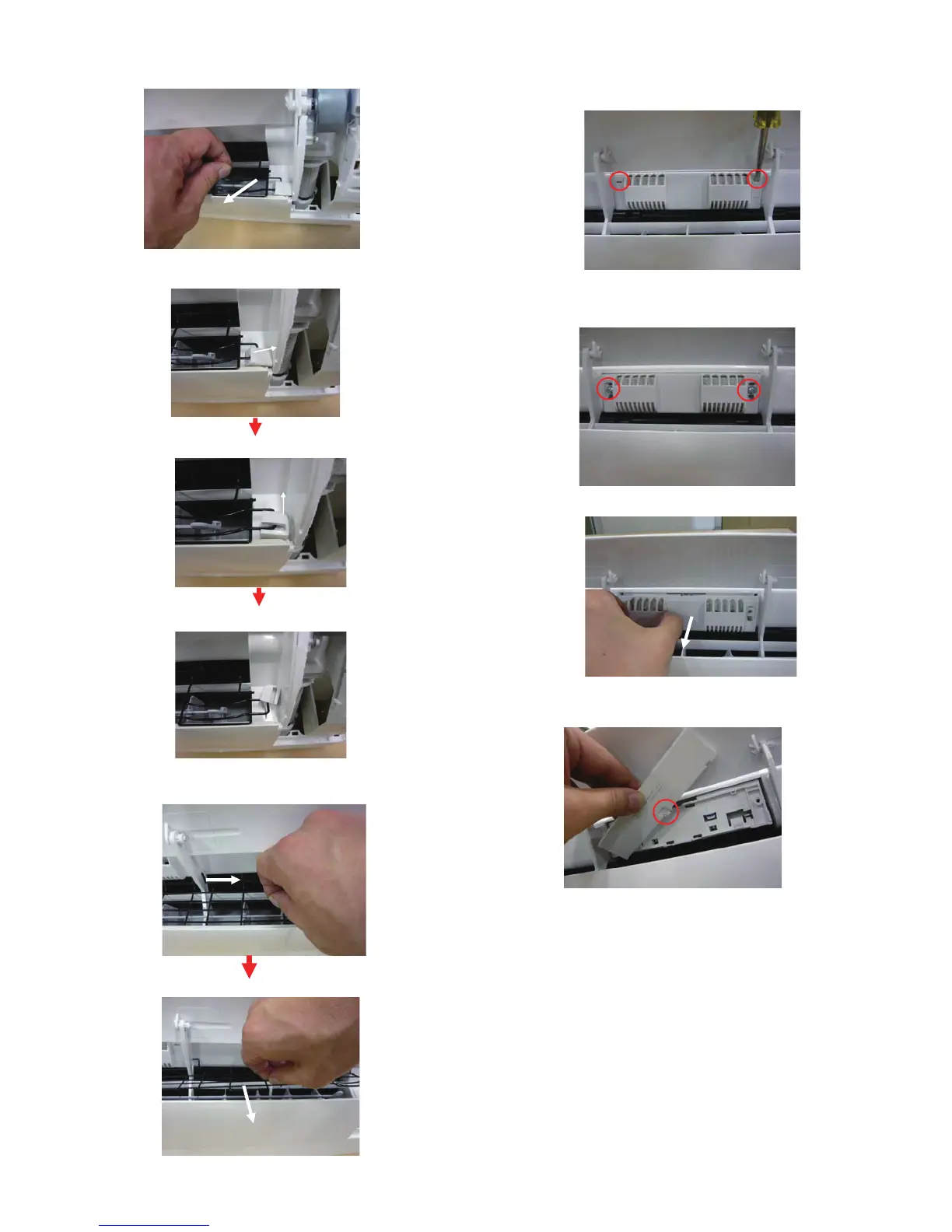

5) Pull the right side of the wire guard R, and unhook the guard holder
R.
6) Rotate the guard holder R in anticlockwise and remove.
7) Slide the wire guard R to the right and remove.
8) Remove the 2 screw covers.
・Insert the (-) screwdriver in the 2 holes.
9) Unscrew the 2 screws.
10)Disconnect the connector, and remove the plasmacluster unit.
To Next Page
