Function and operation
Vent 402 – 6721815546 (2021/03)
18
intermediate mixing valve controlled by a mixing module must be
installed.
7.4 Control with outside temperature sensor and room
temperature sensor
Heat production is controlled via an outside temperature sensor or an
outside temperature sensor in combination with a room temperature
sensor.
7.5 IPI-100
The IPI-100 is used to control and monitor the heat pump via a mobile
device. It is used as an interface between the heating system and a
network (LAN) and enables the SmartGrid function.
The usage of the IPI-100 functions requires an Internet connection and a
router with an available output of RJ45. To enable the system to be
controlled from a mobile device, using the IVT-Anywhere App is
needed.
When the IPI-100 is installed, it must be connected to the Installer
module; The IPI-100 connection cable is pre-installed in the appliance
and pre-connected to the Installer board as shown in fig. 21 and fig 22.
To install the IPI-100, see the IPI-100 accessory’s manual.

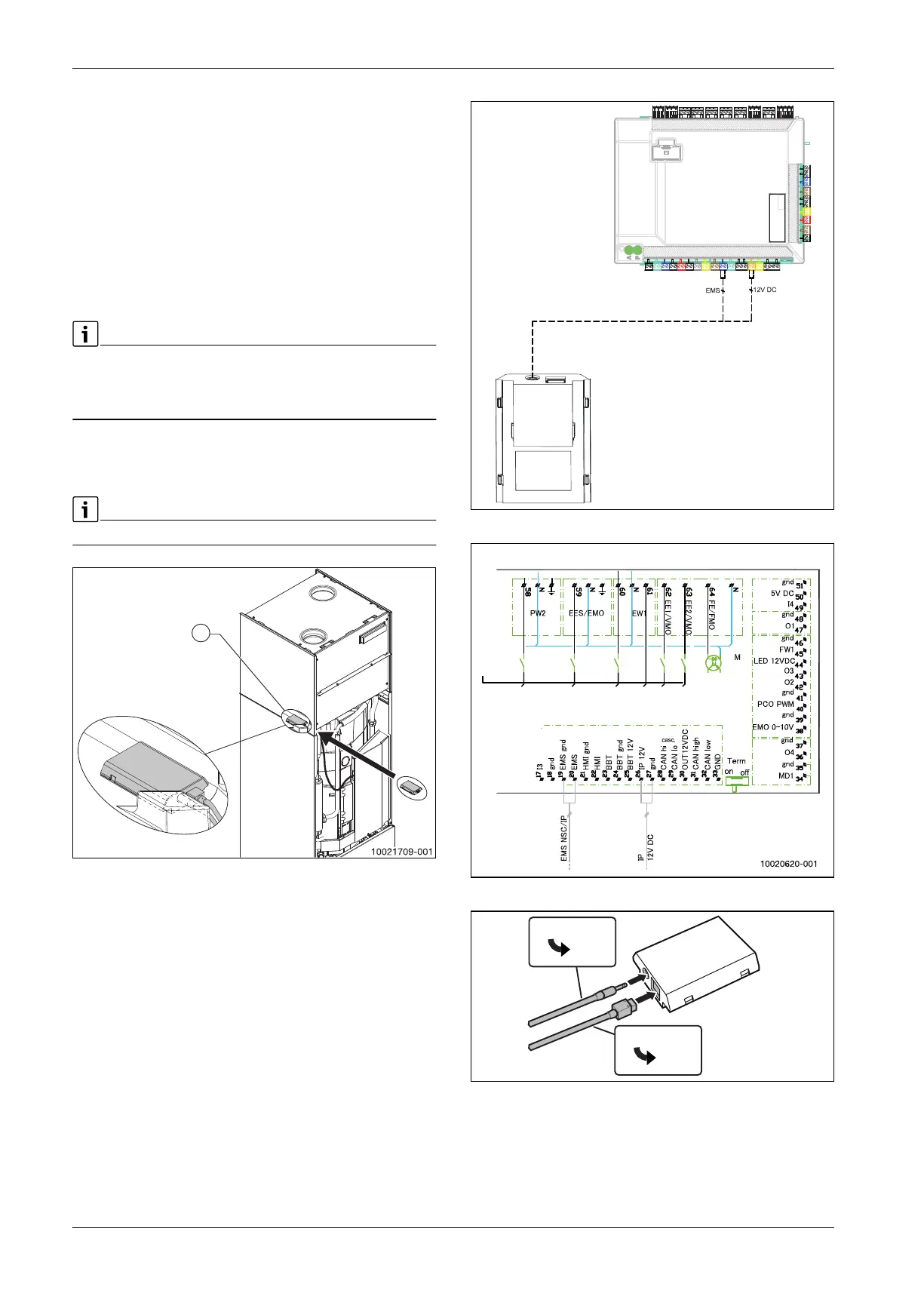

Fig. 21 Positioning of IPI-100
[1] IPI-100 positioning
Fig. 22 Connection of IPI-100 to Installer module
Fig. 23 Connections to Installer module
Fig. 24 IPI-100
[1] EMS connection 3,5 mm
[2] Connection RJ45
7.6 Only DHW mode
If the heat pump has been installed strictly for DHW operation, the flow
and return lines to the heating system must be connected together. Once
1
10021711-001
6 720 817 680-01.1O
RJ45
www
3,5 mm
BUS
