12.11.7 Connection option EMS bus

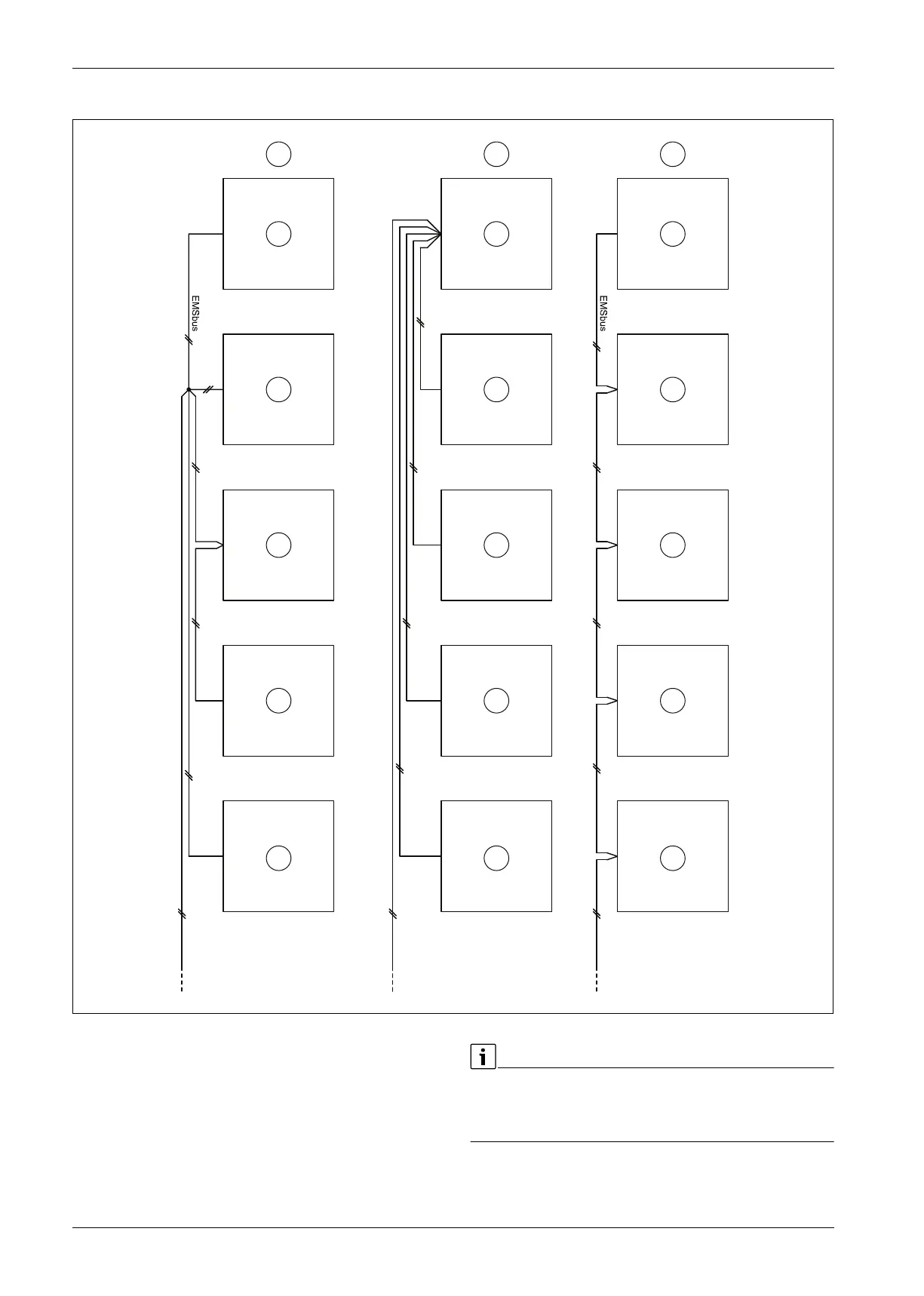

Fig. 51 Connection option EMS bus
[A] Star network and serial connection with external connection box
[B] Star network
[C] Serial connection
[1] Installer module
[2] Accessories modules (e.g. room controller, mixing module)
12.12 IP module
Use of all the functions requires an Internet connection and a router with
an available output of RJ45. This may incur additional costs. To enable
the heat pump to be controlled from a mobile telephone, the app is
needed IVT Anywhere.
The IP module is used to control and monitor the heat pump via a mobile
unit. It is used as an interface between the heating system and a network
(LAN) and enables the SmartGrid function.
