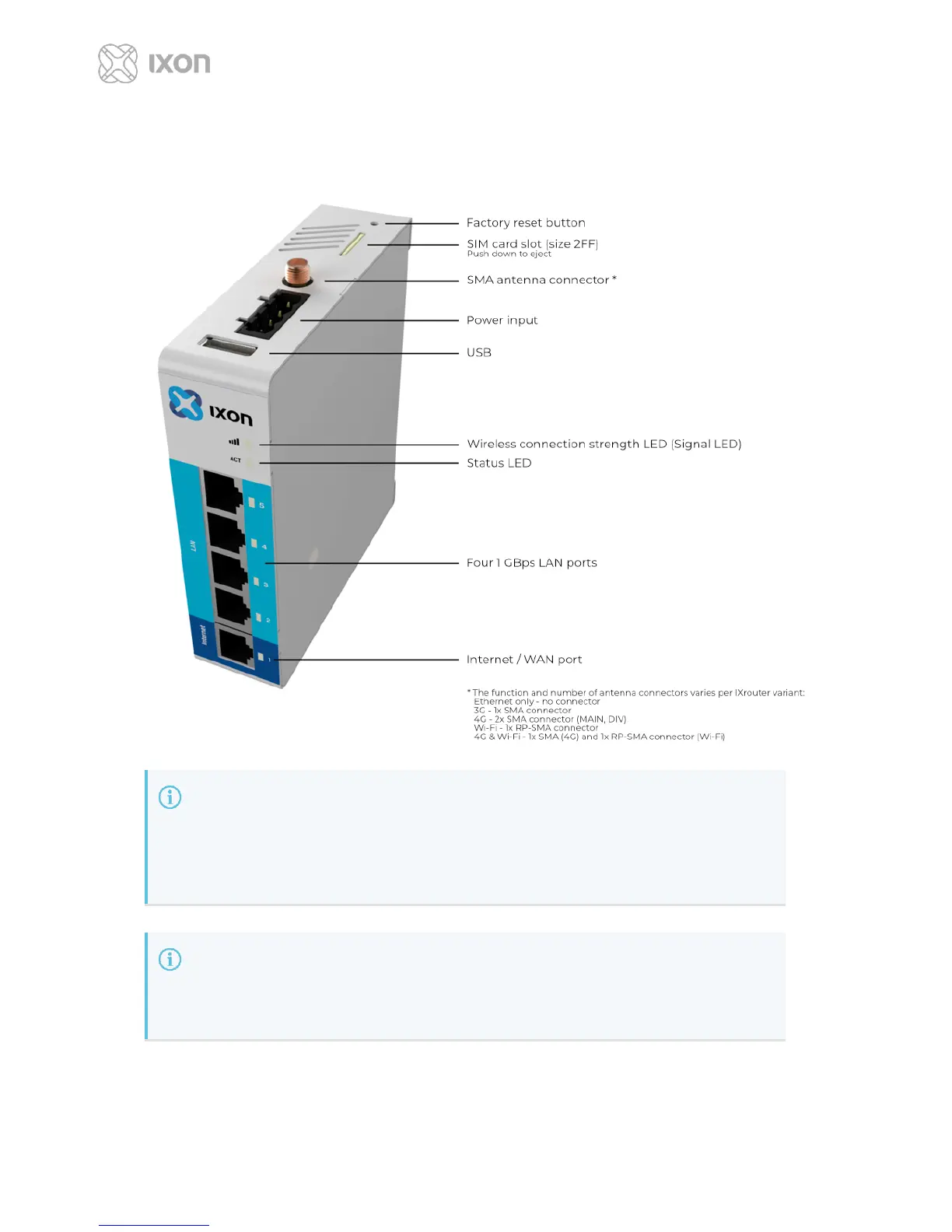

Hardware overview
The IXrouter3 is created with performance and a multitude of hardware capabilities in
mind.
4G SMA connectors
IXrouter3 4G variants have 2 SMA antenna connectors. The one closest to the
power connector is the MAIN. The other connector is the DIV. Always connect
an antenna to the MAIN. Connecting an antenna to the DIV is optional.
4G & Wi-Fi SMA connectors
The 4G & Wi-Fi variant has 2 SMA antenna connectors. The one closest to the
power connector is for 4G. The other connector is for Wi-Fi.
