Programmable Control Panel
18

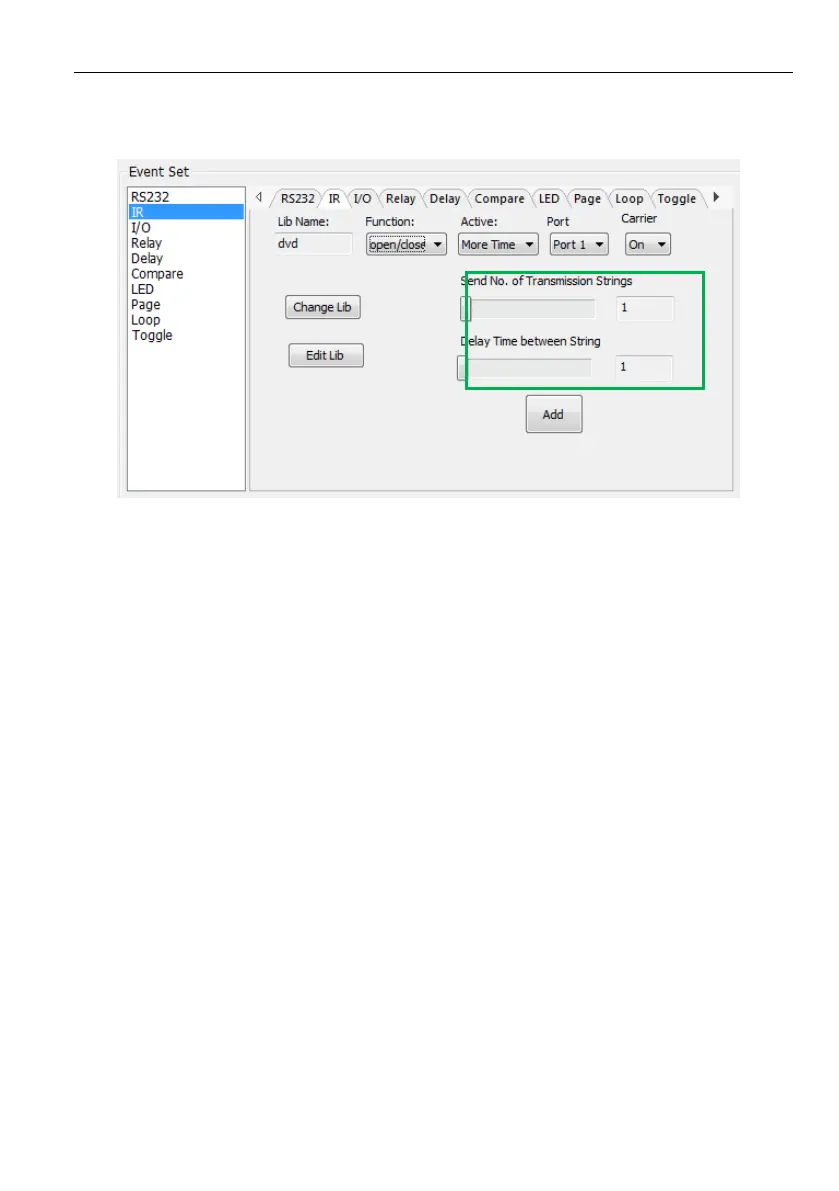

2) There are two send types: send once and send more times. When select “more
times”, the send times and the delay between times can be set. See in picture
below:
3) The send port must be selected as the same as model setting, otherwise the
event cannot be added.
4) The IR can set the carrier on/off, to turn on/turn off the IR sending.
➢ I/O Setting
There is no I/O port in the programmable control panel, so the setting is not
introduced in this manual.
➢ Relay Setting
This item is for the replay ports setting. The setting is as the picture below:
