J-Tech Digital JTECH-P8 - Side Panel; Rear Panel

Programmable Control Panel
4

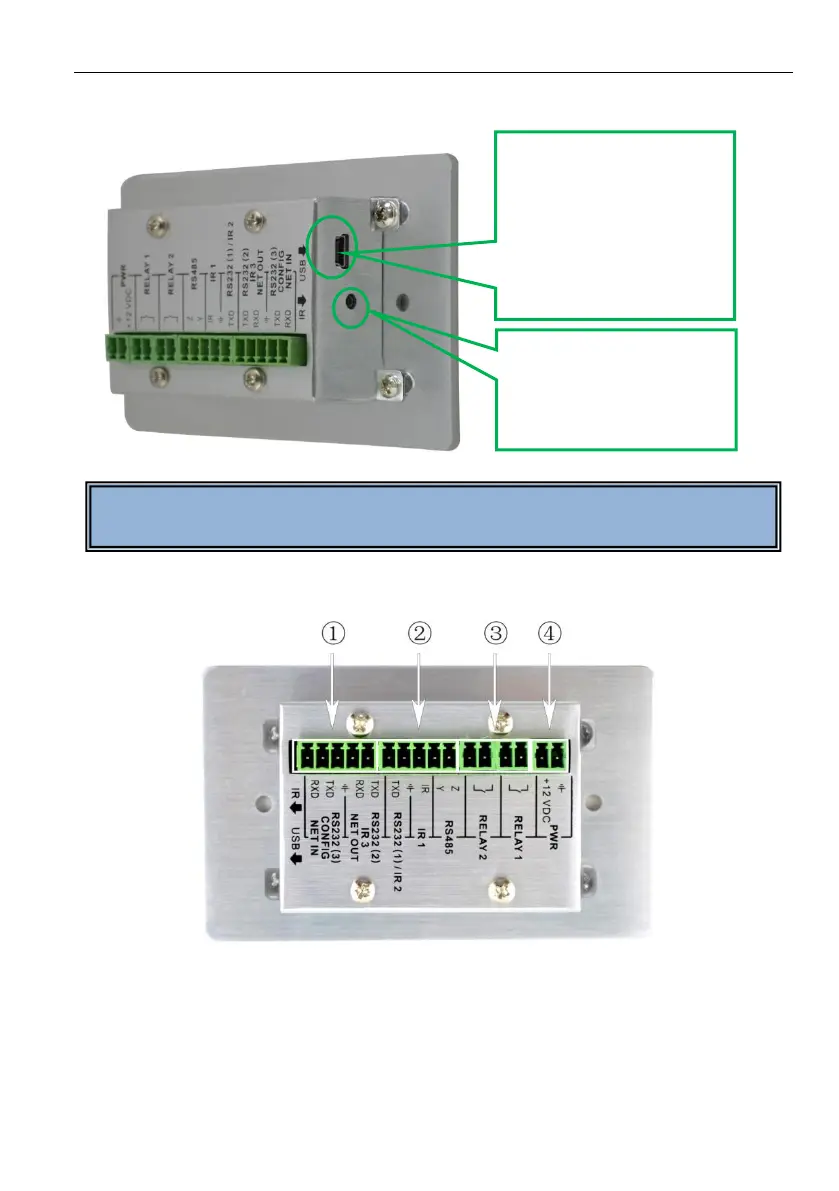

2.2 Side Panel
2.3 Rear Panel
The programmable control panel has various ports in the rear panel, including Lopping
port, RS232 port, RS485 port, IR port, Relay port and Power port. Below is the
introduction:
① This port includes two parts:
One part is RS232 (2)/IR3, it can be used for control other devices or looping
Note: When use this USB port to program the control panel’s buttons, the available
COM port number should not be more than 10.
Mini USB Connector:
1. Communicate with PC
which uses
JTD-Control to
program the buttons.
2. Transmit the infrared
data when learning IR
(Optional).
Infrared sensor port:
receive and learn the IR
code, to build the IR
database.
