Programmable Control Panel
22

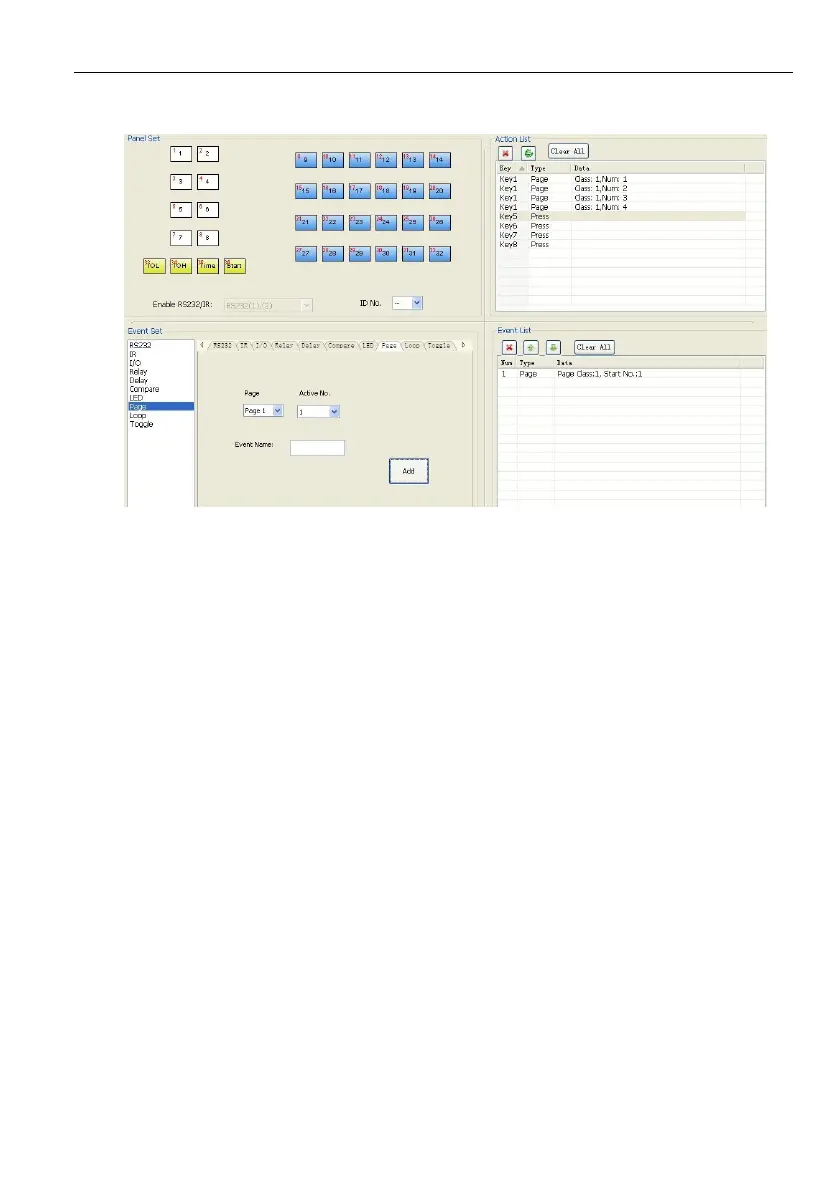

2) In event setting, we add four different events to the four page actions of key1, and
the four other keys will be added the page event to each of them as below:
Then set the “page” event to make four “press” actions to active the four page number:
key5-num1, key6-num2, key7-num3 and key8-num4. It will perform like this:
▪ When press the button5 and then button1, the button1 will execute the event of
num1, press button1 more times it will execute num1 more times;
▪ When press the button6 and then button1, the button1 will execute the event of
num2, press button1 more times it will execute num2 more times;
▪ When press the button7 and then button1, the button1 will execute the event of
num3, press button1 more times it will execute num3 more times;
▪ When press the button8 and then button1, the button1 will execute the event of
num4, press button1 more times it will execute num4 more times.
