Mechanical adjustment-Mounting and dismounting of motor encoder.mp4
dow
nwa
rd

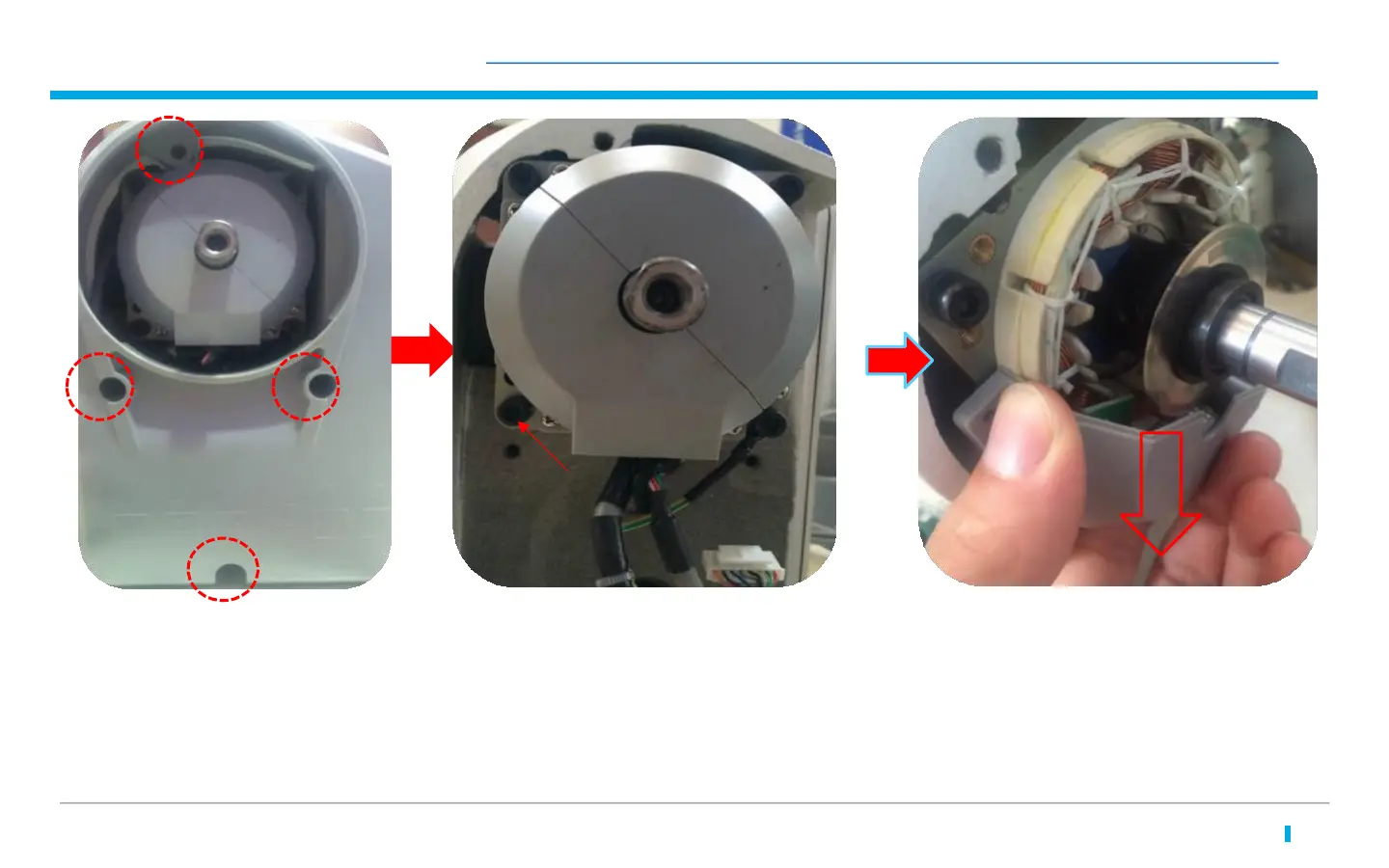

Operation Sequence:
1.Take down the hand wheel and then utilize hex key(4mm) to loose four electric control
fastening screws (represented as ABCD in the picture)
2.Take down the electronic control box and then use hex key (4mm) to loose the screw
(represented as E in the lower left corner of the picture)
3.Loose 6 motor encoder fastening screws by the hex key(10 mm) and take down the upper
part of housing, then downward remove the motor encoder
A
B C
D
The screw( will be
cancelled in the future),
if it exists,
please take it down
firstly.
E
32
