OVERRIDE TO OPEN
Press the UP and DOWN keys until the
word OPEN appears on the LCD and
then press the ENTER key. The damper
will drive open and remain in the open
position until the override is cancelled.
(Figure 18)
OVERRIDE TO CLOSE
Press the UP and DOWN keys until the
word CLOSED appears on the LCD and
press the ENTER key. The damper will
drive closed and remain in the closed
position until the override is cancelled.
(Figure 19)
CANCELLING THE DAMPER
OVERRIDE
In order for the Z-2000-T to control normal
damper operation, the override must be
cancelled. Press and hold the SETUP key
until the word DAMPER OPEN or
DAMPER CLOSE appears on the LCD.
Use the UP or DOWN key until only the
word DAMPER is displayed and then
press the ENTER key. The thermostat will
then resume normal operation. Figure 20)
Z-2000-T SPECIFICATIONS
Input Voltage 24 VAC 50/60 Hz
Relay Rating 24 VAC @ 1Amp per relay
Operating Temperature 23° F to 122° F
Operating RH 0-95% (non-condensing)
Size 4-7/16” W x 4-1/16” H x 7/8” D
LCD Display Size 2-3/4” W x 1-7/8” H
Temperature Sensor 10K NTC type 3
Accuracy +/- 1° F @ 77° F
Display Resolution 1° F
Control Range 36° F to 96° F
Back Light Blue EL (Electro Luminescent)
Back Light Life 3,000 hours to half brightness
Communications Protocol Modbus
Approvals FCC (Part 15) (Pending) C-tick
Warranty 5 years

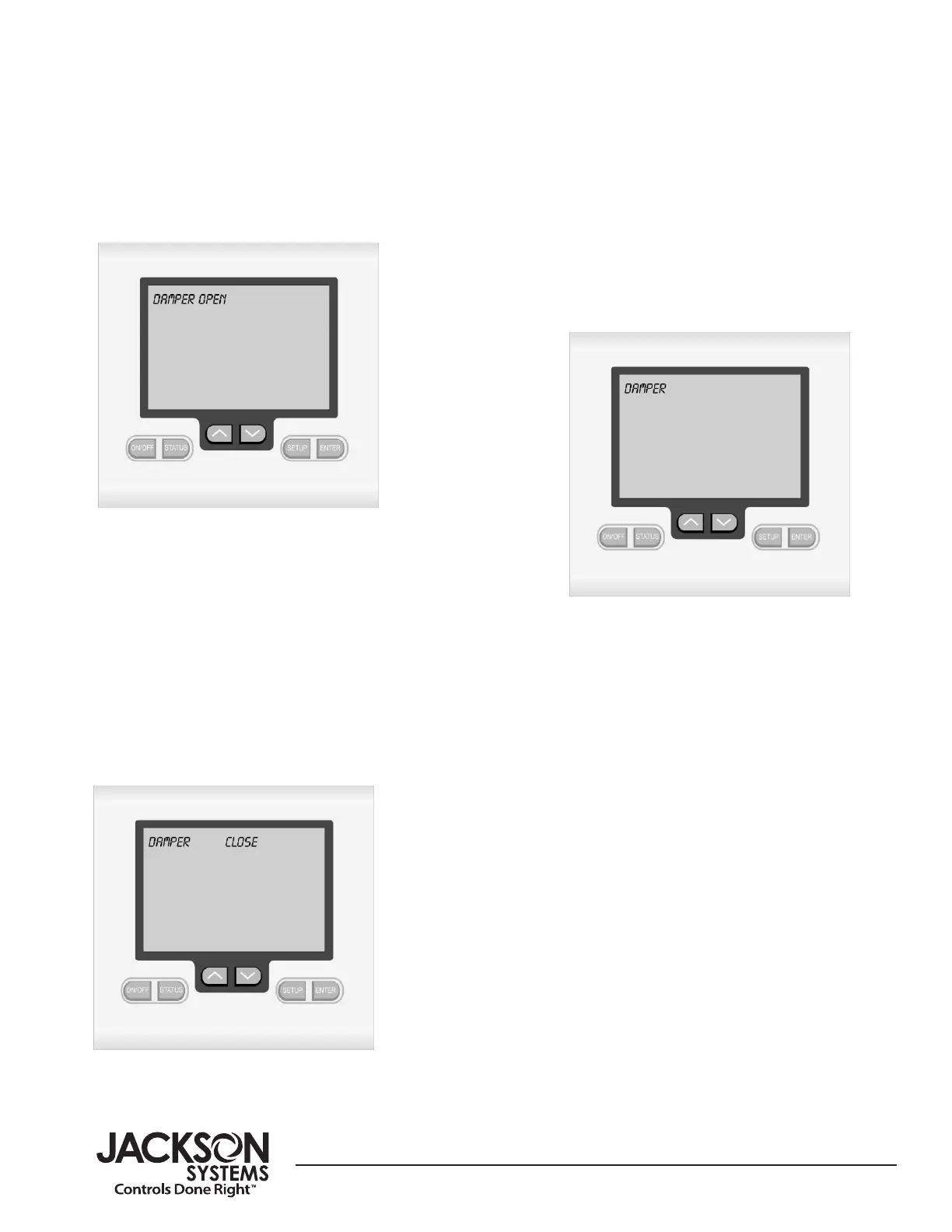

FIGURE 18
