Jackson Systems COMFORT SYSTEM Z-2000-T User Manual

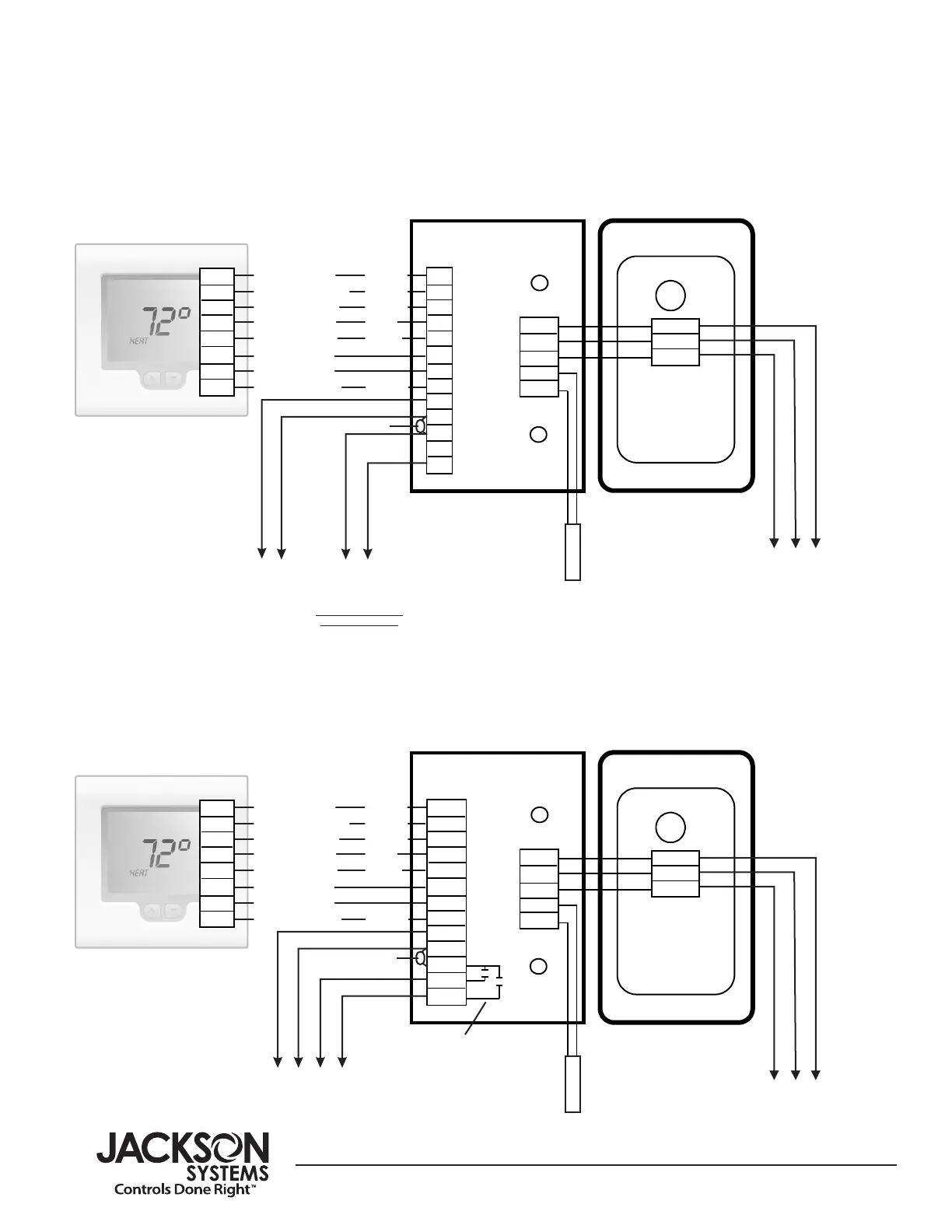

SYSTEM WIRING DIAGRAMS
Zone One™ Modulating Damper or Diffuser System
Comfort System™ Z-2000 Modulating Zone Control System
PO
PC
W
R
C
DS
DS
Y
1
2
3
4
5
6
7
8
C
R
R
Y
W
1
2
3
4
5
ACTUATOR
BOARD
DAMPER OR
DIFFUSER
ACTUATOR
90 SECOND TIMING
90° STROKE
44 lb.-in.
2VA
DAMPER OPEN (24VAC)
DAMPER CLOSED (24VAC)
CALL FOR HEAT (24VAC)
24 VAC POWER (HOT)
24 VAC POWER (COM.)
DUCT SENSOR
DUCT SENSOR
CALL FOR COOL
(24VAC)
DUCT SENSOR
(10 K OHMS @77°)
OPEN
CLOSED
COM.
DS
DS
HEAT
COOL
WIRE TO
OPTIONAL
SLAVE
DAMPER
(UP TO 20 MAY BE WIRED
IN PARALLEL)
PURPLE
ORANGE
RED
Z-2000-T
AUTO CHANGEOVER
SPACE THERMOSTAT
24 VAC
POWER
FACTORY JUMPER
RED LED
INDICATES
A CALL FOR
HEATING
GREEN LED
INDICATES
A CALL FOR
COOLING
OPTIONAL
AUX HEAT
CONTACTS
REMOVE FACTORY
JUMPER IF USED
PO
PC
W
R
C
DS
DS
Y
1
2
3
4
5
6
7
8
C
R
R
Y
W
1
2
3
4
5
ACTUATOR
BOARD
DAMPER OR
DIFFUSER
ACTUATOR
90 SECOND TIMING
90° STROKE
44 lb.-in.
2VA
DAMPER OPEN (24VAC)
DAMPER CLOSED (24VAC)
CALL FOR HEAT (24VAC)
24 VAC POWER (HOT)
24 VAC POWER (COM.)
DUCT SENSOR
DUCT SENSOR
CALL FOR COOL
(24VAC)
DUCT SENSOR
(10 K OHMS @77°)
OPEN
CLOSED
COM.
DS
DS
HEAT
COOL
WIRE TO
OPTIONAL
SLAVE
DAMPER
(UP TO 12 MAY BE WIRED
IN PARALLEL)
PURPLE
ORANGE
RED
Z-2000-T
AUTO CHANGEOVER
SPACE THERMOSTAT
R TO W CONTACTS CLOSE
ON A CALL FOR HEAT.
R TO Y CONTACTS CLOSE
ON A CALL FOR COOL
C R Y W
WIRE TO Z-2000
ZONE PANEL TERMINALS
FACTORY JUMPER
RED LED
INDICATES
A CALL FOR
HEATING
GREEN LED
INDICATES
A CALL FOR
COOLING
www.jacksonsystems.com
1.888.652.9663
4
