Jacobsen AR-5 Parts & Maintenance Manual

MAINTENANCE & LUBRICATION CHARTS 6
GB-27

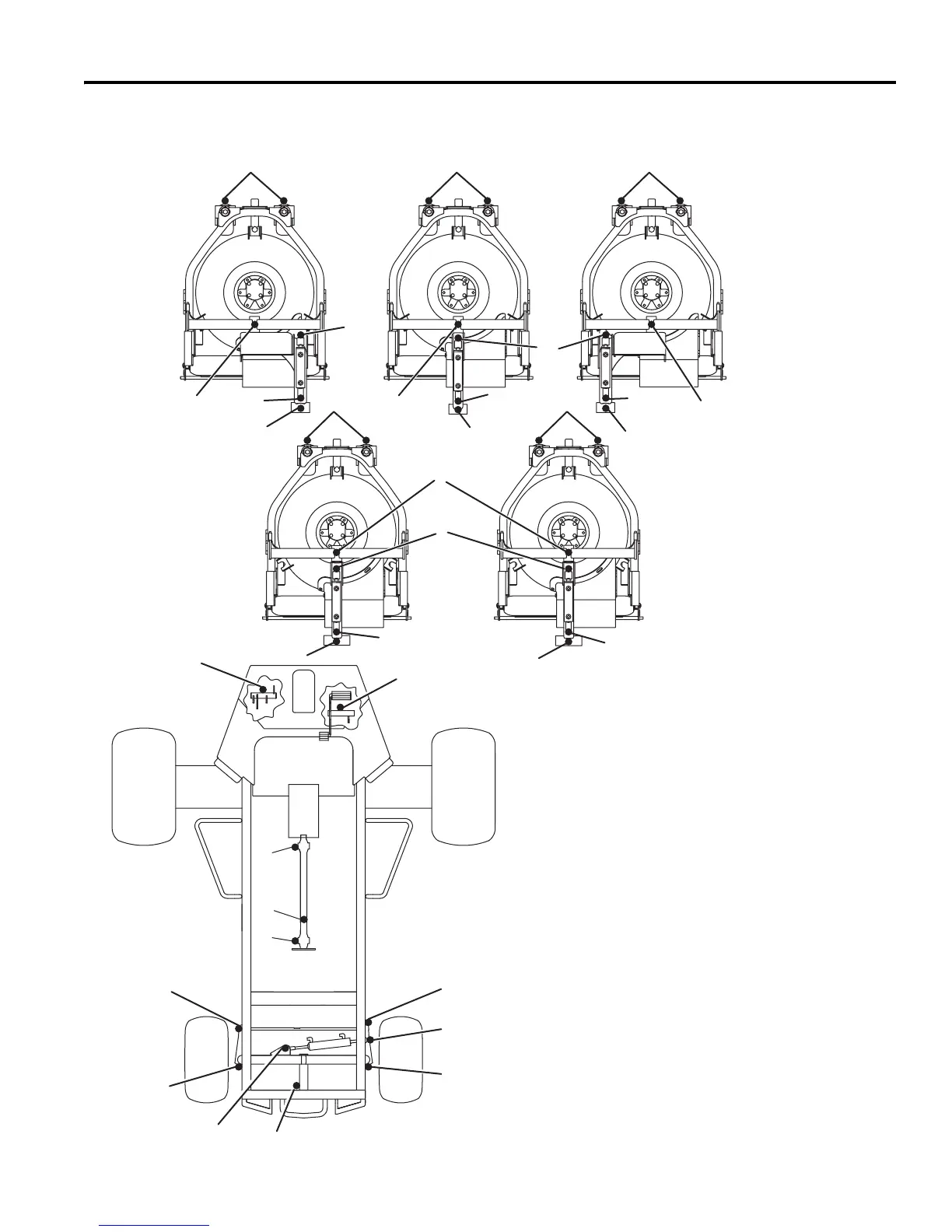

6.3 LUBRICATION CHART______________________________________________________
11
1
1
2
2
2
2
2
3
3
3
3
3
3
3
3
444
44
5
6
7
7
8
8
9
9
10
11
11
11
Grease Fittings
F1 - 50 Hours (Every Week)
1 Mower Pivot (5)
2 Lift Arm Pivot (5)
3 Lift Cylinders (10)
4 Caster Pivot and Wheels (10)
5 Brake Pedal Pivot
6 Traction Pedal Pivot
7 Ball Joint (2)
8 Steering Pivot (2)
9 Steering Cylinder (2)
10 Axle Pivot
F2 - 100 Hours
11 U-joint Driveshaft (3)
