AR-5
Item Part No. Qty. Description Serial Numbers/Notes
1
3000953 2 Disk, Orifice
2 339979 4 Fitting, 6-6 Straight
3 339985 1 Fitting, 8-10 Straight
4 340061 4 Fitting, 6-6 90°
5 340376 1 Fitting, 8-8 90° Swivel
6 REF 2 Lift Cylinder See 28.1
7 4129023 1 Hose, Lift Valve to RH Rear Cylinder Lift Valve Port #8, Base Port
8 4129024 1 Hose, Lift Valve to RH Rear Cylinder Lift Valve Port #2, Rod Port
9 4129025 1 Hose, Lift Valve to LH Rear Cylinder Lift Valve Port #1, Rod Port
10 4129026 1 Hose, Lift Valve to LH Rear Cylinder Lift Valve Port #7, Base Port
11 4129027 1 Hose, Lift Valve to Return Tube Lift Valve Port T
12 REF 1 Return Tube See 17.1

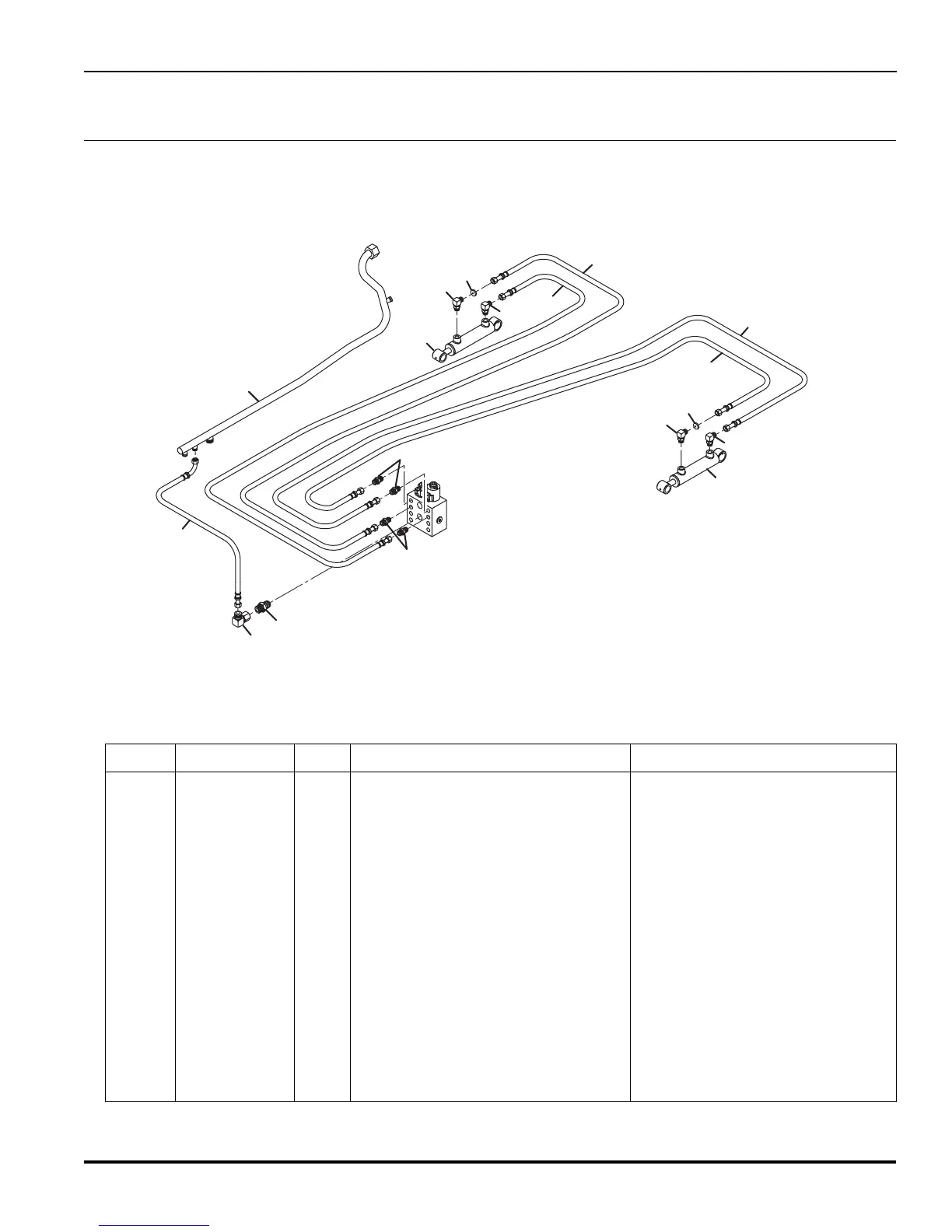

22.1 Rear Lift Hydraulics
Serial No. All
To Next Page
