Jacobsen AR-5 Parts & Maintenance Manual

64
> Change from previous revision
2
2
2
2
3
3
5
5
5
6
7
8
9
10
11
4
4
4
4
1
1
1
AR-5

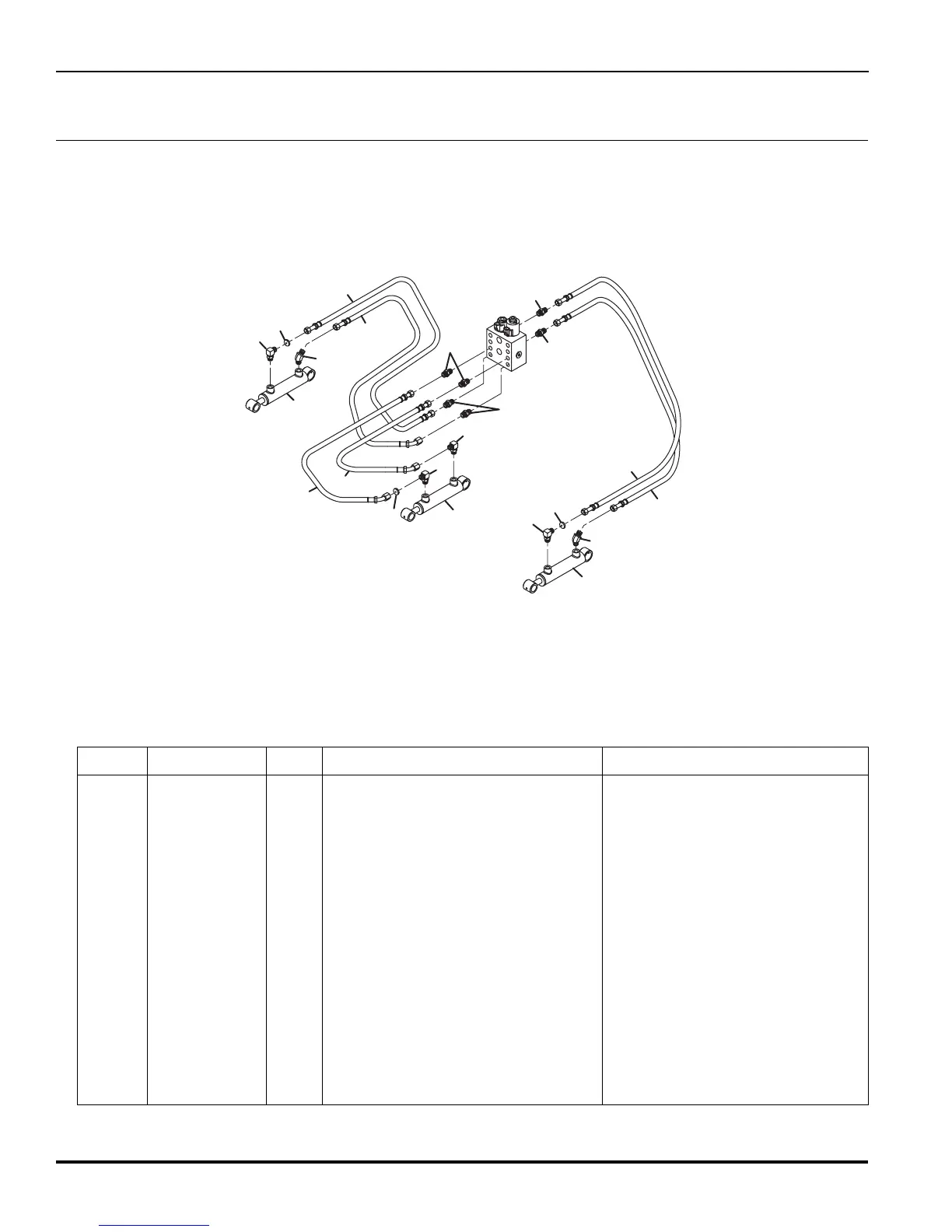

21.1 Front Lift Hydraulics
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
3000953 3 Disk, Orifice
2 339979 6 Fitting, 6-6 Straight
3 340026 2 Fitting, 6-6 45°
4 340061 4 Fitting, 6-6 90°
5 REF 3 Lift Cylinder See 27.1
6 4129017 1 Hose, Lift Valve to RH Front Cylinder Lift Valve Port #10, Base Port
7 4129018 1 Hose, Lift Valve to RH Front Cylinder Lift Valve Port #4, Rod Port
8 4129019 1 Hose, Lift Valve to Center Cylinder Lift Valve Port #9, Base Port
9 4129020 1 Hose, Lift Valve to Center Cylinder Lift Valve Port #3, Rod Port
10 4129021 1 Hose, Lift Valve to LH Front Cylinder Lift Valve Port #6, Base Port
11 4129022 1 Hose, Lift Valve to LH Front Cylinder Lift Valve Port #5, Rod Port

Jacobsen AR-5 Specifications

General

Brand	Jacobsen
Model	AR-5
Category	Lawn Mower
Language	English
