Jacobsen AR-5 Parts & Maintenance Manual

60
> Change from previous revision
2
3
5
5
5
5
6
6
6
6
7
8
9
1
0
4
1
1
1
1
AR-5

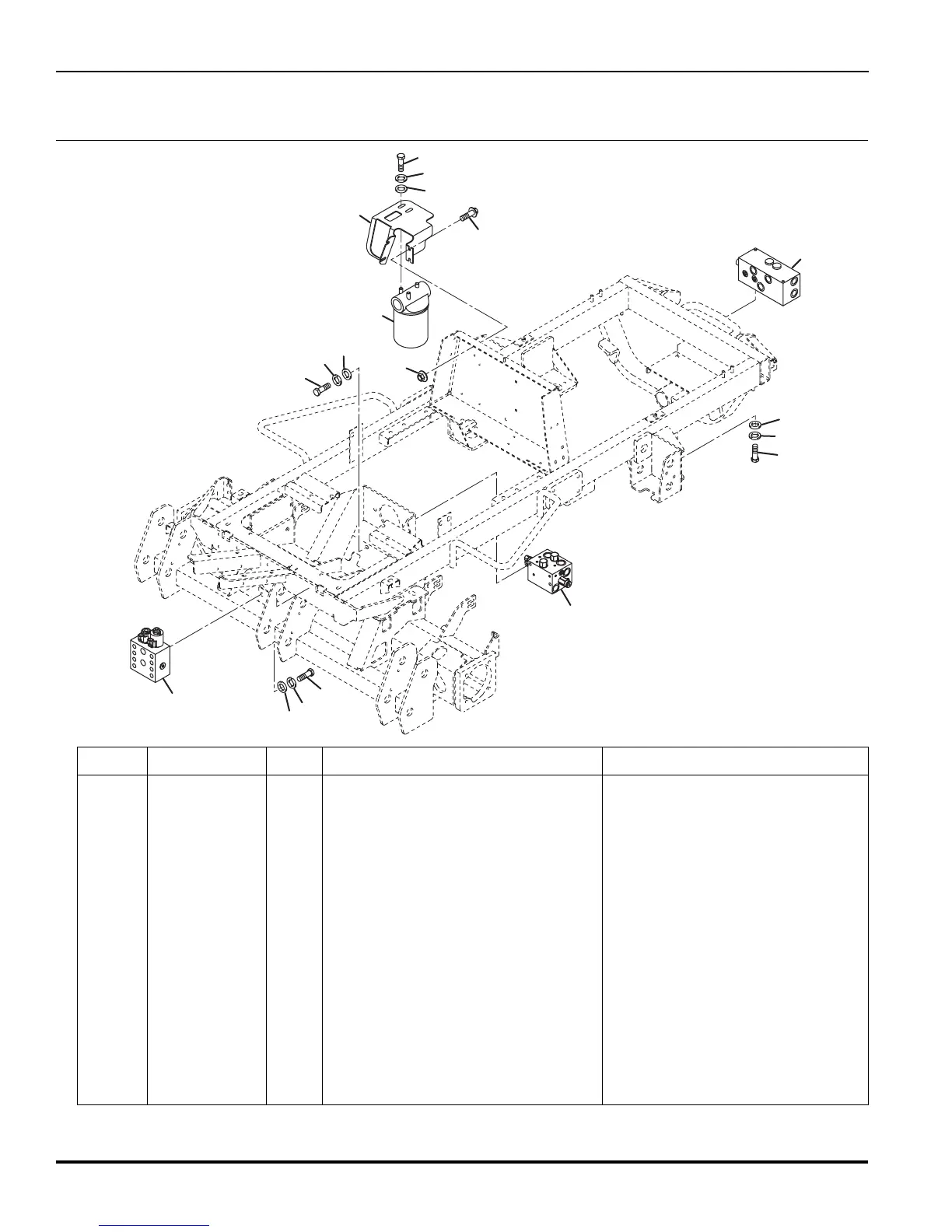

18.1 Hydraulic Valves and Filter
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
400258 8 Screw, 3/8-16 x 3/4” Hex Head
2 409811 4 Screw, 5/16-18 x 5/8” Thread Cutting
3 4121554 1 Hydraulic Filter Assembly
4121552 1 • Filter Head
555771 1 • Filter Element
556419 1 • Oil Switch REFERENCE SW-1, See 41.1
4124755 1 • Visual Indicator
4 4121852 1 Filter Bracket
5 446140 8 Lockwasher, 3/8
6 453011 8 Flat Washer, 3/8
7 445795 4 Nut, 5/16-18 Spiralock Flange
8 4129069 1 Lift Valve See 36.1
9 4129070 1 Deck Valve See 33.1
10 4129071 1 4WD Valve See 37.1
