67
> Change from previous revision
2
3
5
5
5
5
6
7
8
8
9
10
10
10
10
10
11
4
1
1
AR-5
Item Part No. Qty. Description Serial Numbers/Notes
1
4129593 2 Hose, Front Motor to Front Motor
2 4129599 1 Hose, Front Motors to Drain Tube
3 4129600 1 Hose, Rear Motors to Drain Tube
4 4129603 1 Hose, Rear Motor to Rear Motor
5 339977 4 Fitting, 6-4 Staight
6 340059 1 Fitting, 6-4 90°
7 340119 1 Fitting, 6-6-6 Swivel Run Tee
8 340143 2 Fitting, 6-6-6 Swivel Branch Tee
9 340375 1 Fitting, 6-6 90° Swivel
10 REF 5 Deck Motor See 30.1
11 REF 1 Tube, Drain See 23.1

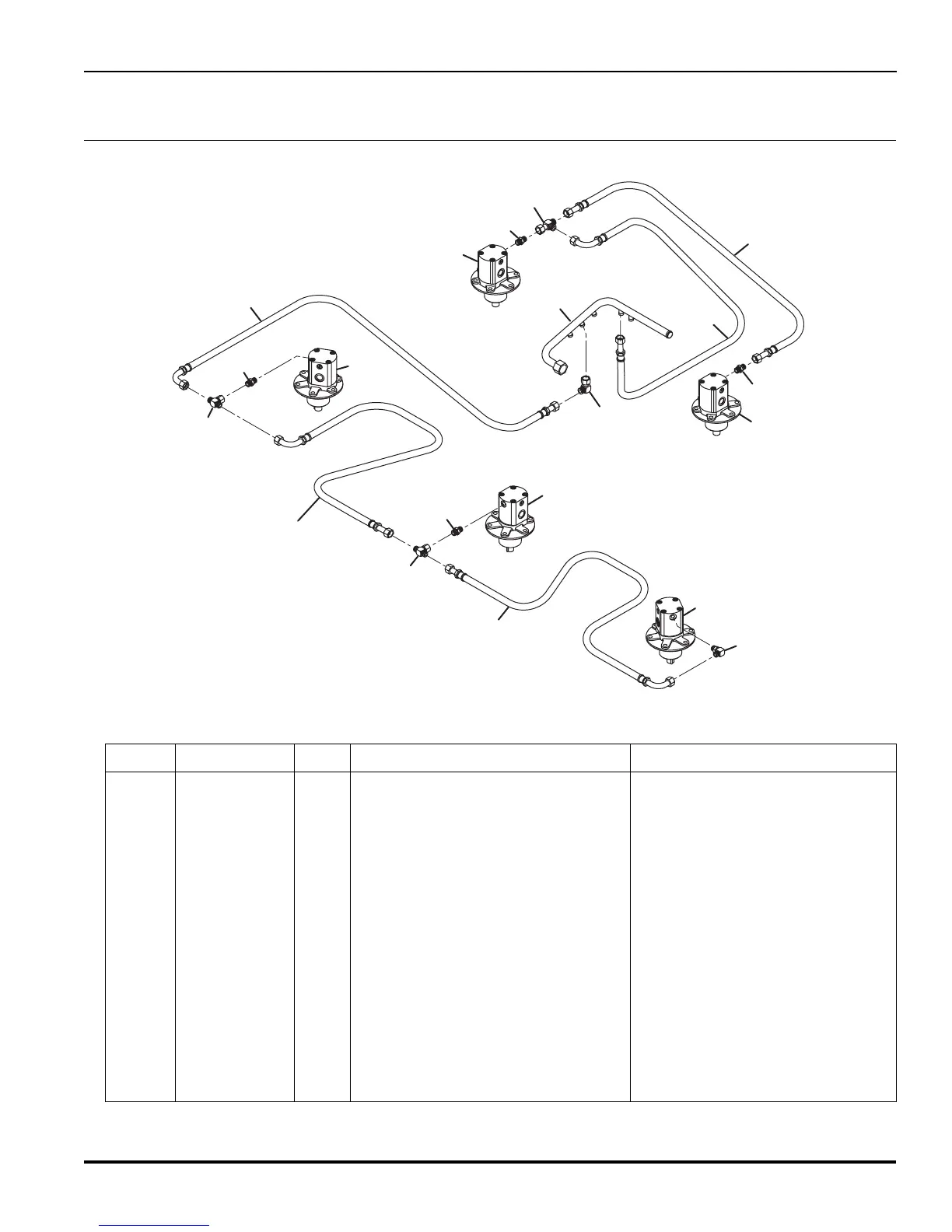

24.1 Deck Motor Case Drain
Serial No. All
