4 CONTROLS
en-18

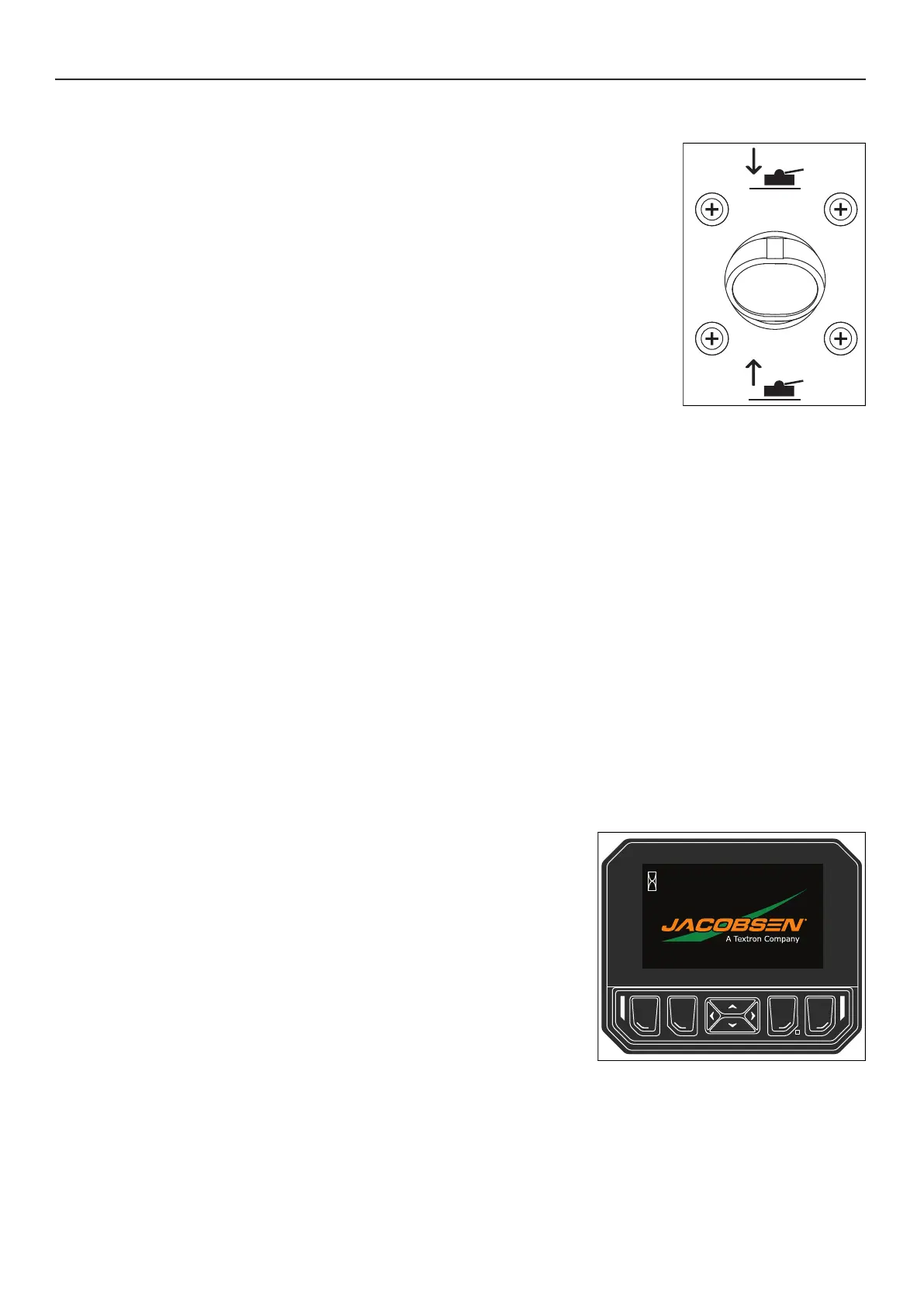

4.2.5 LIFT/LOWER JOYSTICK ____________________________________________________
The lift/lower joystick controls the lift and lower operation of the cutting implements. The
lift/lower joystick operates in One-Touch or manual mode. Push the lift/lower joystick to
lower the cutting implements or pull the lift/lower joystick to lift the cutting implements.
The One-Touch or manual mode is set on the display.
Manual Mode - When One-Touch is disabled, the cutting implements will lift or lower only
while the lift/lower joystick is pulled or pushed.
One-Touch Mode - With One-Touch enabled and the mow switch is in the ON position,
To Lower - Push and release the lift/lower joystick once to lower the cutting implements to
the mid Cross Cut position, Push and release the lift/lower joystick a Second time to lower
the cutting implements to the ground and start the blades.
To Raise - Pull and release the lift/lower joystick once to lift the cutting implements to the
mid Cross Cut position.Pull and release the lift/lower joystick a second time to completely lift the cutting implements
and stop the blades.
To engage the cutting implements if they are already in the lowered position but disengaged, Press the Mow Switch to
On position, Push and release the Lift /Lower joystick once to engage the cutter blades.
4.2.6 VISUAL DISPLAY__________________________________________________________
The visual display is activated when the key switch is turned to the ‘RUN’ position.
4.2.6.1 STARTUP SCREEN _______________________________________________________
When the key switch is turned to the ‘RUN’ position, this screen is shown for
two seconds.
The hour meter will show total hours of engine operation.
