4.2.6.2 WARNING / SERVICE SCREEN _____________________________________________
After the startup screen the warning screen is shown. The warning screen is
visible for three seconds. If there is no input needed, the main screen will
become visible. If a fault condition has occurred during the previous start, a
pop up screen will become visible over the top of the warning screen. The
operator must confirm the fault before they can move to the main screen.

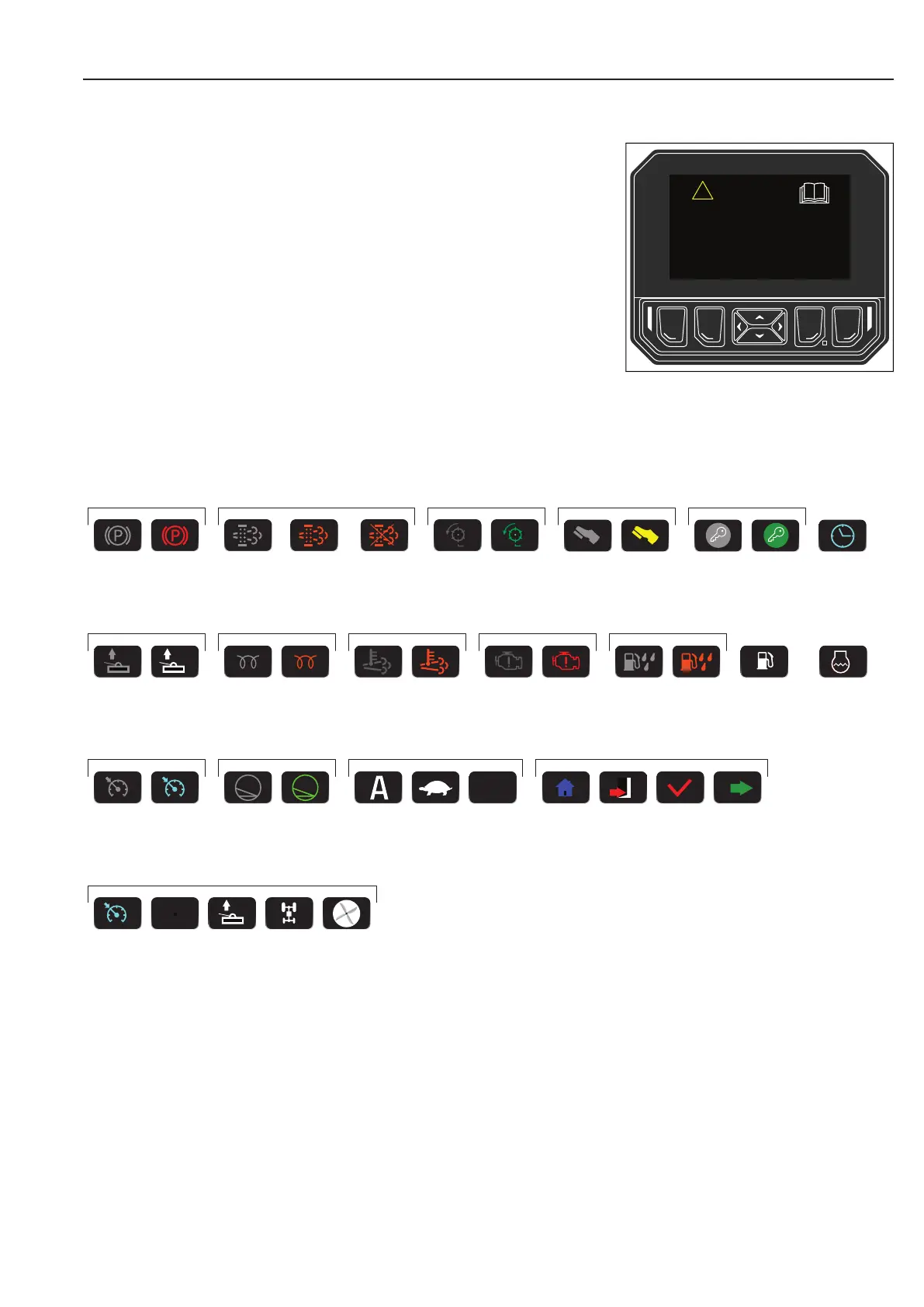

4.2.6.3 ICONS__________________________________________________________________
The following Icons are used in the controller. Not all icons may be visible, depending on the engine and the options
installed on the mower.
WARNING
If incorrectly used this maching can cause
severe injury. Those who use and maintain this
machine should be trained in its proper use,
warned of its dangers and should read the
entire operators manual before attempting to set
up, operate, adjust or service the machine.
!
OFF
Not
Required
ON
Required Inhibited
OFF ON No Yes
Not In
Neutral
Neutral System Date
and Time
Parking Brake
Switch
Parked Regen Mow Switch Traction Pedal Engine Start
Weight
Transfer
OFF Active OFF Active OFF Active OFF Active OFF Active
OFF Active OFF Active
Fuel
Gauge
Temperature
Gauge
Glow Plugs
High Exhaust
Temperature Alert
Check Engine
Alert
Water In Fuel
Alert
Cruise Control
OFF Active OFF Active
TST Throttle Mode
Menu System
Navigation
Garage Manual Home Back Select Menu
Select
Taskbar Popup Menu
Cruise
Control
Throttle
Mode
Weight
Transfer
4WD Fan
Control
Auto
To Next Page
