4 CONTROLS
en-20
4.2.6.4 FIRST SCREEN __________________________________________________________

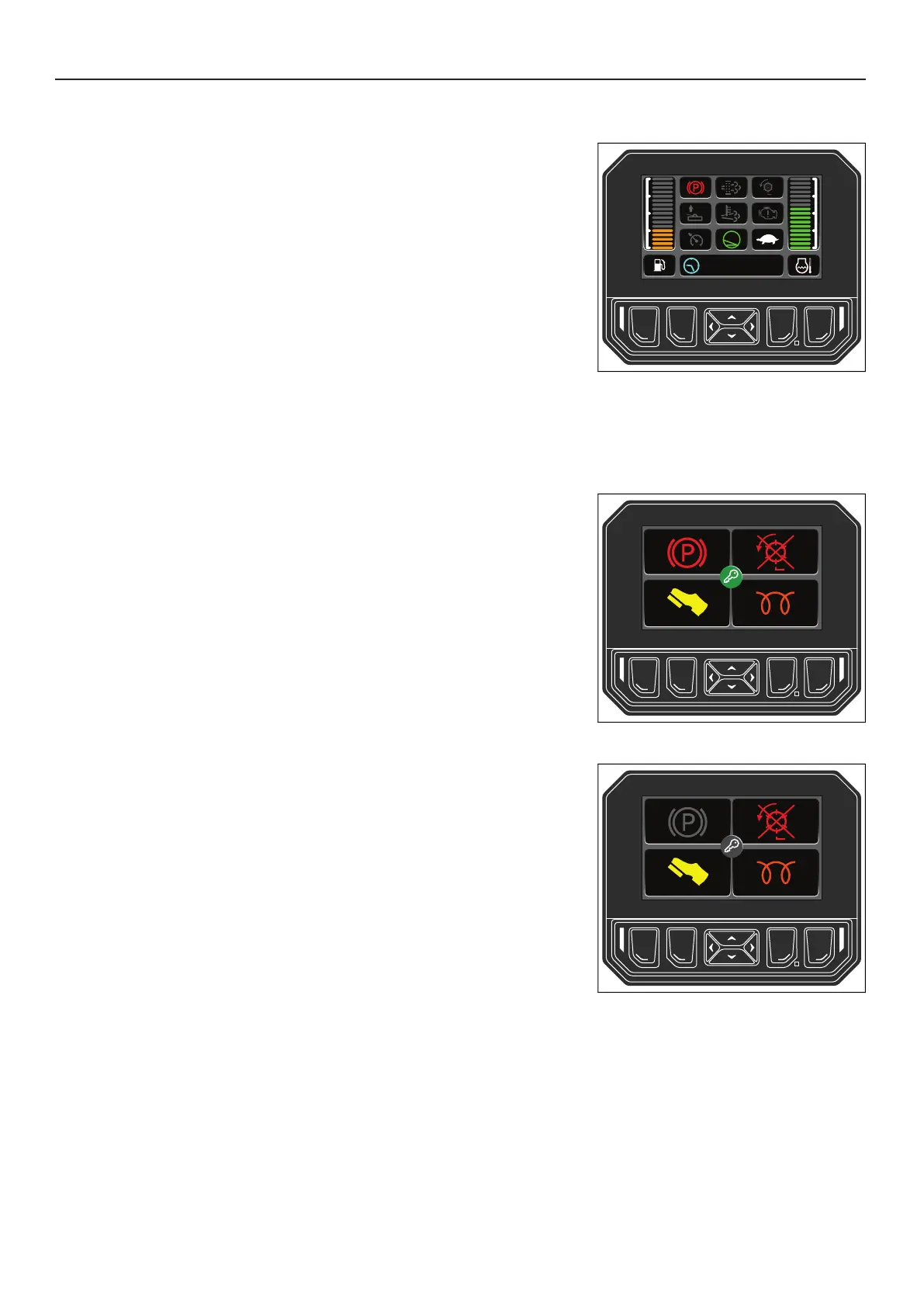

This screen shows the status of vehicle functions, the fuel gauge and coolant
temperature gauge.
When an icon is grayed out, the mower function is not active or the switch is in
the OFF position.
Color icons indicate an active function or switch in the ON position.
The fuel gauge is on the left side of the screen.The fuel gauge color will be
green when the tank is between 30% and 100% full. The fuel gauge color will
be orange when the tank is between 18% and 29% full. The gauge color will
be red when the tank is less than 18% full. Do not allow the mower to run out
of fuel.
The engine temperature gauge is on the right side. The temperature gauge color will be green with engine temperature
below 203° F (95° C). The temperature gauge color will be orange with the engine temperature between 203° F (95° C)
and 220° F (104° C). The temperature gauge color will be red with the engine temperature above 220° F (104° C).
4.2.6.5 ENGINE START __________________________________________________________
When the key switch is turned to the start position and the interlocks are set,
this screen is shown.
To start the engine, the parking brake switch must be in the ON position, the
mow switch must be in the OFF position and the traction pedal must be in the
Neutral position. There may be a time delay before the engine starts to rotate,
it depends on the engine temperature while the glow plugs operate
automatically.
4.2.6.6 THE ENGINE WILL NOT START_____________________________________________
When the ignition key is turned to the start position and the interlocks are not
set, this screen is shown.
• The parking brake switch is not in the ON position. The icon will flash
red and gray.
• The mow switch is not in the OFF position. The icon will flash red and
gray.
• The traction pedal is not in the Neutral position. The icon will flash
yellow and gray.
The engine will not start until all the items in the list are correct.
