4 CONTROLS
en-30
Software Revision is used by Dealer for fault diagnostics.

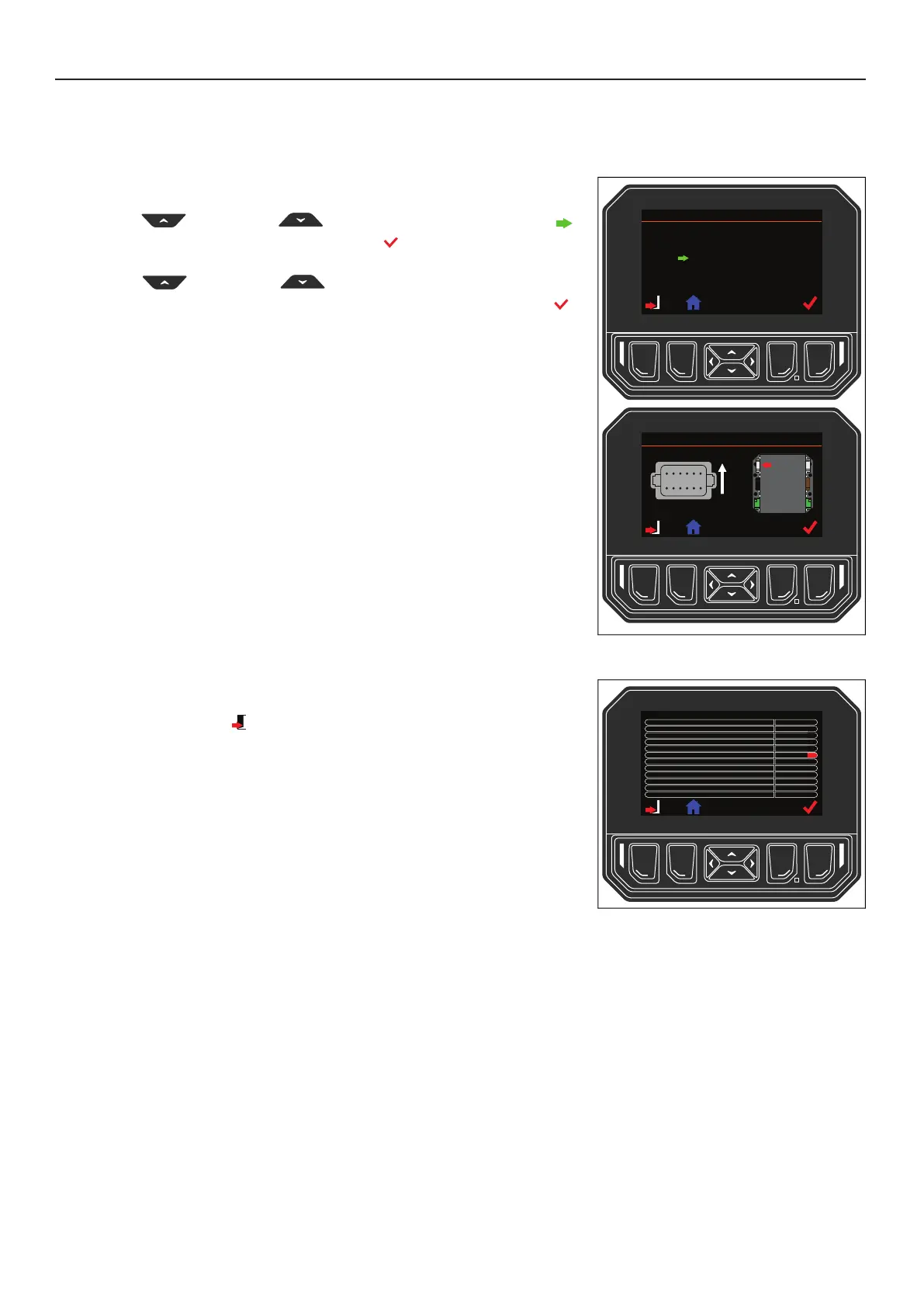

4.2.6.21 I/O DIAGNOSTICS_______________________________________________________
Start the engine. Navigate to the Service Menu.
Use the UP and DOWN arrow keys until the green arrow is
next to I/O Diagnostics. Press the select button to select I/O Diagnostics.
Use the UP and DOWN arrow keys until the red arrow is next
to connector you want to check the status of. Press the select button to
select the connector.
4.2.6.22 CONNECTOR J1 ________________________________________________________
This screen shows the status of the J1 connector circuits.
Press the left side button to return to I/O diagnostics menu.
Values are shown for illustration purposes only.
I/O Diagnostics
1
6
7
12
DEUTSCH DT13-12PA
Fault Log
Time Until Service
Vehicle Status
I/O Diagnostics
Inhibit Regen
Parked Regen
Service Menu
Connector J1
J1-1 Battery [V ]
12.7
J1-2 Switched 12V
J1-3
J1-4 Battery [V ]
J1-5 Switched 12V
J1-6 Start w/Interlocks
J1-7 CAN Shield
J1-8 CAN Low
J1-9 CAN High
J1-10 Main Ground
J1-11 5V Sensor Output
J1-12
O
To Next Page
