4.2.6.26 CONNECTOR J5 ________________________________________________________

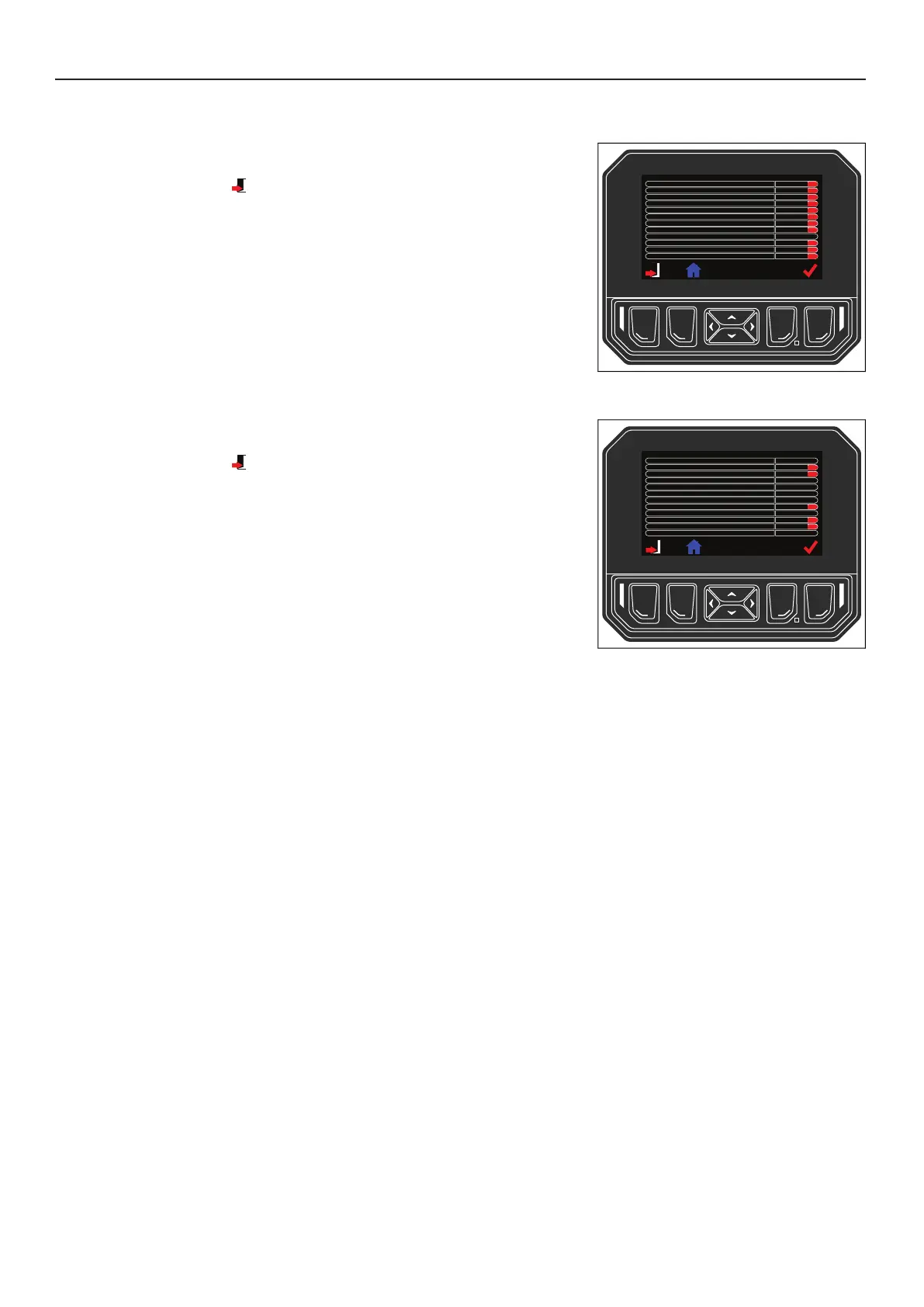

This screen shows the status of the J5 connector circuits.
Press the left side button to return to I/O diagnostics menu.
Values are shown for illustration purposes only.
4.2.6.27 CONNECTOR J6 ________________________________________________________
This screen shows the status of the J6 connector circuits.
Press the left side button to return to I/O diagnostics menu.
Values are shown for illustration purposes only.
Connector J5
J5-1 Right Wing Mow Solenoid
O
O
O
O
O
O
O
J5-2 Center Mow Solenoid
J5-3 Wing Mow Enable Solenoid
J5-4 Left Wing Enable Solenoid
J5-5 Left Wing Mow Solenoid
J5-6 Wing Lower Solenoid
J5-7 4WD Solenoid
J5-8 Glow Plug
J5-9
J5-10 Joystick Lower
J5-11 Joystick Lift
J5-12 Pump Pressure Switch
O
O
O
O
O
Connector J6
J6-1
O
O
O
O
J6-2 AWD Solenoid
J6-3 Weight Transfer Solenoid
J6-4
J6-5
J6-6 Battery
J6-7 Battery
J6-8 Water in Fuel
J6-9 Ground
J6-10 Hydraulic Filter Switch
J6-11 Engine Oil Pressure
J6-12
O
