Jacobsen AR522 Service Manual

6 MAINTENANCE & LUBRICATION CHARTS
32
6.3 LUBRICATION CHART _____________________________________________________
11
1
1
2
2
2
2
2
3
3
3
3
3
3
3
3
444
4
4
5
5
555
5
5
555
6
7
8
8
9
9
10
10
12
12
12
11

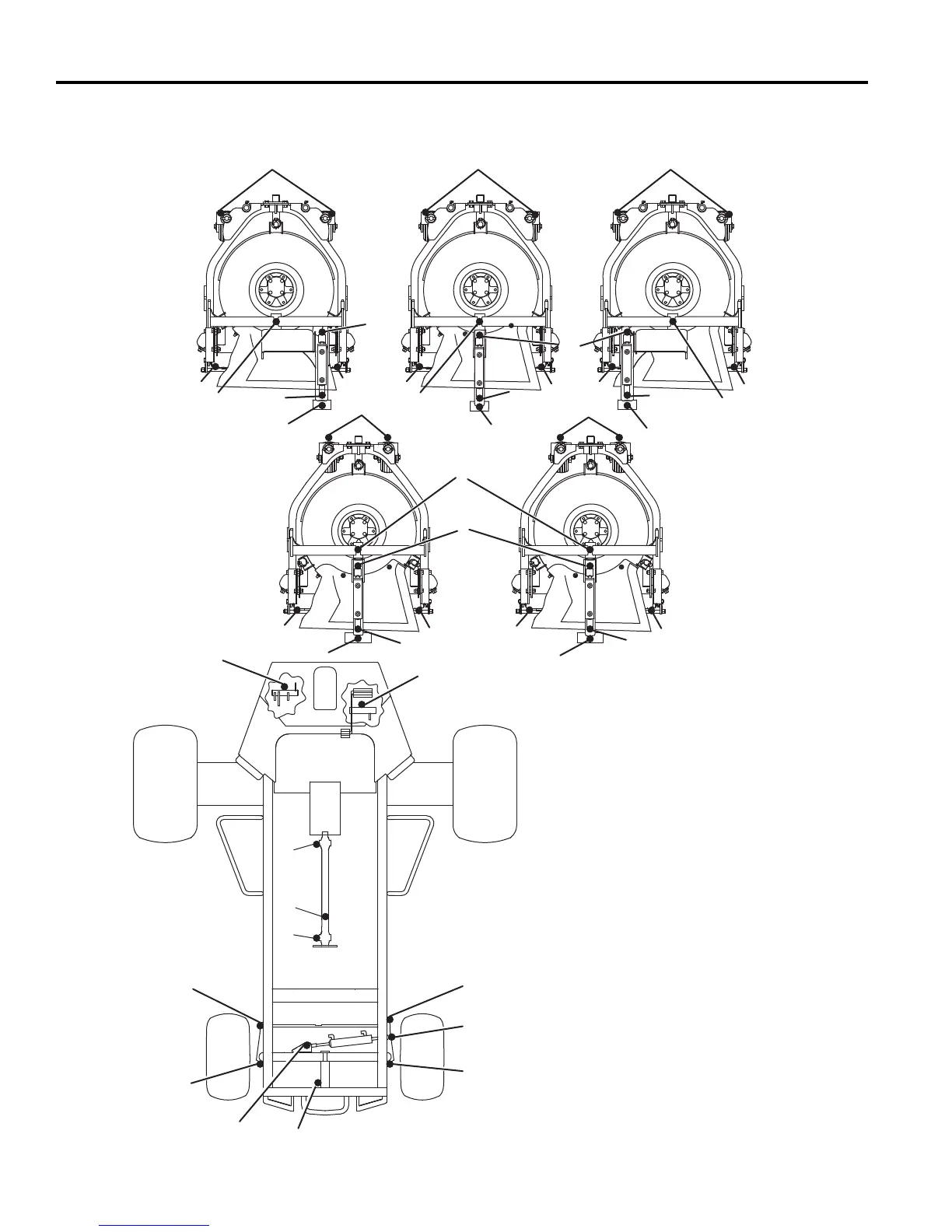

Grease Fittings
F1 - 50 Hours (Every Week)
1 Mower Pivot (5)
2 Lift Arm Pivot (5)
3 Lift Cylinders (10)
4 Caster Pivot and Caster Wheels (10)
5 Mower Rear Roller (10)
6 Axle Pivot
7 Traction Pedal Pivot
8 Ball Joint (2)
9 Steering Pivot (2)
10 Steering Cylinder (2)
F2 - 100 Hours
11 U-joint Driveshaft (3)
