2 SPECIFICATIONS
8
2 SPECIFICATIONS
2.1 PRODUCT IDENTIFICATION_________________________________________________
68131..............................AR522-T4I, 5 Gang 4WD with
ROPS

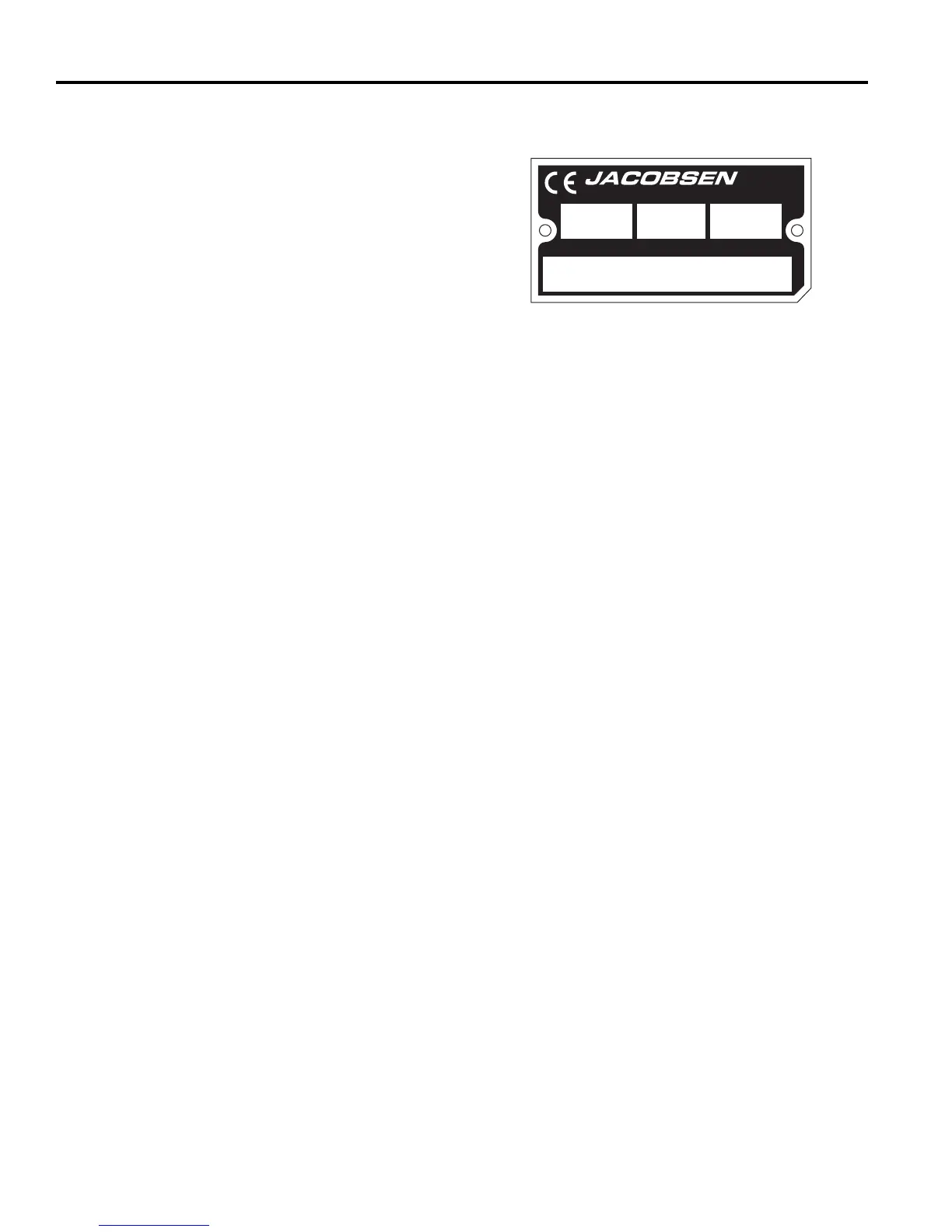

An identification plate, like the one shown, listing the
serial number, is attached to the frame of the mower and
is located on the operator’s right just over the rear axle.
Always provide the serial number of the unit when
ordering replacement parts or requesting service
information.
2.2 V2403-M-DI ENGINE _______________________________________________________
Make............................... Kubota
Model..............................V2403-M-DI Diesel, 4 cycle, liquid
cooled
Horsepower ....................48.9 Hp (36.5 kW) @ 2700 rpm
Note: Actual sustained horsepower will likely be lower
than listed in specifications due to operating limitations
and environmental factors
Bore ................................3.43 in. (8.7 cm)
Stroke.............................. 4.03 in. (10.24 cm)
Displacement.................. 148 in
3
(2434 cm
3
)
Torque.............................117 ft. lbs. (158 Nm) @ 1600 rpm
Fuel:
Type..........................No. 2 Diesel, Low or Ultra-Low
Sulfur
Rating ....................... Min. Cetane rating 45
Capacity.................... 17 U.S. gal. (65 liters)
Governor Setting:
High Idle ................... 2920 rpm
Low Idle .................... 1000 rpm
Lubrication:
Capacity.................... 10 U.S. qts.(9.5 liter)
Type.......................... SAE 10W30
API Classification ..... CJ-4
Air Filter .......................... Donaldson, dual element dry type
with evacuator valve and service
indicator.
Alternator........................ 45 Amp
2.3 MOWER _________________________________________________________________
Tires:
Front ........................26.5 x 14 - 12: (6 ply)
Rear ......................... 22.5 x 10 - 8
Tire Pressure:
Front .........................16 psi (1.10 BAR)
Rear.......................... 12 psi (0.83 BAR)
Battery:
Type..........................12V, 600 Cold Cranking Amps
Group........................BCI 24
Service Brake .................Dynamic braking through traction
circuit.
Parking Brake .................Integrated in wheel motor,
hydraulic release
Speed:
Mow ......................... 0 - 7 mph (0 - 11 kph)
Transport .................. 0 - 12 mph (0 -19.3 kph)
Reverse ................... 0 - 5 mph (0 - 8.1 kph)
Production ...................... 6.4 acres/hr. @ 7 mph
Hydraulic System:
Capacity.......................... 14 U.S. gal. (37.85 liter)
Fluid Type....................... GreensCare 68
Cooling ........................... Oil Cooler
Return Line Filter............ 10 micron
Steering ......................... Hydrostatic power steering
2.4 WEIGHTS AND DIMENSIONS ________________________________________________
Dimensions: Inches (cm)
Length............................................................130 (330.2)
Height - Top of ROPS .....................................83 (210.8)
Width - Mow.....................................................98 (248.6)
Width - Transport.............................................98 (248.9)
Weight: Lbs. (kg)
Full fluids, decks raised, less operator.
Overall ........................................................3691 (1674)
Fuel tank empty, decks raised, less operator.
Overall ........................................................3569 (1619)
