Description:
Tektite Manufacturing Inc.
24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part #File Name
Description
Qty
1 A00-0006 TEKT-0074 Cabin Air Filter 2
2 A00-0070 REID-KBP-262-KBP-265 Knob, Knurled, 1/4" 4
3 A00-0073 FILTER-COVER Filter Cover 2
4 A00-0076 TEKT-0026 1/4" Panel Nut 4
5 Ja5-0009 JA9016-149 Rear Seal Roof Cap 1
6 Ja5-0010 JA9016-150 Front Seal Roof Cap 1
7 Ja5-0011 JA9016-151- Roof Cap Edging 1
8 Ja5-0012 JA9016-152- Roof Cap Seal, Side, 180 Bulb 1
9 Ja5-0012 JA9016-152R Roof Cap Seal, Side, 180 Bulb 1
10 Ja5-0021 JA9016-ASM-40 Roof Cap Weldment 1

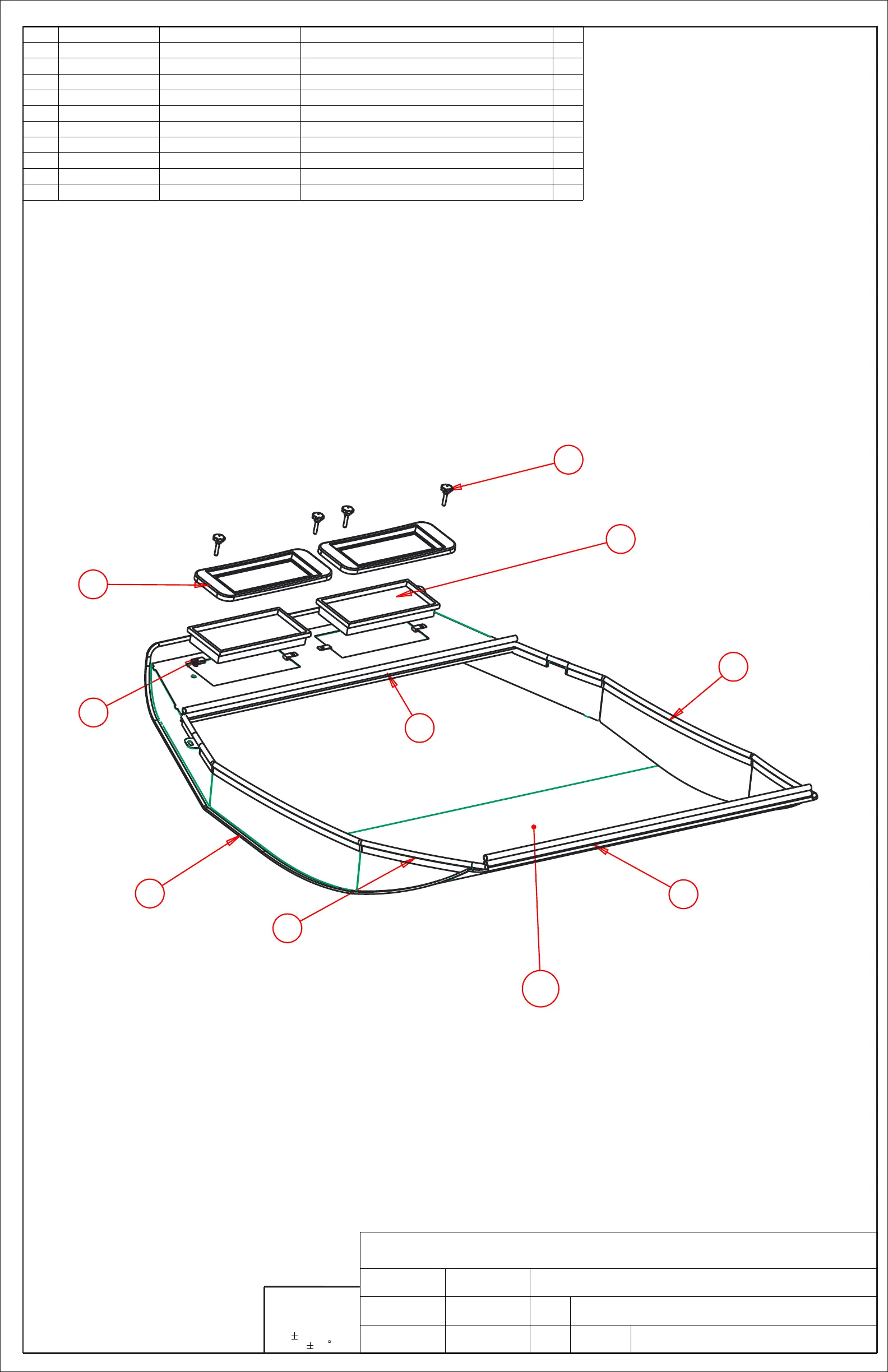

1 req Roof Cap Assembly
Daryl Furkalo
2015-08-13 Imp.
JA9016-ASM-42_OP
B
SCALE 0.150
1
2
3
4
5
6
7
8
9
10
