CNC:
Index Service Part #File Name
Description
Qty
1 JA9016-ASM-22-RADIO 1
2 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 2
3 A00-0059 FLANGE-NUT-5-16 Flange Nut, 5/16", YD 2
4 A00-0084 TEKT-0070 Gas Shock 2
5 A00-0085 TEKT-0069 Gas Shock Stud 2
6 A00-0134 WASHER-BOTTLE Washer Tank 1
7 A00-0136 RED_TAIL_FLASH Red Tail Light 2
8 A00-0141 ROUND_MIRROR_6_INCH External 6" Mirror 2
9 A00-0143 TEKT-0083 Turn light, Amber 4
10 A00-0182 TEKT-ASM-018 Headlight 2
11 A00-0313 TEKT-ASM-050 Oct 2014 Work Light 2

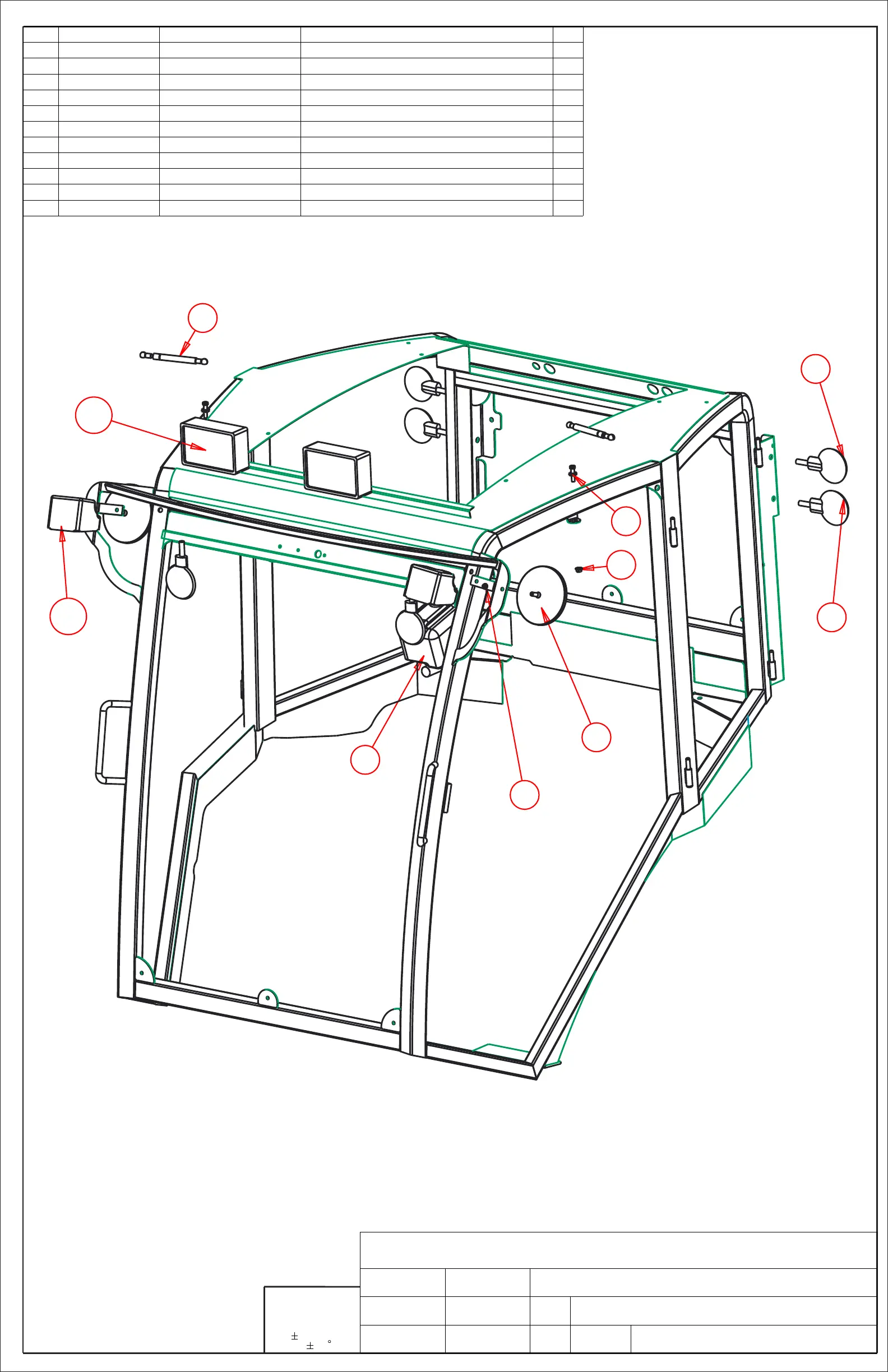

1 req Accessories Assembly
Daryl Furkalo
2015-08-13 Imp.
JA9016-ASM-46_OP
B
SCALE 0.120
2
11
10
9
8
7
5
4
3
6
