4 ADJUSTMENTS
14
4 ADJUSTMENTS
4.1 GENERAL________________________________________________________________
1. Adjustments and maintenance should always be
performed by a qualified technician. If proper
adjustment cannot be made, contact an authorized
Textron Turf Care And Specialty Products dealer.
2. Replace, do not adjust, worn or damaged
components.
3. Do not wear jewelry or loose fitting clothing when
making adjustments or repairs.
4. Do not change governor settings or overspeed the
engine.

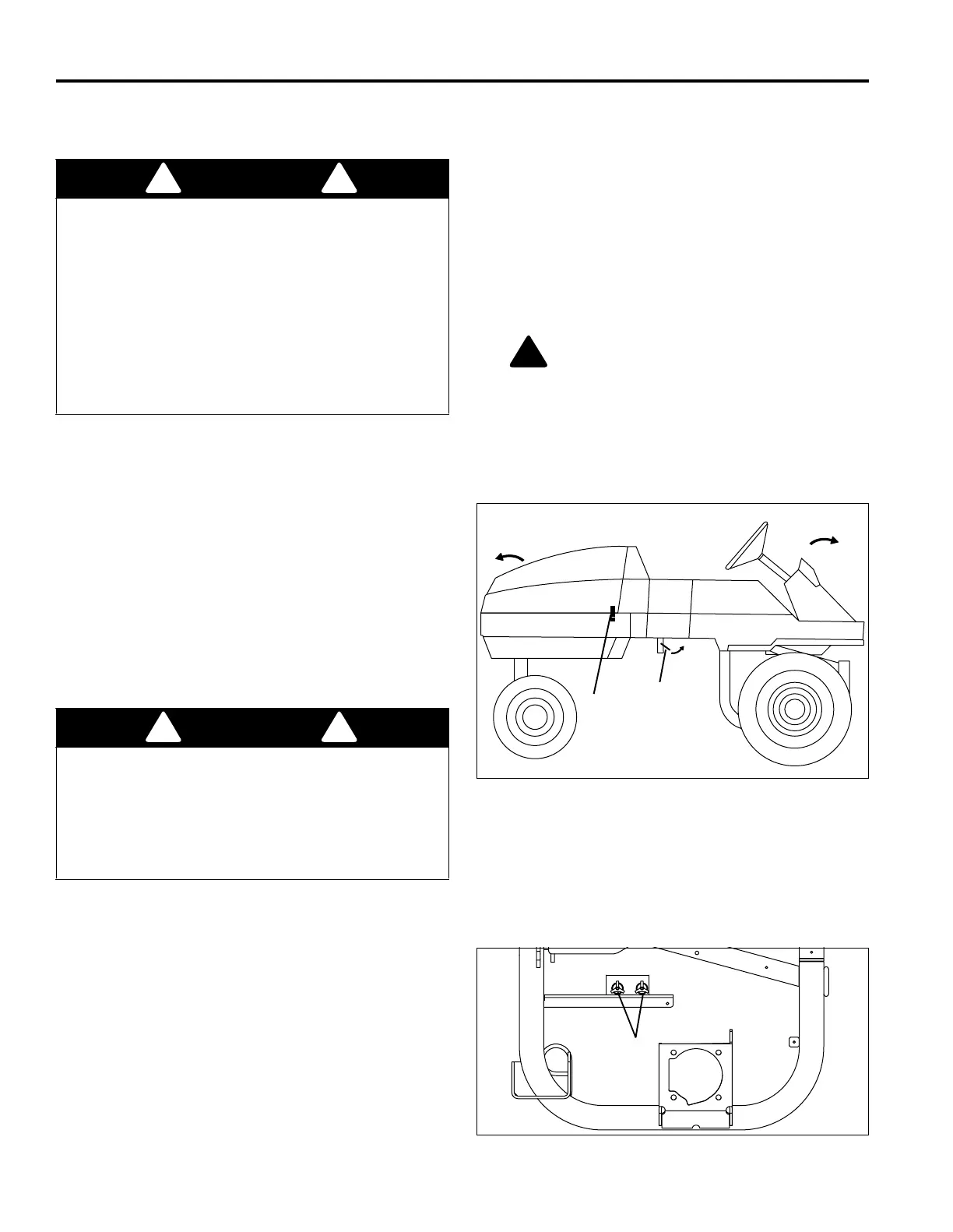

4.2 OPENING HOOD AND OPERATOR’S PLATFORM _______________________________
1. To open hood, release latches (A) on both sides of
the tractor and tilt hood backwards.
2. To open operator’s platform:
a. Open Hood
b. Start engine and lower front reels to the ground.
Engage parking brake and shut off engine.
c. Release latch (B) from the right side of tractor.
d. Lift operator’s platform to the open position.
Figure 4A
4.3 MANUAL LOWERING VALVE ________________________________________________
1. To lower the front lift arms manually, when the engine
is not operating, slowly turn the lift release knobs (C)
clockwise until mowers are on the ground. Then turn
counterclockwise finger tight.
2. Manual Lowering valve can be located behind and
above the right front tire.
Figure 4B
WARNING
To prevent injury, lower implements to the ground,
disengage all drives, engage parking brake, stop engine
and remove key from ignition switch before making any
adjustments or performing maintenance.
Make sure the tractor is parked on a solid and level
surface. Never work on a tractor that is supported only by
the jack. Always use jack stands.
If only the front or rear of the tractor is raised, place
chocks in front of and behind the wheels that are not
raised.
! !
CAUTION:
Be careful to prevent entrapment
of the hands and fingers between moving and
fixed components of the machine
!
WARNING
To prevent injury, never remove the gas springs from the
operator’s platform without first supporting the platform.
Do not raise front lift arms when the operator’s platform
is opened. The platform could be forced into the closed
position causing bodily injury or damage to operator’s
platform.
! !
A
B
C
