Jacobsen LF 3810 Dealer's Manual

6 MAINTENANCE & LUBRICATION CHARTS
26

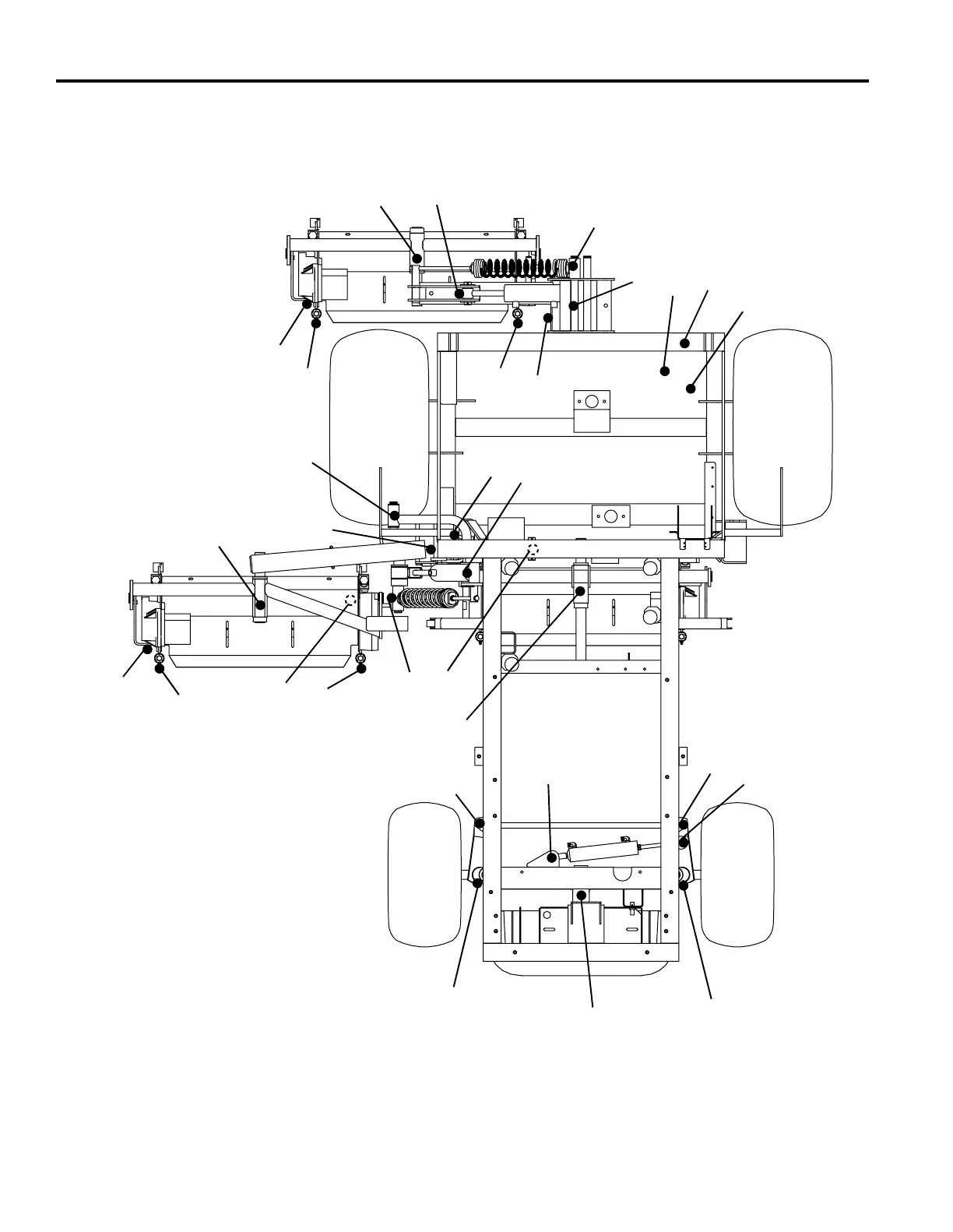

6.3 LUBRICATION CHART _____________________________________________________
1
Grease Fittings
F1 - 50 Hours (Every Week)
1 Lift Yoke (5 Fittings)
2 Lift Arm (5 Fittings)
3 Lift Cylinders (8 Fittings)
4 Lift Spring Pivot (5 Fittings)
5 Traction Cable Pivot (1 Fitting)
6 Traction Pedal Pivot (1 Fitting)
7 Ball Joint (2 Fittings)
8 Steering Pivot (2 Fittings)
9 Steering Cylinder (2 Fittings)
10 Axle Pivot (1 Fitting)
11 Belt Drive Idler Pivot (2 Fittings)
F2 - 50 Hours
12 Rear Reel Adjusters (10 Fittings)
F3 - 100 Hours
13 Reel Bearing Housings (10 Fittings)
1
1
2
2
3
3
3
4
4
4
5
6
7
8
8
9
9
10
11
12
12
12
12
13
13
13
7
3
2/3
