ADJUSTMENTS 3
15
3.14 STEERING TOE-IN _________________________________________________________
1. Turn wheels to straight ahead position.
2. Loosen jam nuts (J) on both sides of tie rod (M).
3. Turn tie rod (M) to provide proper toe-in. Toe-in must
not exceed +1/16 in. (1.5 mm) (K). Retighten jam nuts.
4. After adjusting tie rod, adjust steering cylinder by
threading the rod (N) in or out of ball joint so spindle
arm (L) clears the stop on the axle by 1/32 in. to
3/32 in. (0.8 to 2 mm) (O) when cylinder is fully
extended.

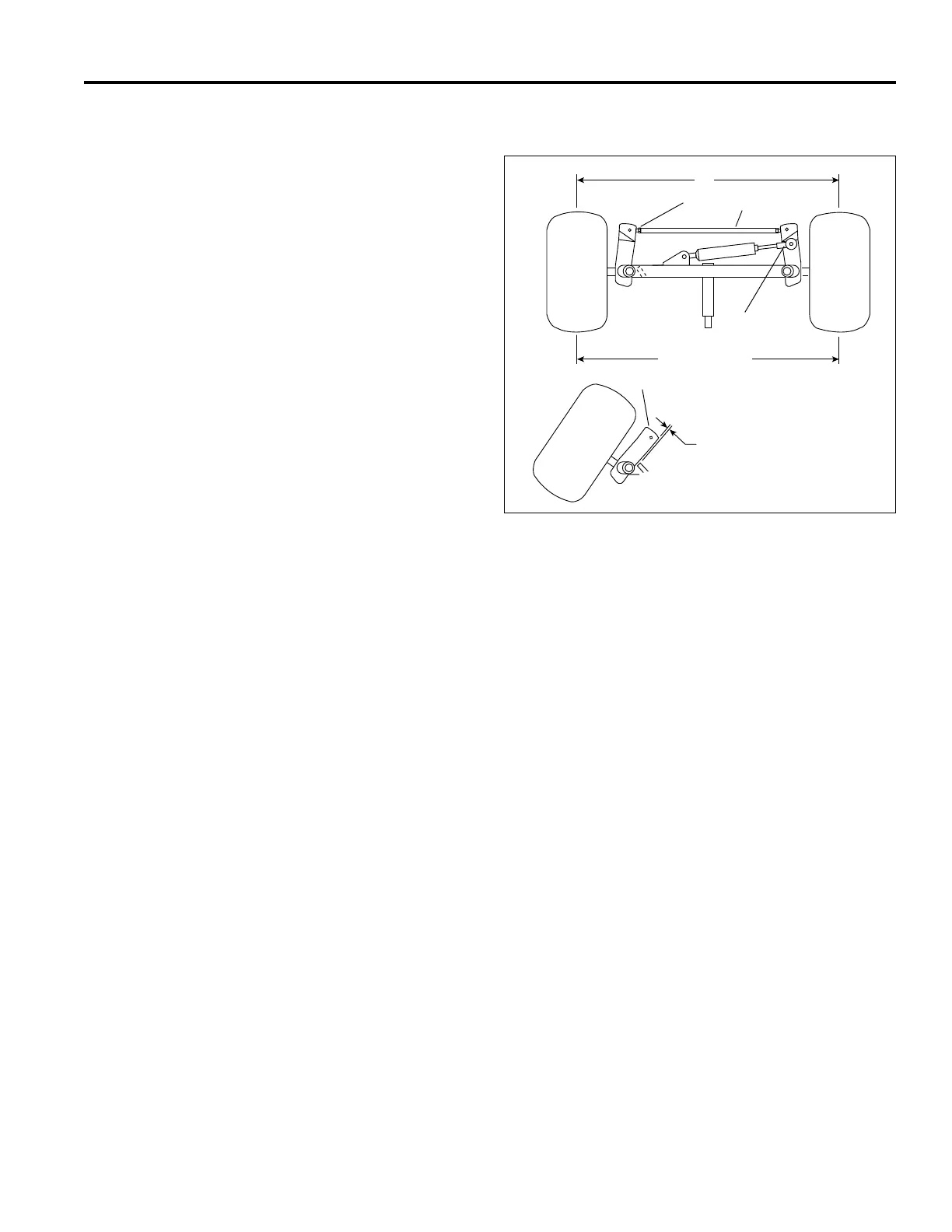

Figure 3N
1/32 - 3/32 in.
0.8 - 2 mm)
J
M
N
O
K
K +0 to1/16 in.
L
(+0 to 1.5 mm)
LF016
