2 SPECIFICATIONS
8
2 SPECIFICATIONS
2.1 PRODUCT IDENTIFICATION_________________________________________________
67978.............................. LF 550, 2WD with ROPS, uses 5
in. (12.7 cm) diameter reel
67979.............................. LF 550, 4WD with ROPS, uses 5
in. (12.7 cm) diameter reel
67981.............................. LF 570, 2WD with ROPS, uses 7
in. (17.8 cm) diameter reel
67982.............................. LF 570, 4WD with ROPS, uses 7
in. (17.8 cm) diameter reel
67980.............................. LF 550 Turbo, 4WD with ROPS,
uses 5 in. (12.7 cm) diameter reel
67983.............................. LF 570 Turbo, 4WD with ROPS,
uses 7 in. (17.8 cm) diameter reel

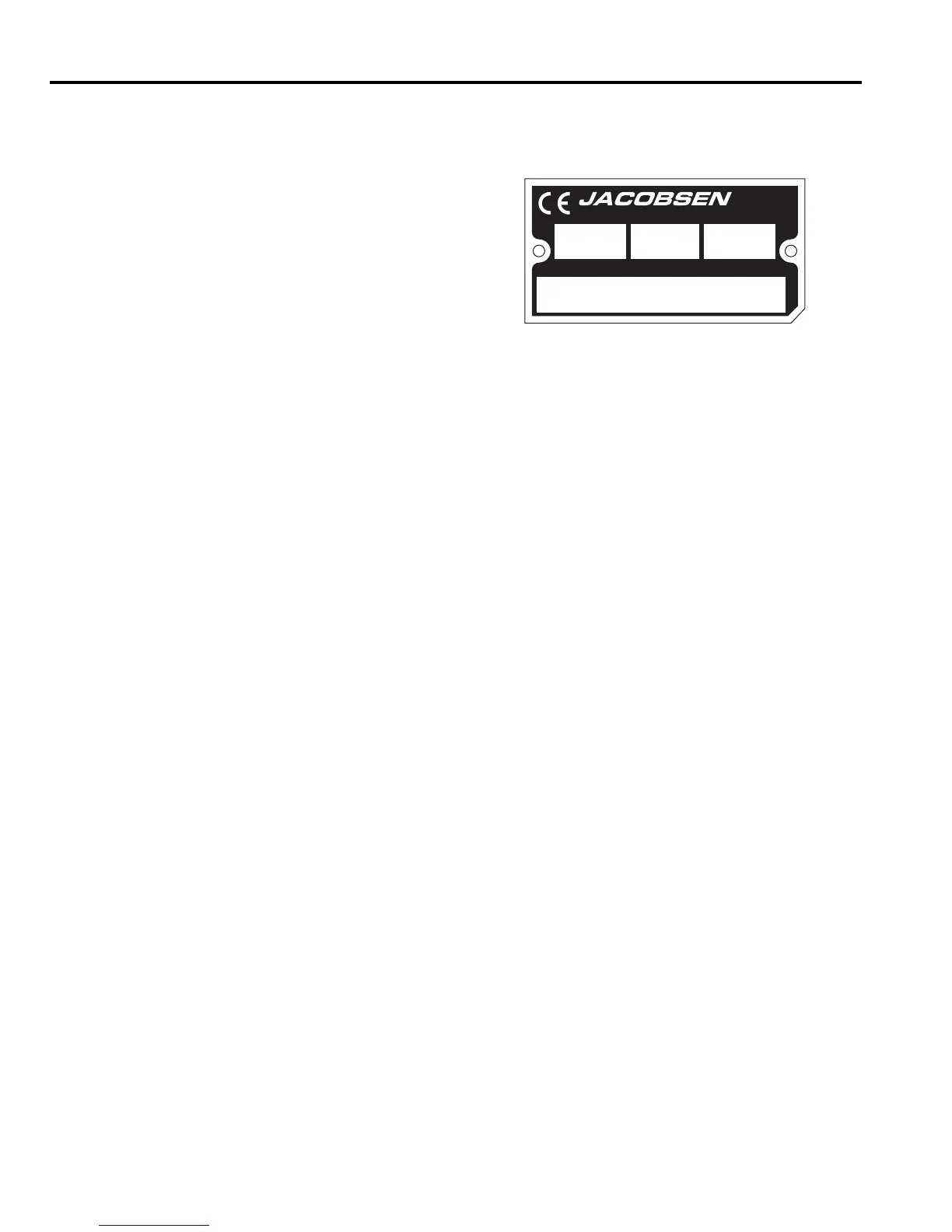

Serial Number ................ An identification plate, like the one
shown, listing the serial number, is
attached to the frame of the
mower and is located on the
operator’s right just over the rear
axle.
Always provide the serial number of the unit when ordering
replacement parts or requesting service information.
2.2 V1505-E3B ENGINE________________________________________________________
Make ............................... Kubota
Model .............................. V1505-E3B diesel, 4 cycle, liquid
Cooled
Horsepower .................... 35.5 Hp (26.4 Kw) @ 3000 rpm
Displacement .................. 91.4 in.
3
(1498 cm
3
)
Torque............................. 73 ft. lbs. (99 Nm) @ 2100 rpm
Fuel:
Type .................................#2, low or ultra-low sulfur,
diesel
Rating ..............................Min. cetane rating 45
Capacity........................... 17 U.S gal. (64.3 liters)
Governor Setting:
High Idle .......................... 3150 rpm
Low Idle ........................... 1200 rpm
Lubrication:
Capacity........................... 5 U.S. qts. (4.7 liter)
Type................................. SAE 10W30
API Classification............. CD/CE
Air Filter .......................... Donaldson, dry type with
evacuator valve and service
indicator
Alternator........................ 40 Amp
2.3 V1505-T-E3B ENGINE ______________________________________________________
Make ............................... Kubota
Model .............................. V-1505T-E3B diesel, 4 cycle,
liquid cooled
Horsepower .................... 44.2 Hp (33.0 Kw) @ 3000 rpm
Displacement .................. 91.4 in.
3
(1498 cm
3
)
Torque............................. 93 ft. lbs. (1357 Nm)
Fuel:
Type .................................#2, low or ultra-low sulfur,
diesel
Rating ..............................Min. cetane rating 45
Capacity........................... 17 U.S gal. (64.3 liters)
Governor Setting:
High Idle .......................... 3150 rpm
Low Idle ........................... 1200 rpm
Lubrication:
Capacity........................... 5 U.S. qts. (4.7 liter)
Type................................. SAE 10W30
API Classification............. CD/CE
Air Filter .......................... Donaldson, dry type with
evacuator valve and service
indicator
Alternator........................ 40 Amp
11524 WILMAR BLVD,
CHARLOTTE, NC 28273
®
kg kW
1-800-848-1636 (US)
PRODUCT OF U.S.A.
A Textron Company
XXXX
6797901601
25.01287
