Jacobsen LF570 - Reel Valve

135
> Change from previous revision
1
2
10
3
4
5
5
6
6
7
8
9
LF 570

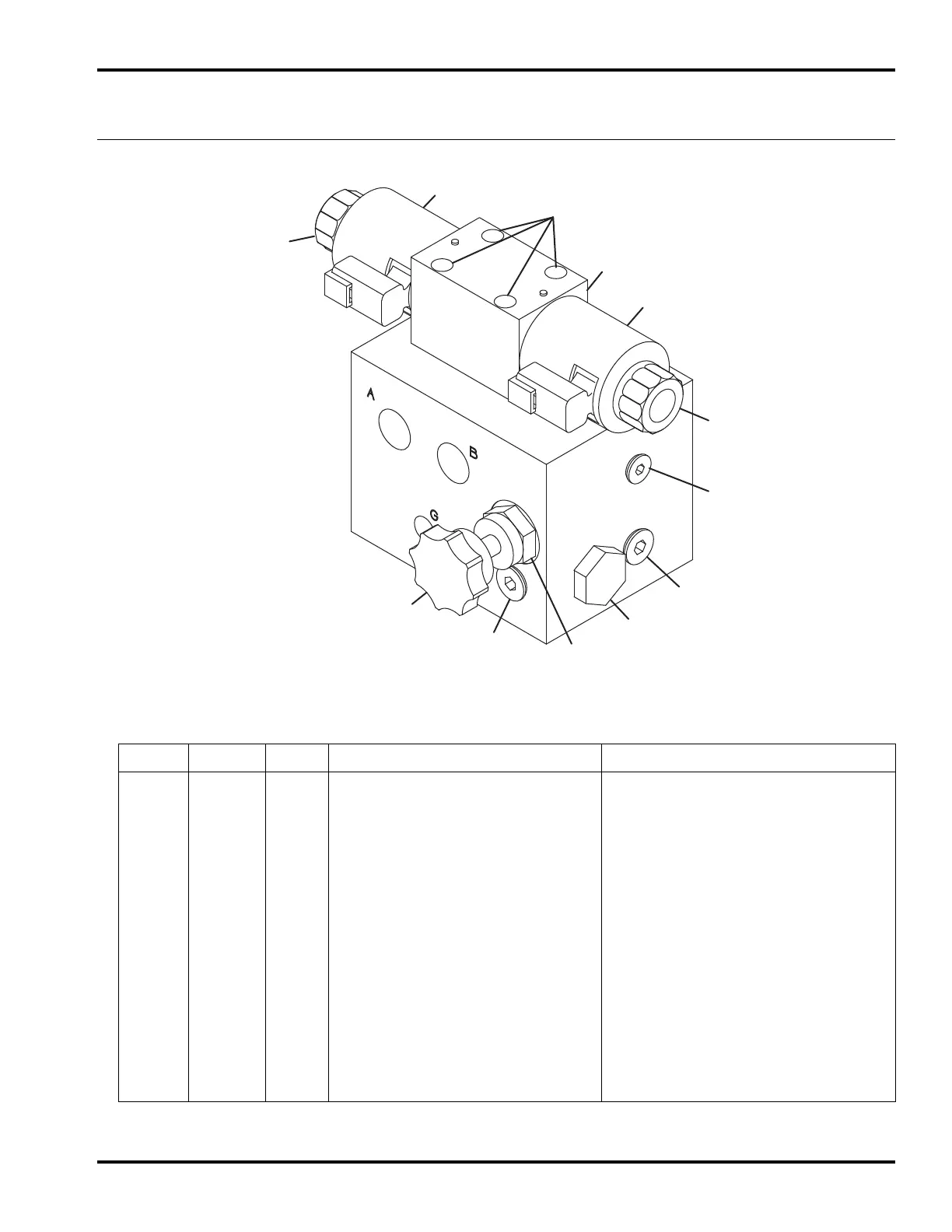

41.1 Reel Valve
Part Number 4195041
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
5003080 1 Flow Control
5003579 1 • Flow Control Seal Kit
2 4136815 1 Solenoid Valve
339909 4 • O-Ring
3 4135552 1 Coil REFERENCE K-3 and K-4, See 48.1
4 5002157 3 Port Plug
5 5001065 3 Port Plug
6 4136814 2 Nut, Coil, with “O”-Ring
7 4105980 1 Knob, Flow Control
8 4143527 4 Bolt, D03 Service Short
9 NS 1 Cavity Plug
5003579 1 • Seal Kit
10 4200060 1 Coil REFERENCE K-7 and K-8, See 48.1
