Jacobsen LF570 - Rear Wheel Motor

137
> Change from previous revision
1
2
3
4
5
6
7
8
2
2
2
9
10
11
LF 570

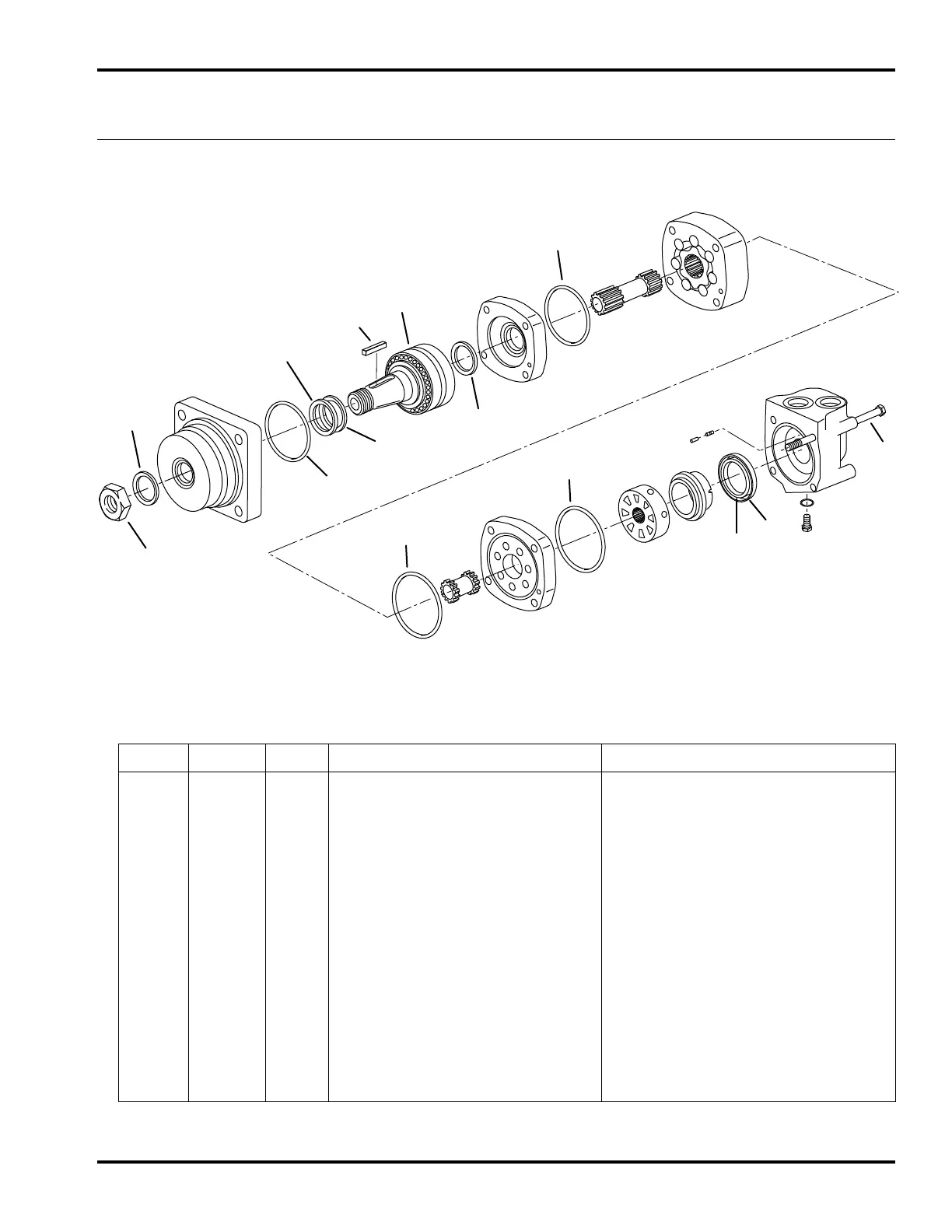

43.1 Rear Wheel Motor
Part Number 4178560
Serial No. 67979 - All
Serial No. 67980 - All
Serial No. 67982 - All
Serial No. 67983 - All
Item Part No. Qty. Description Serial Numbers/Notes
1
1 Seal Exclusion
2 4 Seal, 3” I.D.
3 1 Back Up Ring
4 1 Shaft Seal
5 5003384 1 Shaft and Bearing Kit
6 554780 1 Key
7 554779 1 Hex Nut
8 1 Shaft Face Seal
9 1 Inner Face Seal
10 1 Outer Face Seal
11 556450 4 Bolt
4178561 1 Rear Seal Kit
4178562 1 Front Seal Kit
