Jacobsen R-311T User Manual

3 CONTROLS
en-12
A. Tilt Steering Lever
Pull lever up to release steering column. Tilt
column up or down to position desired. Release
lever to lock steering column in place.
B. Traction Pedal
Press front of pedal (B
1
) down for forward travel.
Release pedal to slow mower and stop.
Press rear of pedal (B
2
) down for reverse travel.
Release pedal to slow mower and stop. Allow mower to
come to a complete stop before reversing directions.

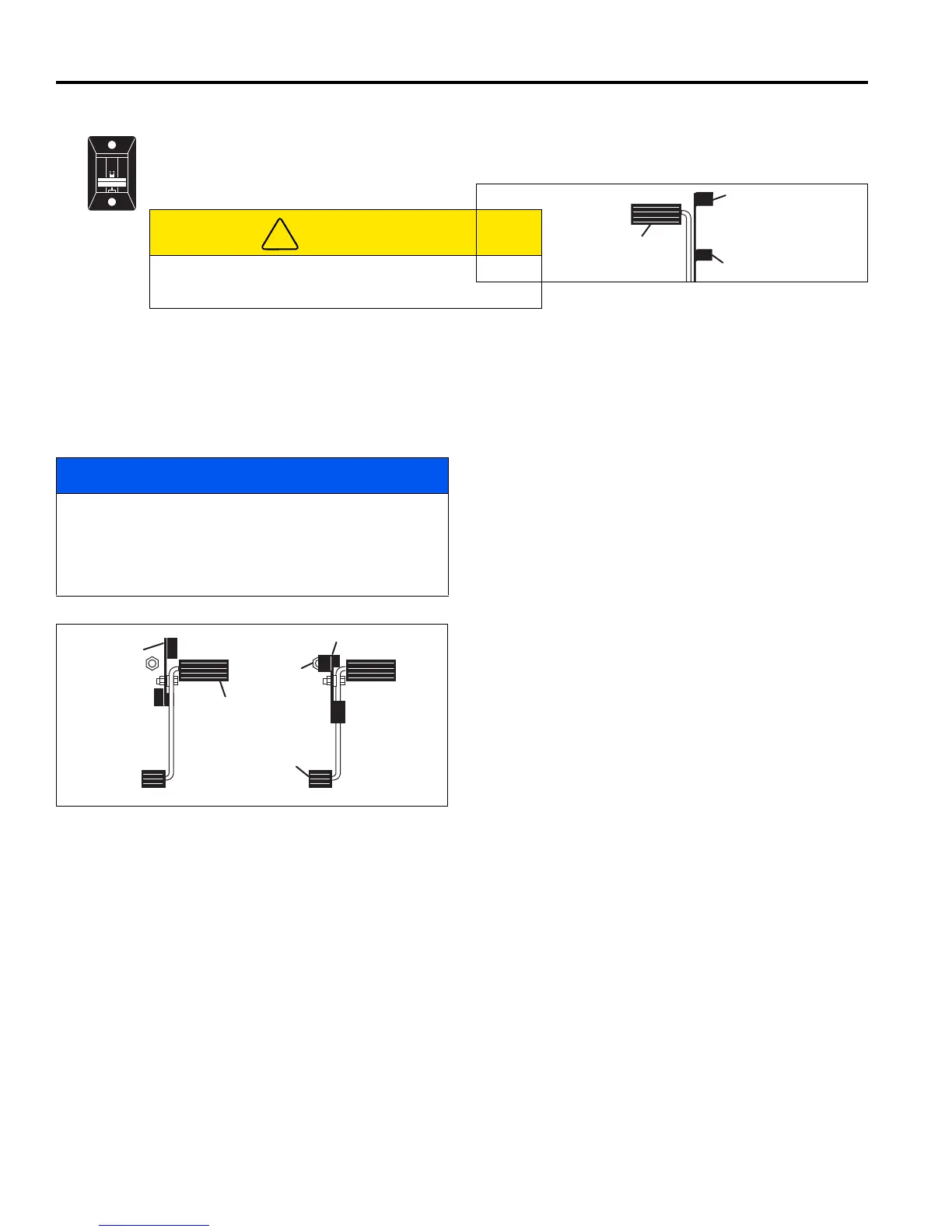

Figure 3A
C. Mow Speed Stop
Limits forward speed while mowing. To operate at lower
travel speed while mowing, rotate lever (Position C
1
)
so it contacts stop screw on floor board when forward
travel pedal is pressed. To travel at full speed, set lever
in position shown (Position C
3
). Stop screw (C
2
) can
be adjusted to set specific mow speeds. See Parts &
Maintenance Manual.
D. Brake Pedal
Press pedal down to slow or stop the machine and to
disengage cruise control. Never press both service
brake pedal and traction pedal at the same time.
Figure 3B
E. Parking Brake Lock/Release
To lock parking brake, hold brake pedal (C) down and
press lock (E
1
) until it engages. To disengage, press
brake pedal release (E
2
).
F. Weight Transfer
Used to adjust the ground pressure of the decks. See
Parts & Maintenance Manual.
G. Seat Tilt Lever
Used to adjust the rear seat angle. Lift up on lever and tilt
seat back as required until seat is in the desired
position. Release the lever to lock the seat in position.
H. Transport Latches
Used to prevent accidental lowering of the wing cutting
units during transport.
I. Horn/Test Switch
Used to sound horn and test system warning lights.
Depress switch, horn should sound and all warning
lights, except for glow plug, engine oil and charge
pressure, should light.
CAUTION
Never adjust steering while mower is moving. Stop unit
and engage parking brake switch before adjusting.
NOTICE
Engine will stop if traction pedal is depressed in either
direction with the parking brake engaged.
Disengage parking braked before attempting to drive
mower.
!
B
1
B
2
C
1
C
2
C
3
Transport Speed Mow Speed
E
1
E
2
D
