4 SET-UP
GB-10
4 Set-up
4.1 GENERAL________________________________________________________________
The set-up and testing of the unit should always be
performed by a trained technician, familiar with the
operation of this equipment.
Read each instruction completely and make sure you
understand it before proceeding with the assembly. Stay
alert for potential hazards and obey all safety
precautions.
The RIGHT and LEFT, FRONT and REAR of the
machine are referenced from the operator’s seat, facing
forward.
Accessories not included with this product must be
ordered separately. See instructions provided with
accessory for installation and parts.
4.2 INITIAL INSPECTION_______________________________________________________
1. Perform a visual inspection of the entire unit, look for
signs of wear, loose hardware, and components that
may have been damaged during transport.
2. Inspect paint and decals for damage or scratches.
Decals provide important operaing and safety
information. Replace all missing or hard to read
decals.
3. All fluids must be at the full level mark with engine
cold
Check :
a. Radiator coolant level
b. Engine oil level
c. Hydraulic fluid level
4. Make sure air filter connections are tight and cover
is securely in place.
5. Check tires for proper inflation. Tires have been
over inflated for transport. Correct tire pressure
should be set to 10 psi.
6. Check belt tension.
[Section 5.2]
7. Inspect battery connections and electrolyte level.
Check that battery is fully charged.
8. Check for fuel or oil leaks.
1. Inspect lube points on reels and tractor for proper
lubrication.
[Section 7.2]
4.3 REELS __________________________________________________________________
1. If installing five inch reels, apply Moly EP grease to
female spline on reel, and insert reel coupler (A) into
the bearing housing before attaching reel motor.

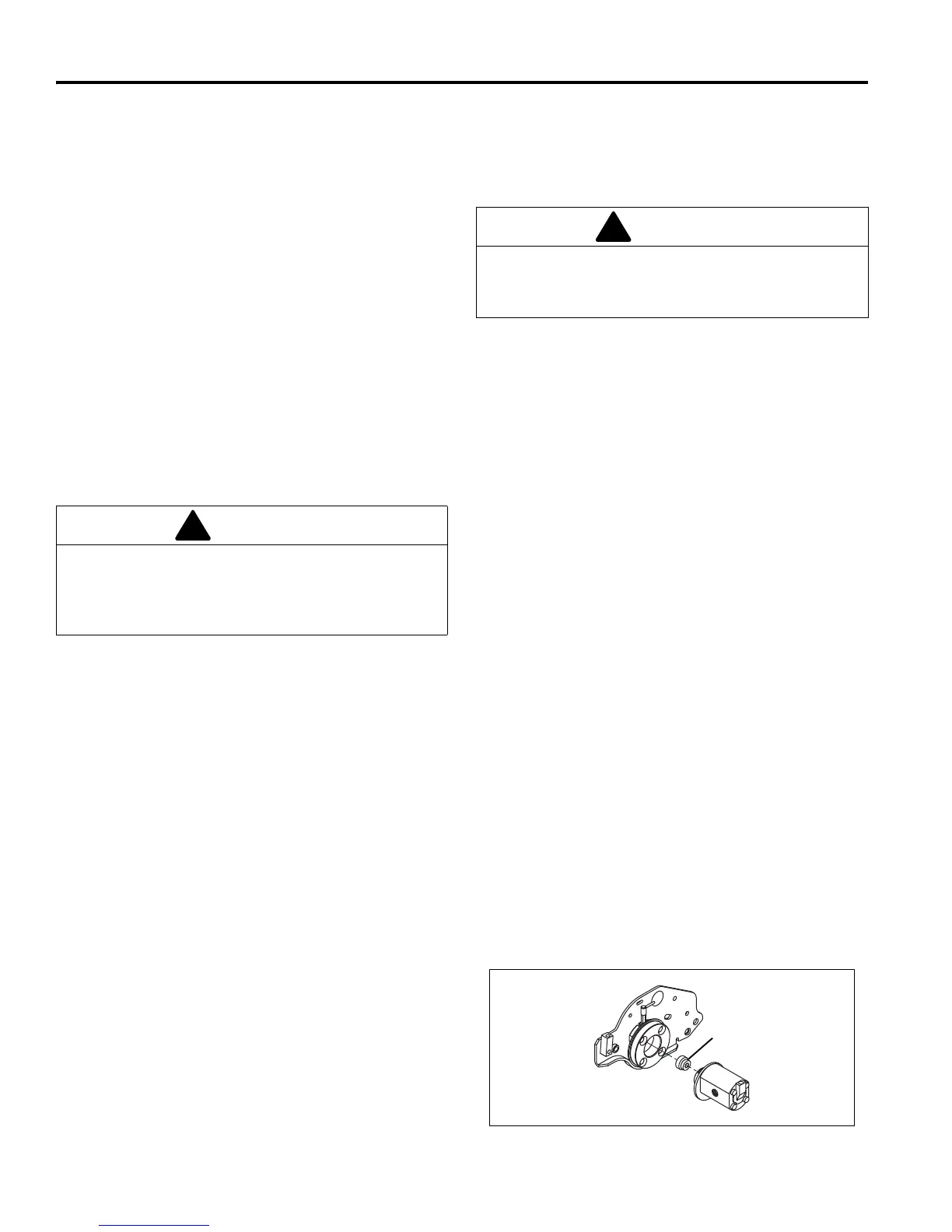

Figure 4A
CAUTION
Do not attempt to drive the tractor unless you are
familiar with this type of equipment and know how to
operate all controls correctly.
CAUTION
The initial inspection should be performed only when
the engine is off and all fluids are cold. Lower
implements to the ground, engage parking brake, stop
engine and remove ignition key.
A
To Next Page
