6.1P MULTI-FUNCTION GAUGE(Prior to s/n
FG000568 / EJ000763)
The various functions can be selected using the left
hand button
The fuel level is displayed on a digital bargraph in the
upper segment of the display. The clock, time to service
and hourmeter is displayed in the lower segment of the
display in numeric format.
Low fuel level
The bargraph, black fuel pump symbol and red LED
above warning triangle will flash
Service Required
The black spanner symbol and red LED above warning
triangle will flash

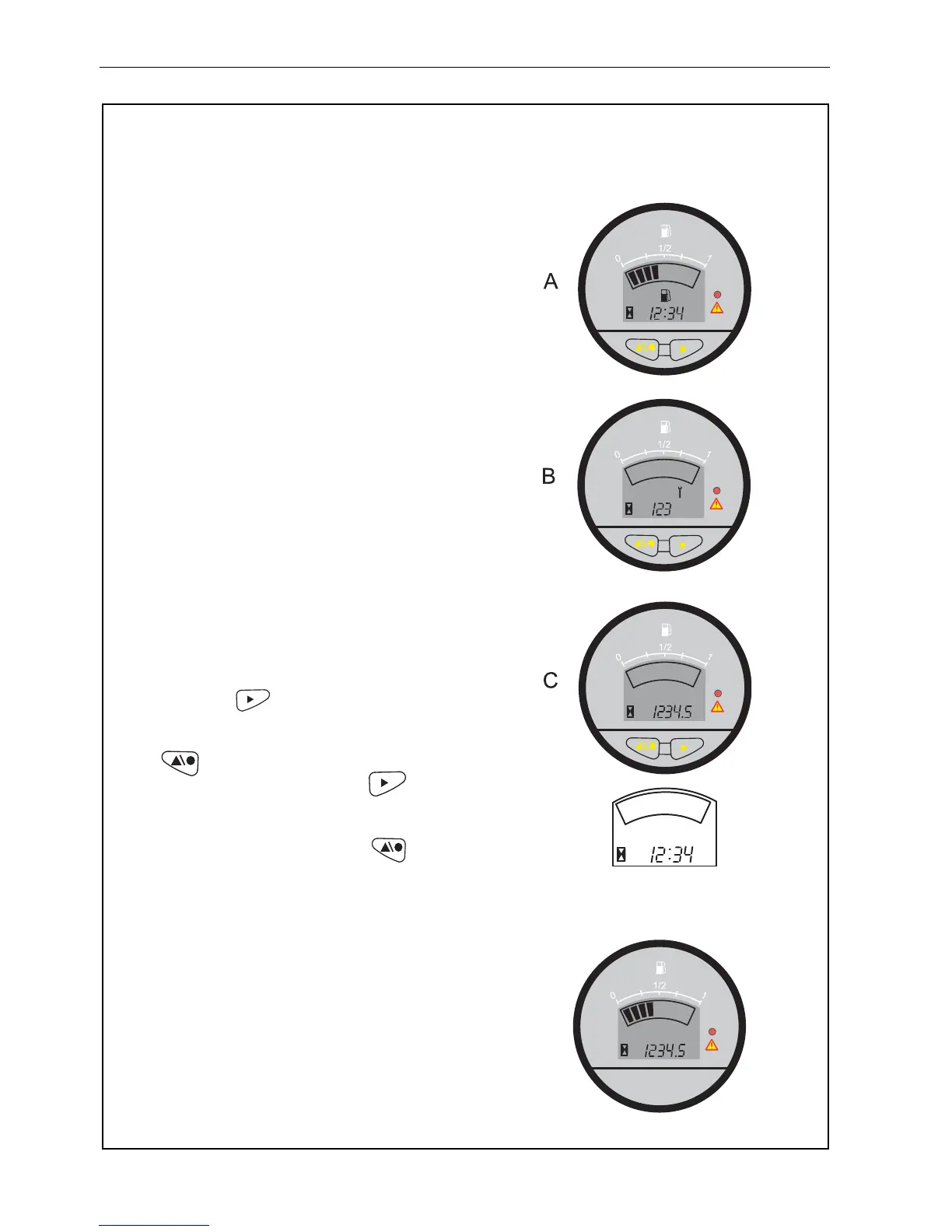

A. Clock Function / Fuel Gauge
Function
B. Time To Service Function
C. Total Hours Function
Setting the Time-Of-Day Clock
The display will flash the two “HOURS” digits. Press
the right button to increment by one hour, or
hold the button to increment continuosly. When the
desired number of hours is reached, press the left
button once. The display will flash the two
“minutes” digits. Press the right button to
increment by onr minute or hold the button to
increment continusly. When the desired number of
minutes is reached, press the left button once.
MULTI-FUNCTION GAUGE(From s/n FG000568 /
EJ000763)
The gauge has no adjusting or setting buttons and
displays fuel level and total hours
6 CONTROLS
