CABLE COLOUR CODE
RRed
G Green
O Orange
SGrey
BBlack
WWhite
KPink
P Violet
YYellow
UBlue
NBrown
LG Light Green
E.G. R/W = Red/White

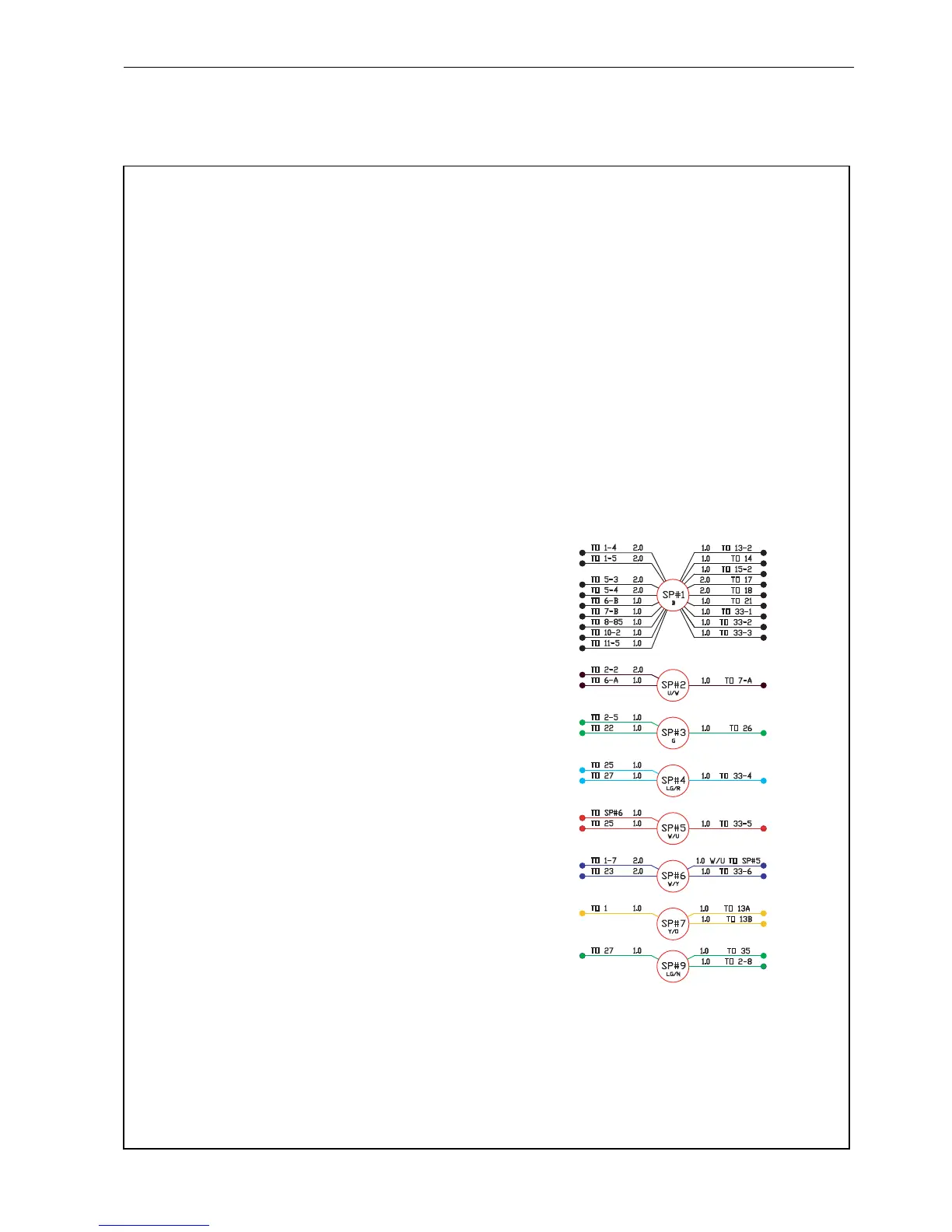

Main Harness Splices
KEY TO WIRING DIAGRAM
1 Split to Console
2 Split to Console
3 Split to Console
4 Glow Plugs
5 Split to Cab
6 Working Lamp
7 Working lamp
8 Glow Plug Relay
9 Brake Solenoid
10 Lower Solenoid
11 Cutter Solenoid
12 Engine Oil Pressure Switch
13a Weight Transfer Solenoid
13b Weight Transfer Solenoid
14 Fuel Level Sender
15 Raise Solenoid
16 Seat Switch
17 Accessory Socket 1
18 Accessory Socket 2
19 Hydraulic Oil Filter Switch
20 Engine Temperature Switch
21 Horn
22 Alternator Rotor
23 Starter Solenoid
24 Back Start Connector (not used)
25 Fuel Solenoid
26 Fuel Pump
27 Brake Safety Switch
28 Glow Plug Fuse Connector
29 Glow Plug Fuse Connector
30 Alternator O/P
31 Cab Fuse Connector
32 Cab Fuse Connector
33 Diode Module
34 Starter Main Terminal
35 Backlap Selector Switch
36 Neutral Switch Bypass
SCHEMATICS 12
