Jacobsen TR330 User Manual

73
> Change from previous revision
TR330
Item Part No. Qty. Description Serial Numbers/Notes
1
5003080 1 Flow Control
5003579 1 • Flow Control Seal Kit
2 4136815 1 Solenoid Valve
339909 4 • O-Ring
3 4135552 1 Coil REFERENCE SOL1/2, See 46.1
4 5002157 3 Port Plug
5 5001065 3 Port Plug
6 4136814 2 Nut, Coil, with “O”-Ring Torque to 13.6 Nm (10 ft. lb)
7 4105980 1 Knob, Flow Control
8 4143527 4 Bolt, D03 Service Short
9 4355569 1 Relief Valve, 3500 PSI
5003579 1 • Seal Kit
10 4200060 1 Coil REFERENCE SOL3/4, See 46.1

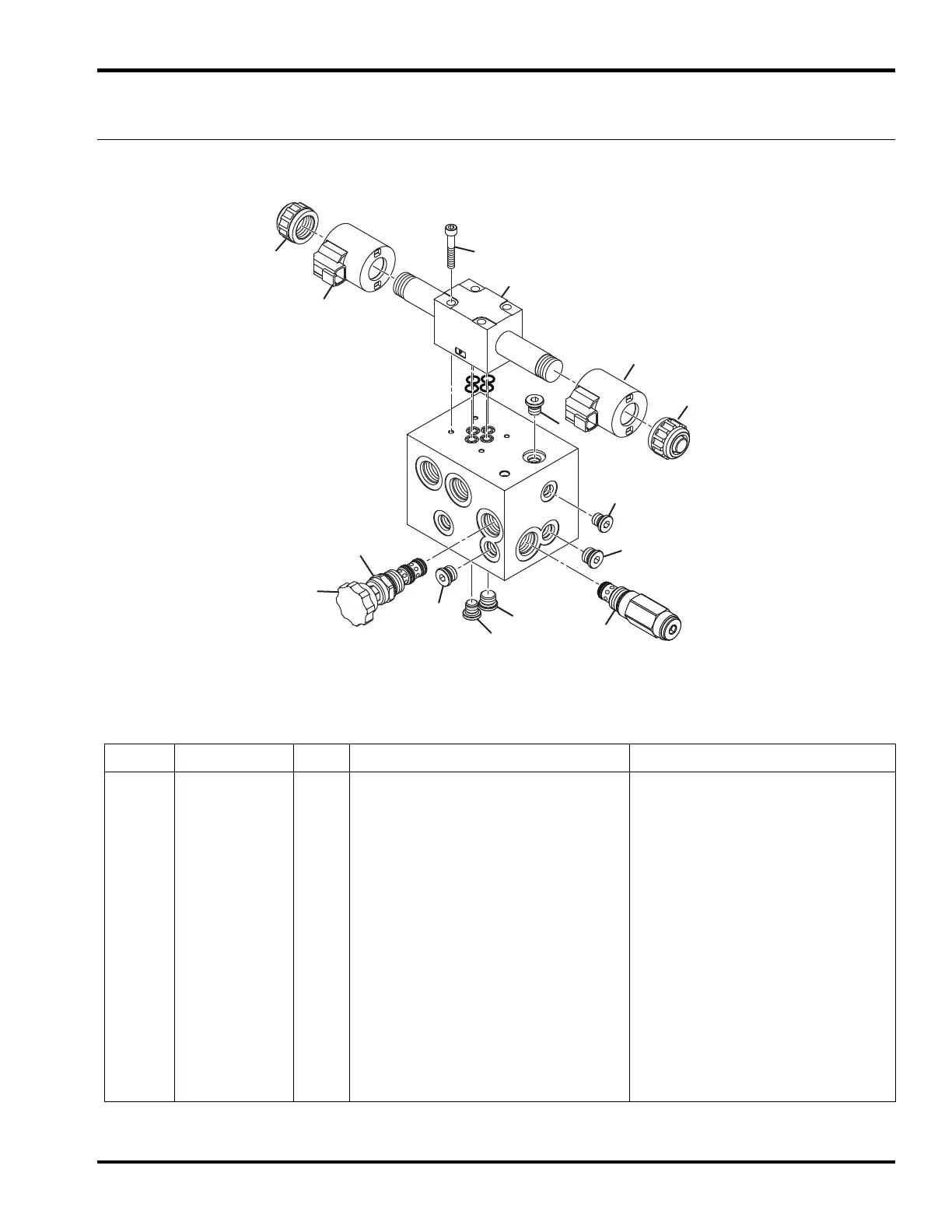

36.1Reel Valve
Part Number 4355571
Serial No. All
1
2
3
4
4
4
5
5
5
6
6
7
8
10
9
