75
> Change from previous revision
TR330
Item Part No. Qty. Description Serial Numbers/Notes
1
N/S 1 Front Cover
2 N/S 2 Seal, Shaft Included in seal kit
3 N/S 1 Snap Ring
4 N/S 1 Back Up Washer
5 N/S 2 Seal, Section Included in seal kit
6 N/S 2 Anti-Extrusion Included in seal kit
7 N/S 2 Seal, Thrust Plate Included in seal kit
8 N/S 2 Thrust Plate
9N/S1Gear Set
10 N/S 2 Dowel Pin
11 N/S 1 Body, Motor
12 N/S 1 Rear Cover
13 N/S 4 Screw, M8 x 115 mm SHCS
14 N/S 4 Flat Washer
A809615 1 Seat Kit

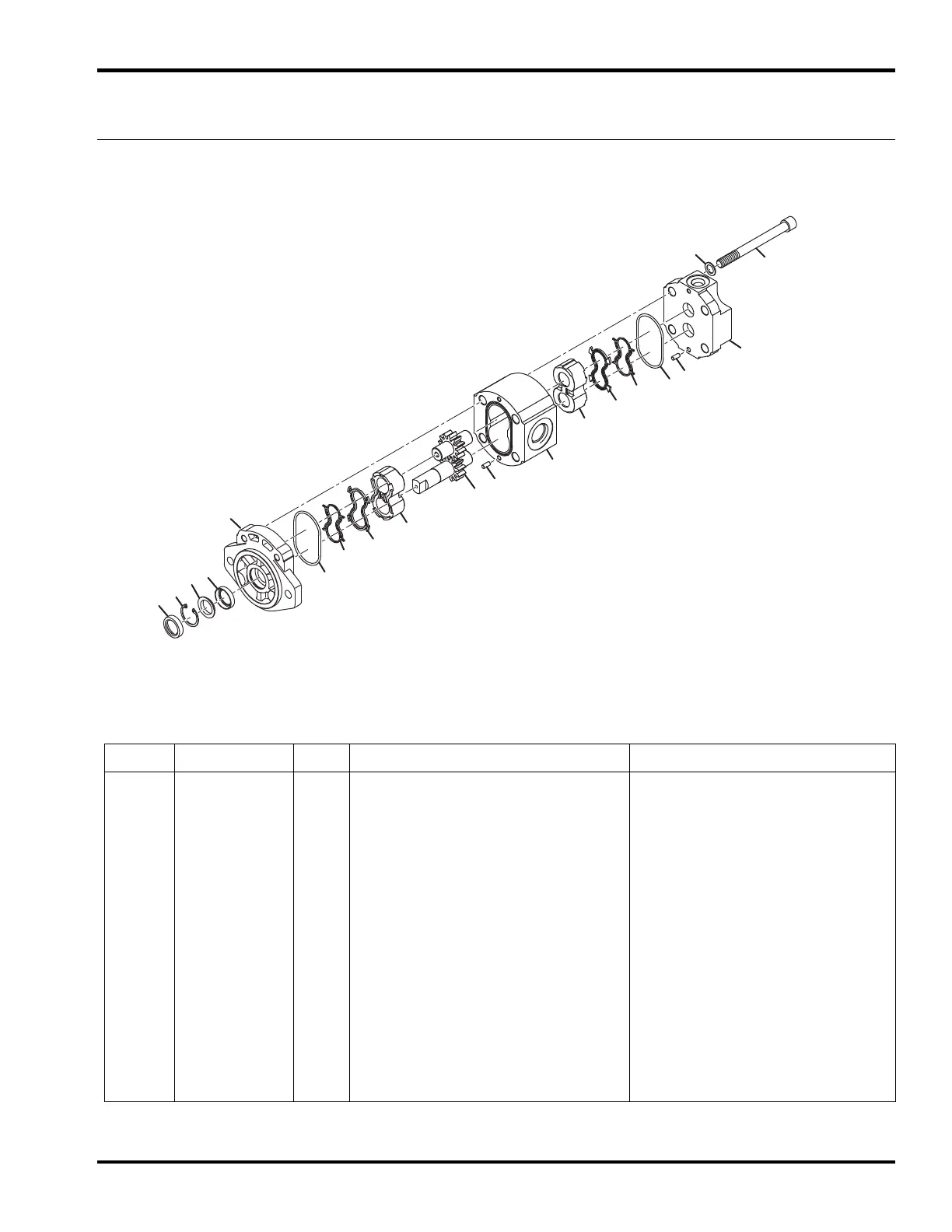

38.1 Reel Motor
Part Number 4140034
Serial No. All
1
2
3
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
2
10
