Jacobsen TR330 User Manual

72
TR330

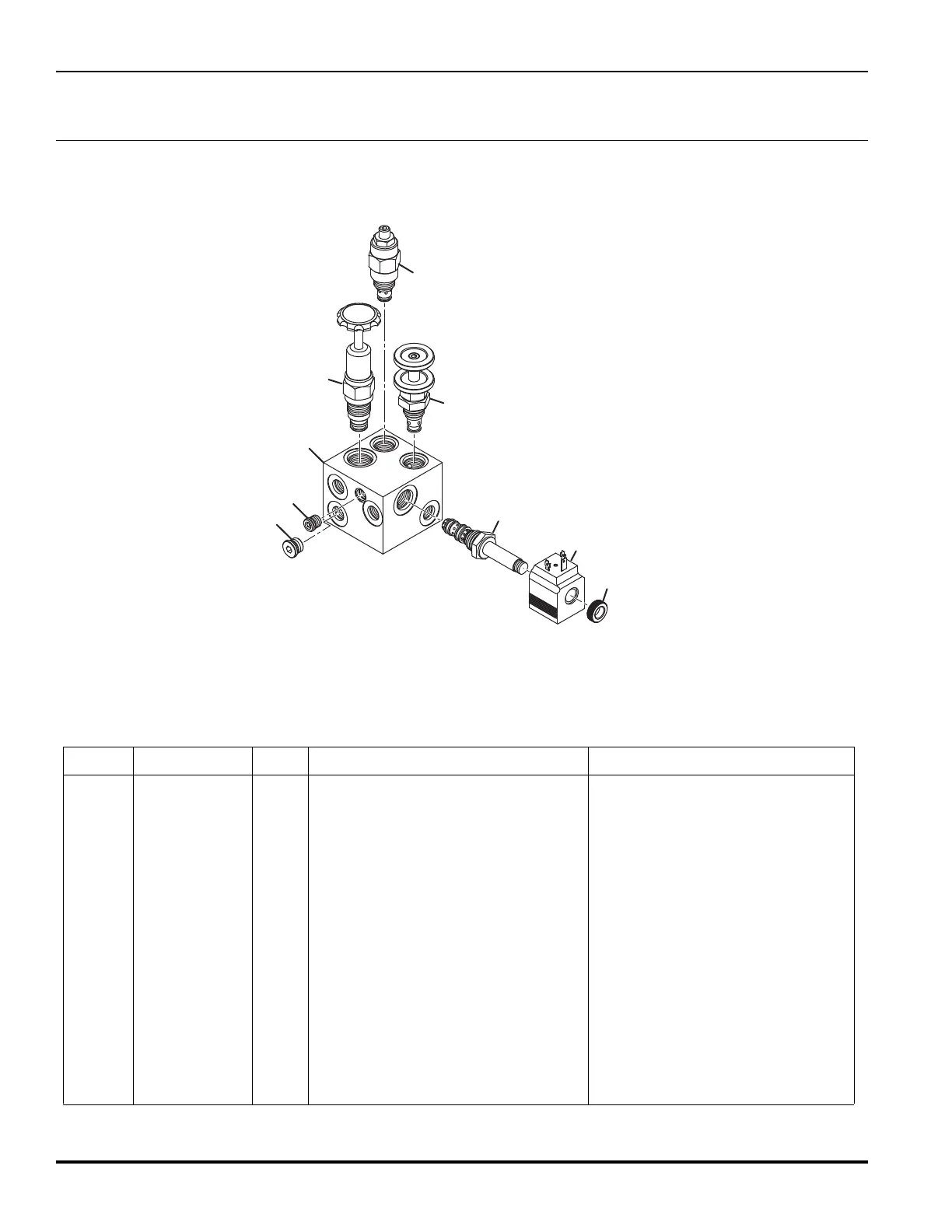

35.1 Brake Valve
Part Number 4201021
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
N/S 1 Block, Manifold
2 4259424 1 Hand Pump Torque to 40 Nm (29.5 ft. lb)
● 4375543 1 • Seal Kit
3 4280751 1 Valve, Solenoid Torque to 30 Nm (22 ft. lb)
● 4375546 1 • Seal Kit
4 4171444 1 • Coil REFERENCE SOL8, See 46.1
5 4375542 1 • Nut, Coil Torque to 3.4 Nm (2.5 ft. lb)
6 4280752 1 Valve, Needle Torque to 20 Nm (14.7 ft. lb)
● 4375547 1 • Seal Kit
7 4369147 1 Valve, 507 psi Relief Torque to 45 Nm (33 ft. lb)
● 4375544 1 • Seal Kit
● 4369350 1 Seal Kit
8 3010199 1 Plug, -6 ORB Not included with valve
339897 1 • O-Ring, -6 ORB
9 4375646 1 Locknut, Brake Valve
1
8
9
2
3
4
5
6
7
