6
600 Series
Turfcat
Tractors
4. ATTACH DECK TO TRACTOR
a) Unpack the deck mounting kit.
b) Roll the deck in place under the tractor.
c) Lay push arms from the kit between the deck
hanger brackets.
d) Move the deck toward the tractor while sliding the
splined sections of the PTO shaft together. Make
sure the blocked off section of the shaft is aligned
with the missing spline in the tube.
e) Once the PTO halves are fully together, line up the
hole at the end of each push arm with mating
holes in the brackets. Insert pin P for each push
arm. Secure push arm pins at each end with
(2) 5/16-18 X 7/8 bolts and (2) 5/16-18 nuts.

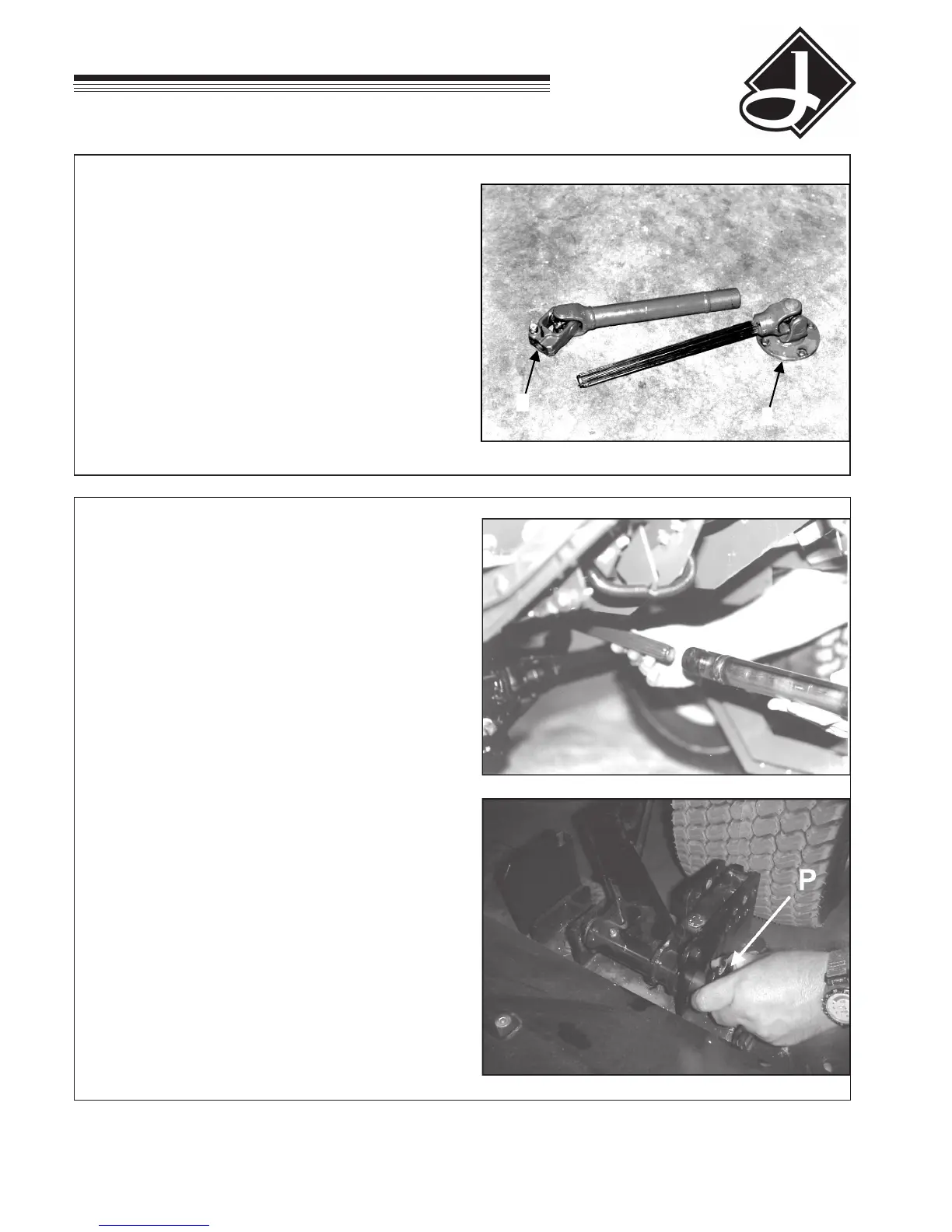

3. PREPARE PTO SHAFT SECTIONS
a) Pull apart the two sections of the PTO drive shaft.
NOTE: The PTO shaft and tube sections fit
together only one way, with a blocked off area
between two external splines fitting into a missing
spline in the tube.
b) Attach flange F on the shaft section to the tractor
with four 3/8-16x1-1/4 screws and lockwashers.
c) Slide coupling G of the tube section over deck
gearbox shaft. Tighten on shaft securely.
G
F
ASSEMBLY & SETUP
