6 CONTROLS
en-23

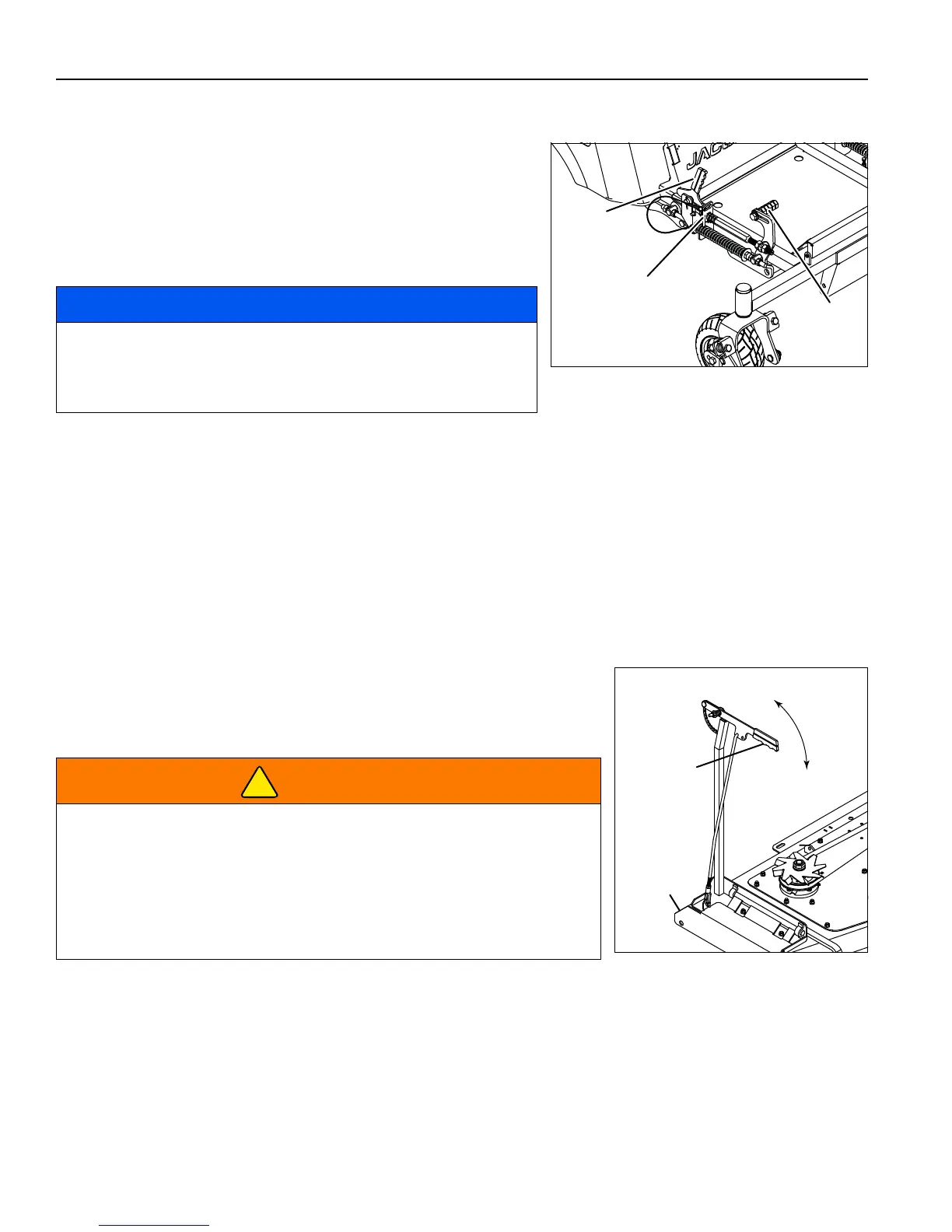

6.5 CUTTING UNIT HOC PEDAL_________________________________________________
The cutting unit height of cut (HOC) pedal lifts and lowers the cutting
unit.
Install the HOC plate in the correct position for the cutting height. To
lower the cutting unit, press the pedal down, push the lift stop lever
forward and slowly allow the pedal to lift until the HOC plate touches
the lift stop. See 7.7 for the HOC plate position chart.
To lift the cutting unit, fully push the HOC pedal and pull the lift stop lever toward the seat. Release the lift pedal.
6.6 LIFT STOP LEVER_________________________________________________________
The lift stop lever is used to hold the cutting unit in the fully raised position and the desired HOC.
To lift the cutting unit, fully push the HOC pedal and pull the lift stop lever toward the seat. Release the lift pedal. The
rear part of the lift stop lever will hold the cutting unit in the fully raised position.
To lower the cutting unit, push on the pedal to release the pressure on the lift stop lever and push the lift stop lever
forward. When the cutting unit is lowered, the HOC plate will contact the front part of the lift stop lever.
6.7 OPERATOR CONTROLLED DISCHARGE CHUTE _______________________________
The operator controlled discharge chute (OCDC) lever opens and closes the
discharge chute. When you mow around flower beds or edges of paths, the
discharge chute can be closed to limit the discharge. Never mow with the
discharge deflector removed.
NOTICE
To prevent damage to the HOC mechanism or the cutting unit,
slowly allow the pedal to lift until the HOC plate touches the lift
stop. Do not allow the cutting unit to drop from the lifted position
against the HOC plate.
WARNING
The operator must be careful of persons and objects near the mower. Do not
release the cut grass in the direction of persons or allow persons near the
mower while in operation.
Never operate the mover with the discharge chute removed. The cutting unit
can discharge objects for long distances with the discharge chute removed.
Remember that the operator and/or owner are responsible for accidents or
hazards that occur to other persons or their property.
Lift Stop
Lever
HOC
Plate
HOC
Pedal
OCDC
Lever
Open
Closed
Discharge
Chute
!
