MAINTENANCE 9
en-46
9.19 BELTS ___________________________________________________________________
Replace the belts if they show signs of cuts, tears, burns caused by slipping or excessive wear.

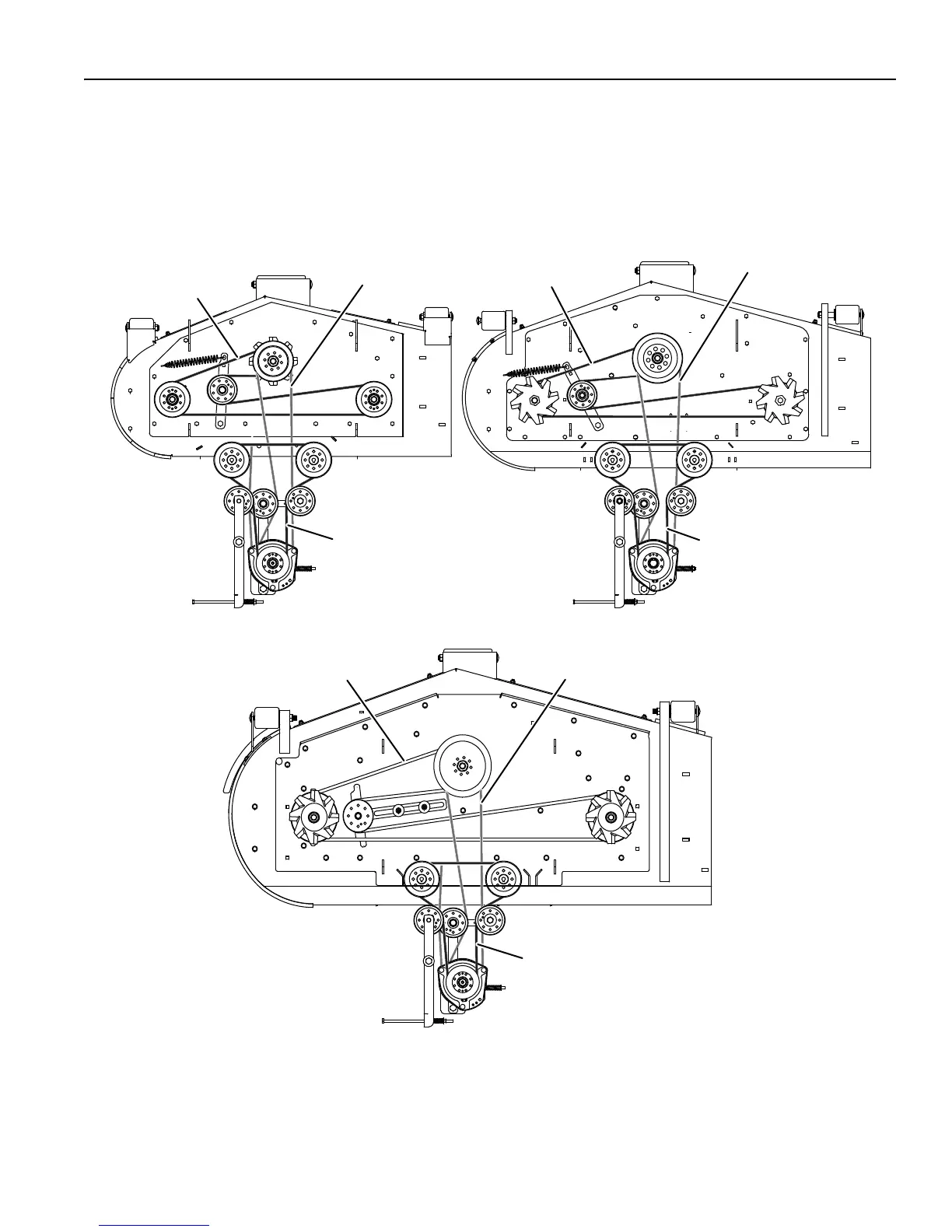

To remove the belts, reduce belt tension by pulling the idler pulley away from the belt. Note the belt routing and remove
the belts from the pulleys. The new belt must use the same belt routing.
60 Inch (152 cm) Deck
Belt Routing
50 Inch (127 cm) Deck
Belt Routing
Engine to Deck
Belt
Engine to Deck
Belt
Deck
Belt
Deck
Belt
Traction Pump
Belt
Tra c t i o n P u m p
Belt
Traction Pump
Belt
Deck
Belt
Engine to Deck
Belt
72 Inch (183 cm) Deck
Belt Routing
To Next Page
