Jacto X-15 User Manual

Tank
Lance
Trigger
Valve
ATTENTION: Be careful when taking the sprayer out of the carton because the lever
is loose and cause damage or personal injury.

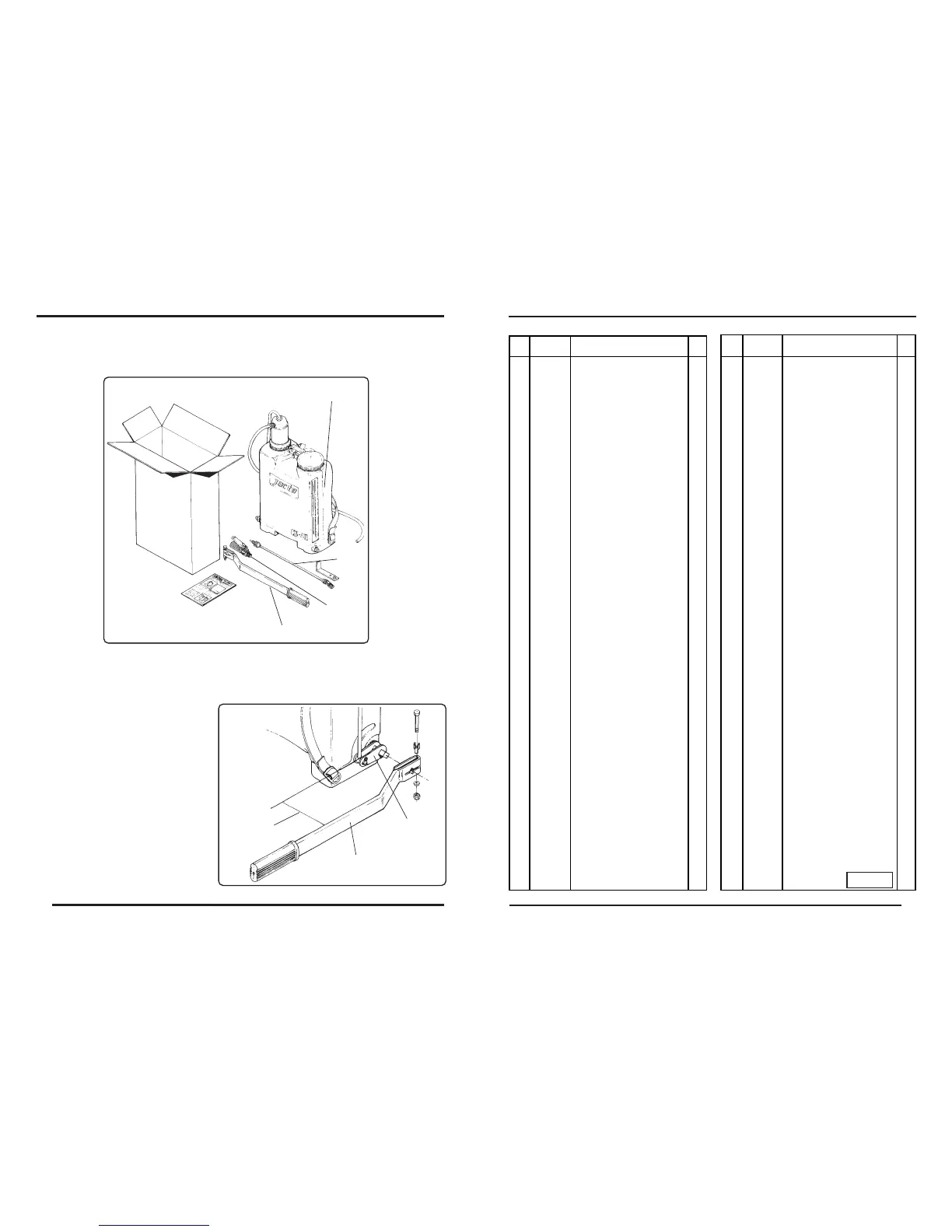

4- ASSEMBLY PROCEDURES
Take out of the sprayer carton the following parts.
02
Lever
5- INSTALL THE PUMPING LEVER
- Choose the appropriate side to
install the pumping lever (right or
left).
- Press the compensation chamber.
- Install the lever on the shaft linkage
and tighten the bolt.
NOTE: As reference, use the shaft
linkage that must be parallel to the
pumping lever.
Shaft
linkage
Parallel
Pumping
lever
Description
Item
Description
Item
Part no.
Qtd
Qtd
Part no.
LLM-199
00 X-15 -
01 214486 Pumpin rod assembly 01
02 925800 Lance holders set 01
03 417261 Chamber 01
04 560672 Gasket holder 01
05 560581 Gasket 01
06 915769 Lance assembly
(includes:ref.32, 33 and 44) 01
07 050195 Seal washer 02
08 229278 Strap assembly (includes:
ref. 10, 15, 16, 24) 01
09 214619 Agitator 01
10 012120 Shoulder protector 02
11 560573 Diaphragm 03
12 214585 Piston cup ø 45 x 12 01
13 630749 Piston cup fastener with
diaphragm 01
14 630731 Cylinder with diaphragm 01
15 229286 Buckles set (includes: 2
locks) 01
16 120154 Lock 02
17 002683 Handgrip 01
18 630723 Lever (includes: ref. 17
and 19) 01
19 925818 Bolt assembly 01
20 925826 Pin with cotter pin 01
21 214627 Lever shaft 01
22 336503 Self-locking screw
14 x 7/8" 02
23 630756 Bushings set 01
24 214817 Strap catch 01
25 357848 Chamber assembly 01
26 071308 Dip tube assembly 01
27 942193 Screw cap S-20 x 1.5 01
28 654921 Lid with diaphragm 01
29 942920 Strainer 01
30 635540 Tank (includes: ref. 4, 5,
28 and 29) 01
31 105247 Trigger 01
32 908889 Trigger valve assembly
(includes ref. 31, 34, 35,
37, 38 and 39) 01
33 427062 Nozzle assembly
(includes: ref. 45,46 47) 01
34 996058 Trigger valve cap 01
35 105239 Trigger valve needle
assembly (includes: ref.
32 and 33) 01
36 048116 Dip tube with hose 01
37 909192 Trigger valve handle 01
38 920470 Lock 01
39 909283 Trigger valve body 01
40 909309 Cone packing 02
41 915744 Screw cap 02
42 904235 Tube 01
43 635276 Elbow with cone packing 01
44 100131 Extension (includes: ref.
40, 41, 42, and 43) 01
45 592139 Nozzle filter (40 mesh) 01
46 217174 Nozzle JD-12P 01
47 229724 Nozzle cap 01
15
