Jacto X-15 User Manual

TIGHTENING
- Hold firmly the strap buckle with one hand
and pull the handle downward with the other
hand.
LOOSING
- Hold firmly the strap buckle with one hand
and pull the strap backward with the other
hand.
Handle
Buckle
Buckle
11- ATTENTION
- Cover diaphragm
- Tank bottom
- Wand
- Trigger valve
After assembling the sprayer, fill the tank
with clean water and check for leakage on
the following parts:
Parallel
2
1
04
12- INVERT THE OPERATION SIDE
If it is necessary to invert the pumping lever side,
proceed as follows:
- Remove the bolt (1).
- Remove the pumping lever (2).
- Install the pumping lever on the other side.
NOTE: On inverting the position of the lever, do not
move the chamber so as not to install the lever
improperly.
- Tighten the bolt.
13
1
7
17
13
16
12
6
4
3
2
15
11
9
8
14
10
5
Item
Part no.
OPTIONAL ACCESSORIES FOR MANUAL KNAPSACK SPRAYERS
Use
01 761882 Application of non-selective herbicides close to the plants.
02 902296 To improve coverage of agrichemicals application on low plants.
03 907873 To improve coverage of agrichemicals application on lowplants.
04 831107 For applications on tangled crops or for longer range.
05 560409 Forgrowth-deterrent application on tobacco.
06 728139 Attachable to the original wand for longer range application on high plants.
07 100016 For application of agrichemicals and foliar fertilizers on
perennial crops doubling the output.
08 646901 Used for calibrating sprayer.
09 336115 Nozzle Y, for higher volume.
10 560391 Kit for tobacco with valve PJH.
11 452284 Wrench for general maintenance.
12 565648 Antidrip valve, attachable to wand of knapsack sprayers.
Mounted with JD-12P nozzle.
13 834382 X-15 basic repair kit. It contains: piston cup, diaphragm, trigger
valve cap and needle assembly.
14 838052 VPC (1 and 2 kgf/cm²) - Ensures constant pressure. Non-drip
system, Saves chemicals, reduces drift, Improves productivity
15 834390 Cone nozzles kit. It contains: discs 12 and 10, swirl core A
and P, nozzle cap, red adjustable nozzle, nozzle strainer.
16 831016 PJH basic repair kit. It contains: needle assembly, trigger valve
cap, cotter pins and piston cups.
17 838110 Kit Virginia with valve PJ-16.

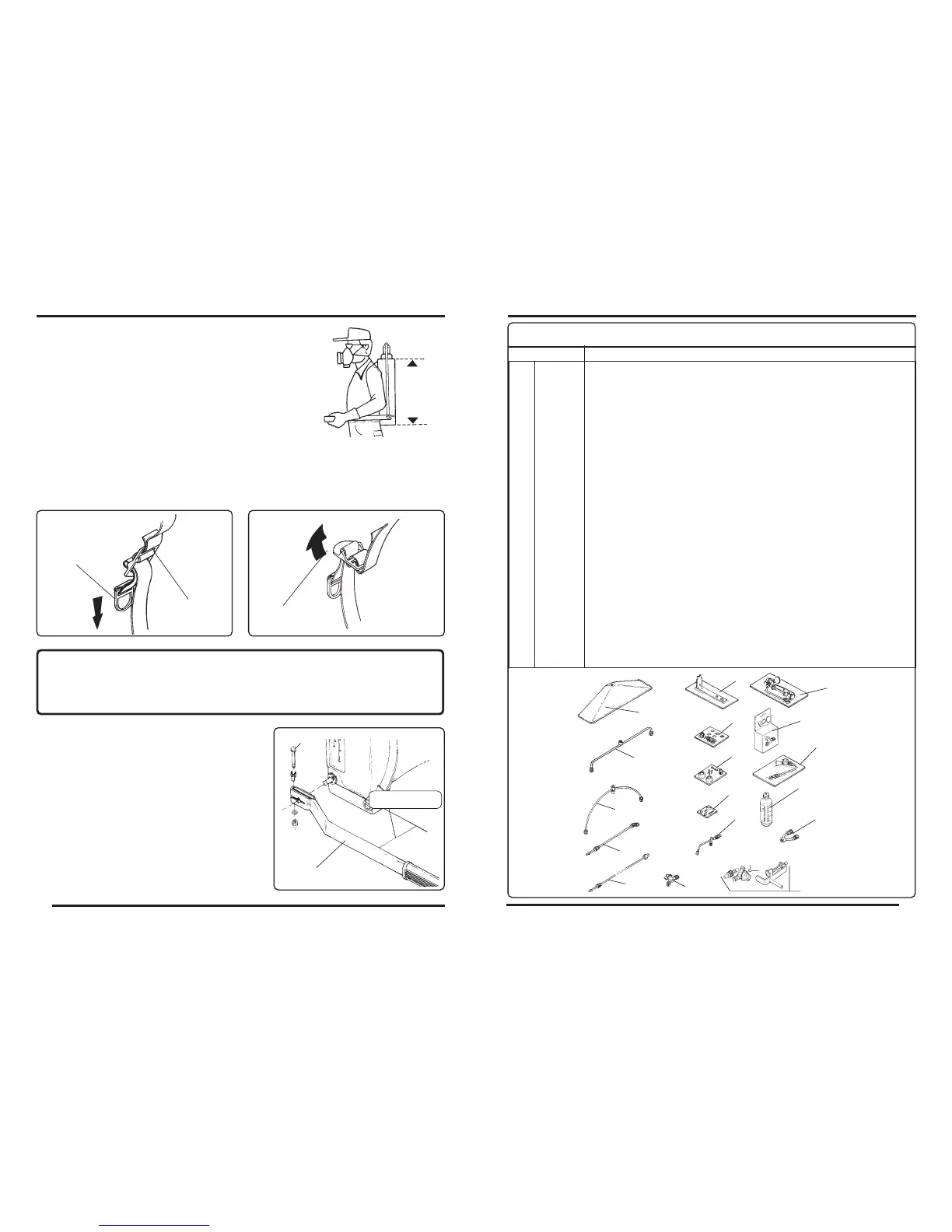

10- ADJUSTING THE STRAP
The tank is contoured for the operator comfort. The
shoulder straps can be quickly adjusted to properly
position the sprayer on the operator's back.
