Jacto X-15 - Install Lance Holders; Attach Lance to Trigger Valve; Attach Hose to Trigger Valve; Tighten Fastening Nut

14

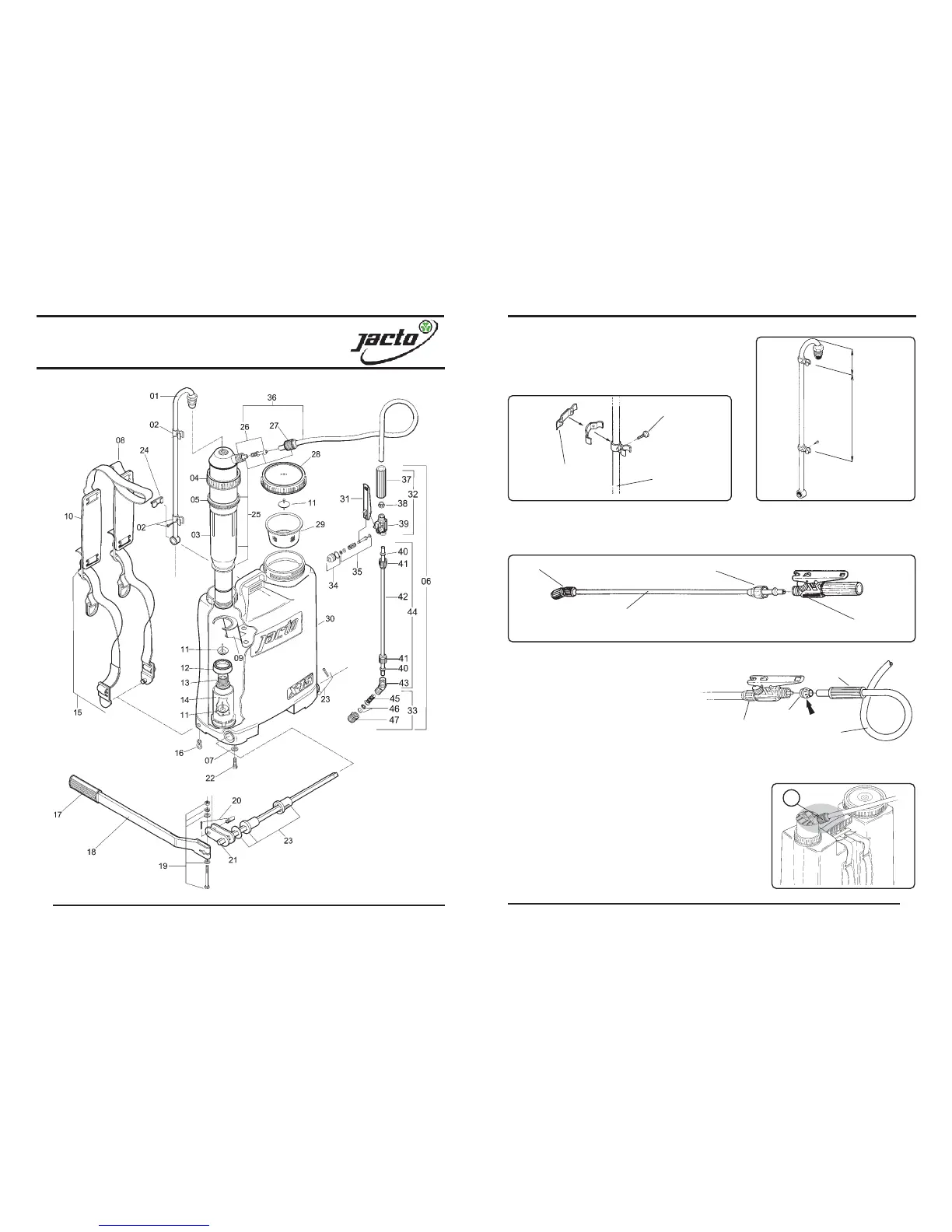

7- ATTACHING THE LANCE TO THE TRIGGER VALVE
- Push the lance into the trigger valve and secure it with the screw cap.
Lance
Trigger
valve
Elbow
ATTENTION:
Do not overtighten the screw cap.
- Secure the lance holders to the rod as shown
below.
6- INSTALLING THE LANCE HOLDERS
Holders
Screw
Rod
Screw cap
8- ATTACHING THE HOSE TO THE TRIGGER VALVE
- Unscrew the trigger valve handle.
- Remove the lock.
- Pass the hose through the lock and attach it
to the trigger valve.
- Screw the handle on the trigger
valve.
ATTENTION: Do not overtighten the handle.
Lock
Hose
Trigger
valve
Handle
03
60mm
300mm
PARTS LIST
9- TIGHTENING THE FASTENING NUT.
- Before using the equipament, tighten the fastening nut (A).
Important: This operation must be carried out with the
hand. Never use any type of tool.
A
