J-200 Series

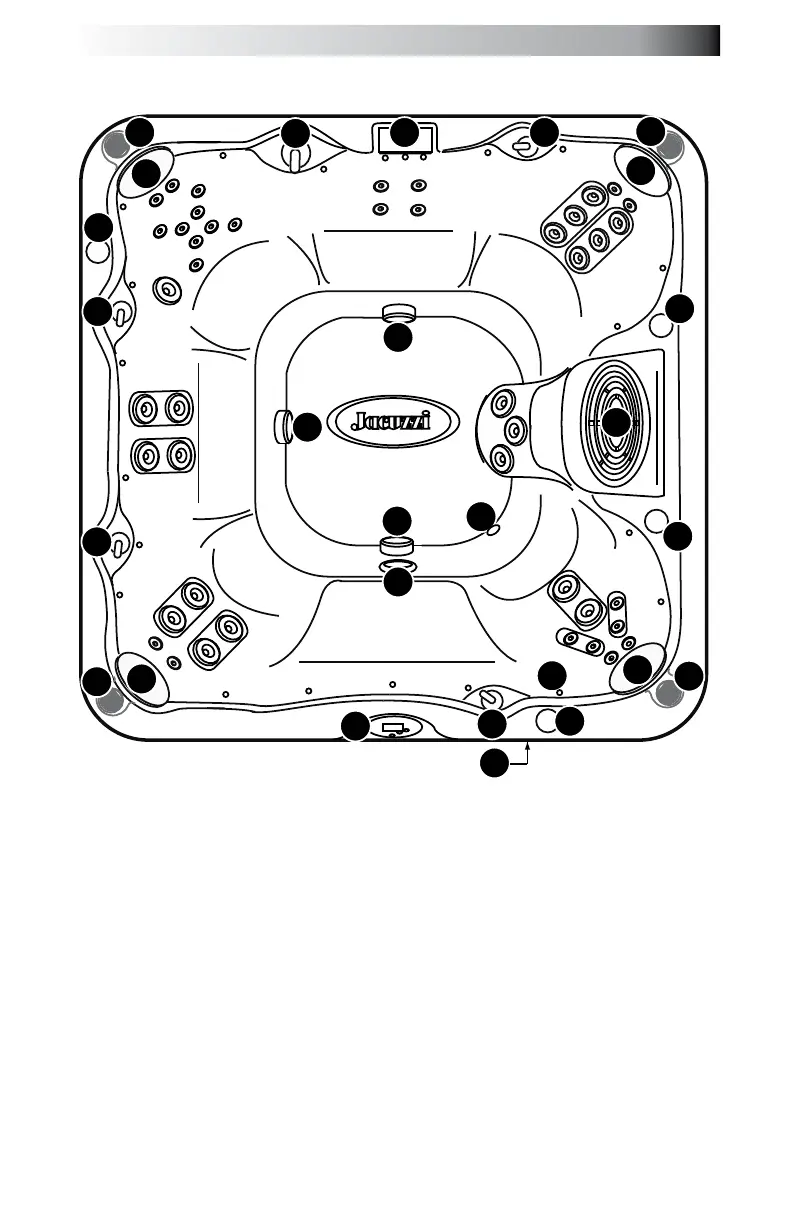

9.2 General Spa Features and Controls
J-280 model illustrated -
Jet locations and features will vary by model.
1
6b
2
11
3
3
3
4
11
5
8 3
4
4
4
10
6a
9
7
7
7
11
11
2
2
2
12
Control Panel1.
Headrest Pillows (4 ea.)2.
Air Controls (4 ea.)3.
Cup Holders (4 ea.)4.
Massage Selector (1 ea.)5.
Lighting System Options:6.
• Standard Underwater light system
includes incandescent light (6a)
• Optional LED lighting system
includes LED footwell light (6a) and
multiple LED accents lights (6b).
Suction Fittings and Filters 7.
(Filters protect massage selectors
from debris entrapment/damage.
Filters require periodic cleaning.)
Waterfall with flow rate control 8.
lever.
Heater Return/Gravity Drain9.
Filter lid with one underlying filter 10.
cartridge.
Optional audio system speakers 11.
(4 ea.)
Optional audio system AM/FM/CD 12.
stereo deck.
SpecicationsSubjecttoChangeWithoutNotice.
