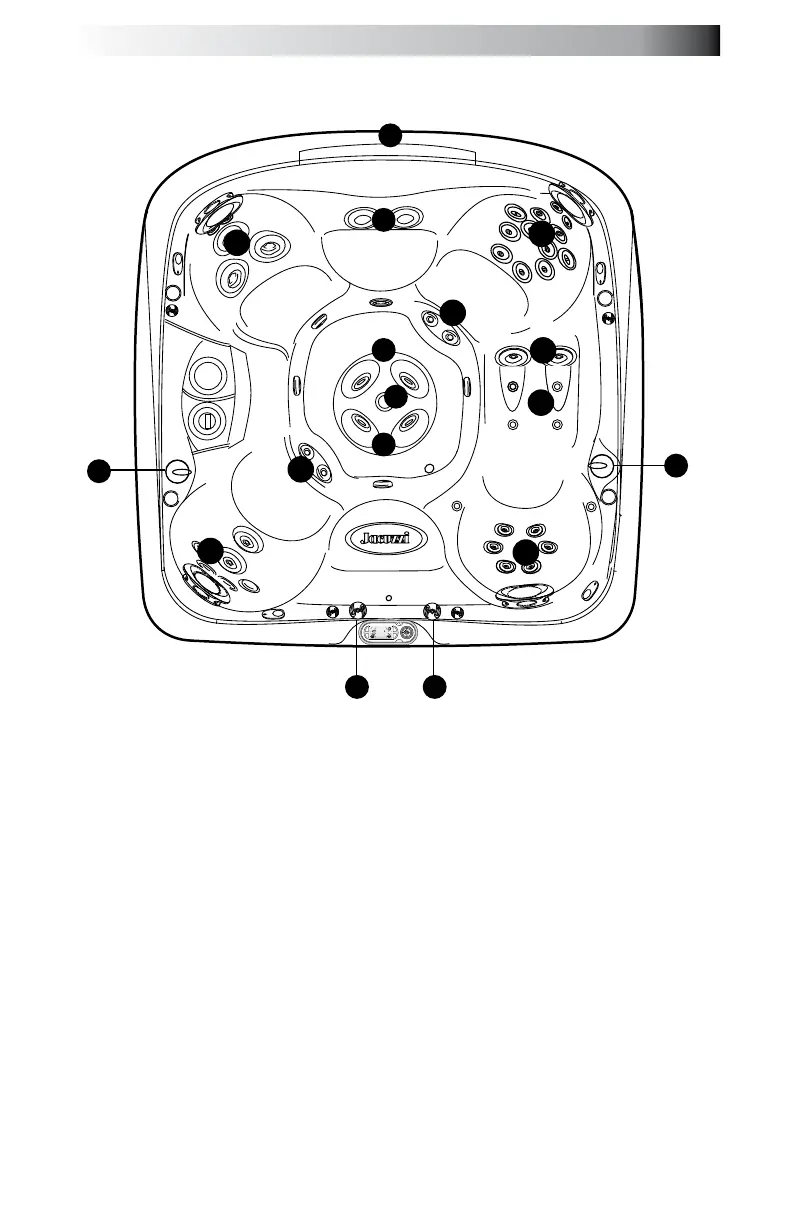

9.2 J-480 Massage/Waterfall Selector Diagram
98
1a
1a
1b
2b
2b
2a
2a
2a
1
3
3
5
5
5
2
4
4
Massage Selectors (1-2)
• Massageselector1divertsoutputbetweenjetsgroups1a-1b.
• Massageselector2divertsoutputbetweenjetgroups2a-2b.
Waterfall Selector (3)
• Waterfallselector3controlscirculationpumpoutputtowaterfalls.
Mass Aspiration Jet Flow Control Valve (4)
• Valve4controlsoutputtofootwellIXJet.
Jets Without Massage Selector Controls (5)
• Jets5arealwaysonwhenjetspumpisrunning.
