Jacuzzi J-400 Series

Page 32
J-400 Series

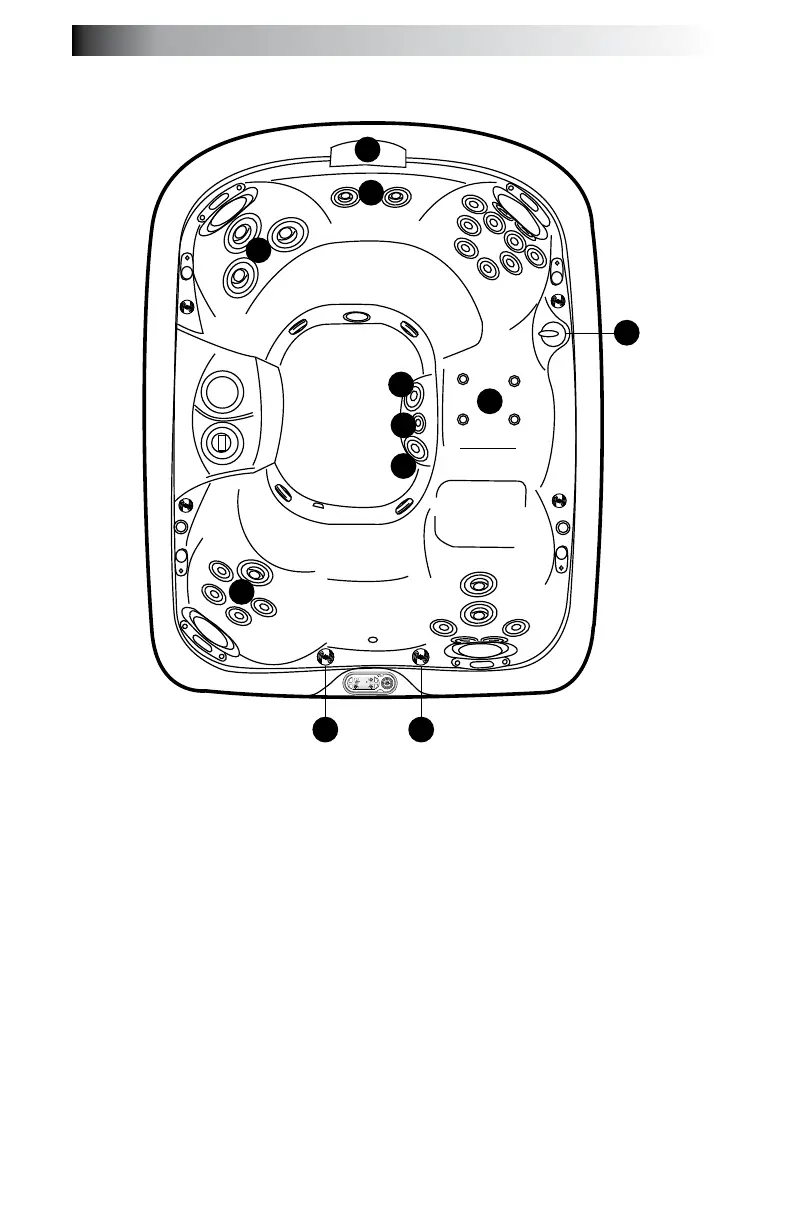

9.11 J-460 Massage/Waterfall Selector Diagram
98
1
4
4
1a
4
4
4
3
3 2
2
Massage Selector (1)
• Massageselector1divertsoutputbetweenjetsgroups1a-1b.
Mass Aspiration Jet Flow Control Valve (2)
• Valve2controlsoutputtofootwellIXJet.
Waterfall Selector (3)
• Waterfallselector3controlscirculationpumpoutputtowaterfall.
Jets Without Massage Selector Controls (4)
• Jets4arealwaysonwhenjetsisrunning.
