INST 396 Jacuzzi® J-HN Series Heater V12-16
5

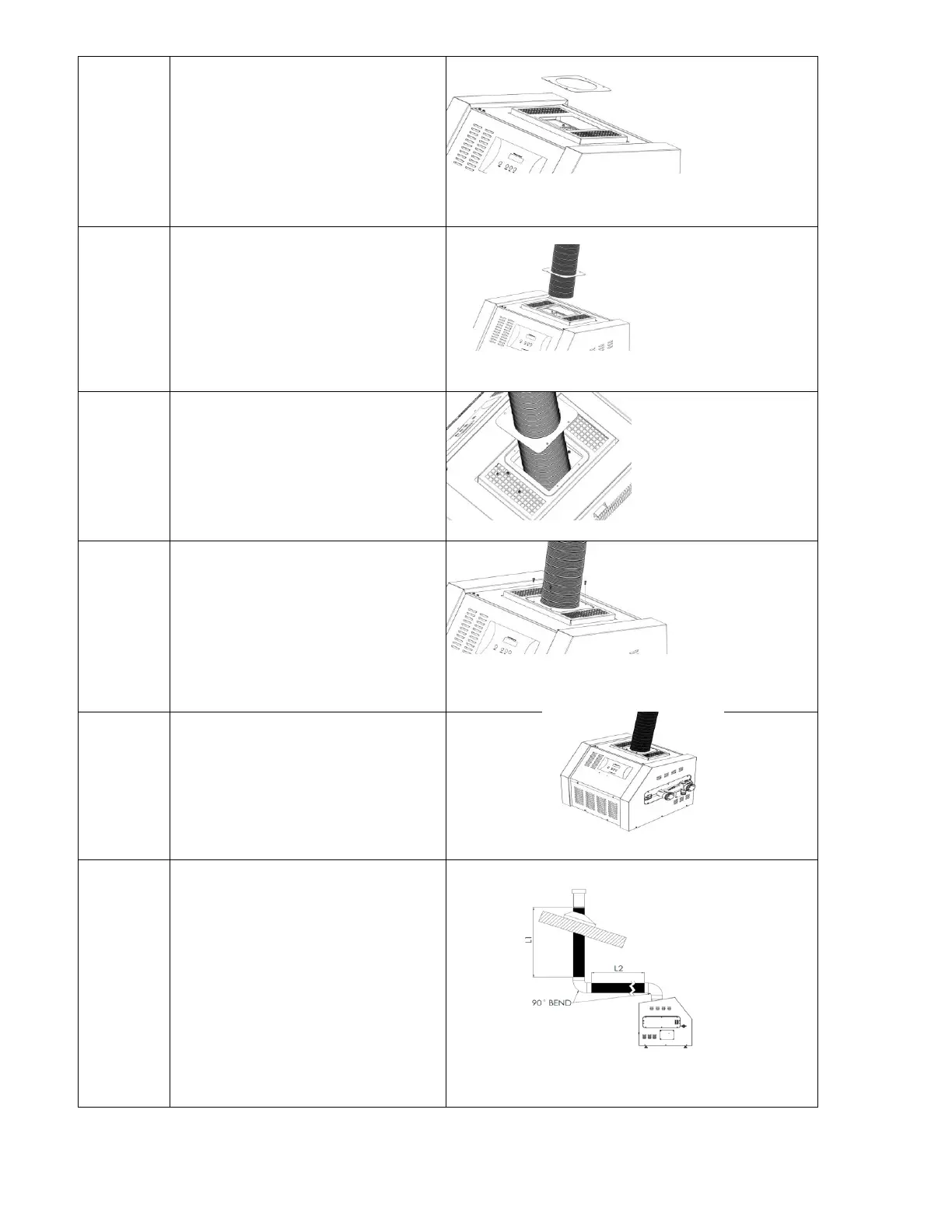

Take the Flue Cover Indoor Insert.
6
Take the Flue and FEED it through the
Indoor Insert.
7
Fit flue pipe to appliance (non-sleeved
end of flue). Fit by sliding it over the flue
connection spigot as far as possible.
8
Slide Indoor Insert Panel down the flue
and Screw into position with 4 x Screws.
9
Pool Heater – Indoor Model.
10
Form extra bends where required. Care
should be taken when forming bends to not
create a low point where condensation may
collect. Condensation should be able to
drain to the heater or out the flue outlet.
The flue should be bracketed at intervals of 1
M using standard 5” (125 mm) standoff
brackets available at most plumbing suppliers.
