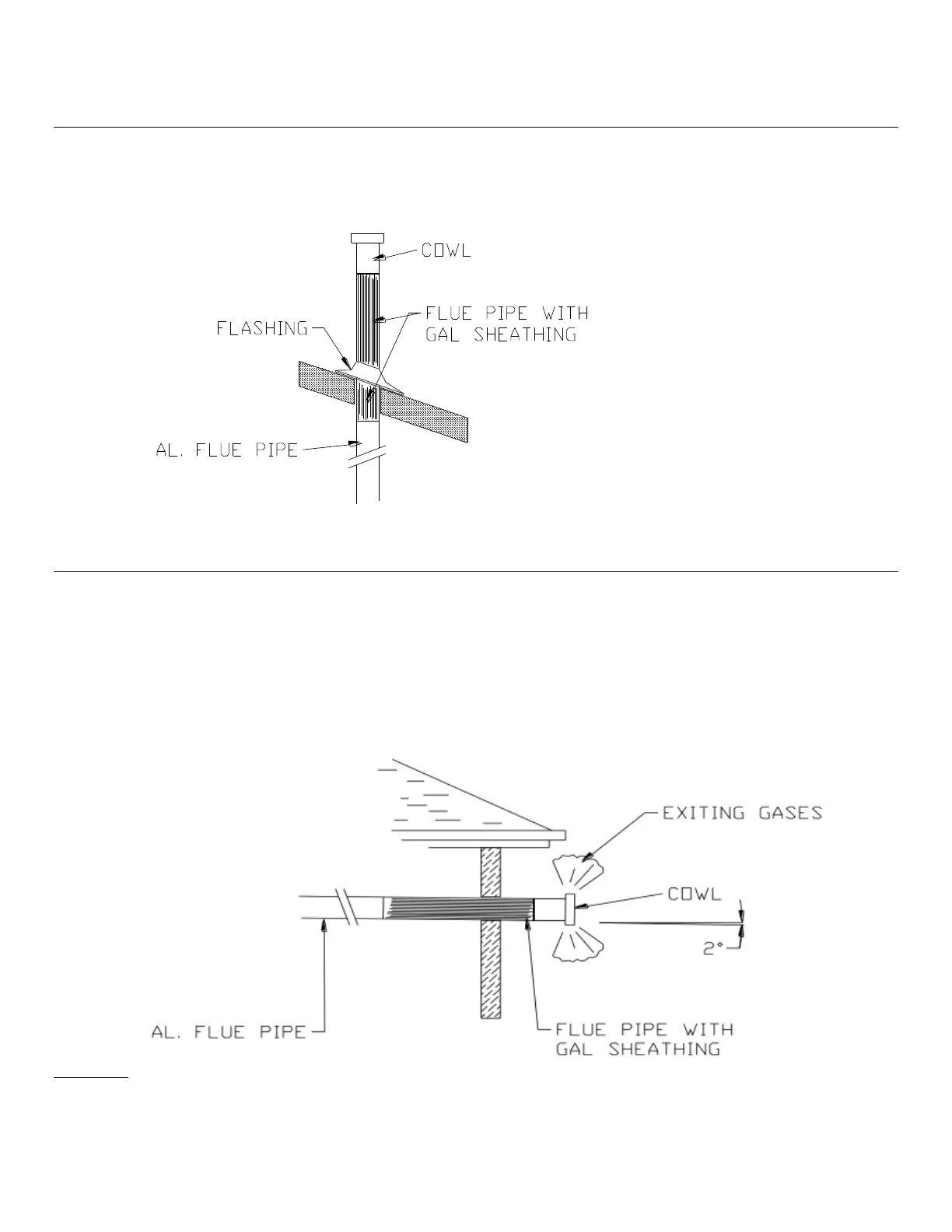

ROOFTOP TERMINATIONS
All flue exiting the roof must be shielded with the gal cover. Extra lengths of gal can be supplied. Decktite fittings / flashings must
be attached to the galvanized flue cover. Brace flue in high wind applications.
Locate flue cowl onto reduced end of the gal outer covering / flue pipe. Attach with rivets / screws to hold into place.
WALL TERMINATIONS
Ensure location is suitable as flue gases exit all around cowl and may blow back onto walls, eaves and features causing discolouration
or mould and moisture issues. Condensation will occur around the flue exit area and condensation may drip from the flue outlet.
All flues exiting the wall must be shielded with the gal cover. Extra lengths of gal can be supplied. Decktite fittings / flashings / wall
exiting covers must be attached to the galvanized flue cover.
For long extensions of flue exiting the wall bracing may be required in high wind applications.
Locate flue cowl onto reduced end of the gal outer covering / flue pipe. Attach with rivets / screws to hold into place. Ensure a
drain hole in the cowl is facing down.
The flue pipe must slope slightly towards the cowl for the last horizontal run (approx 2º) to allow condensation to drain.
